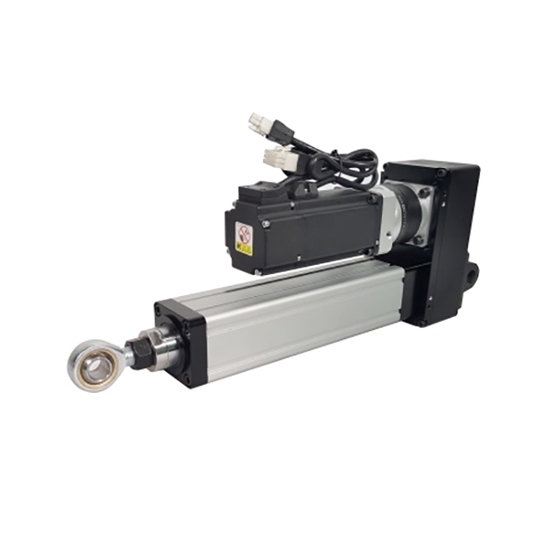

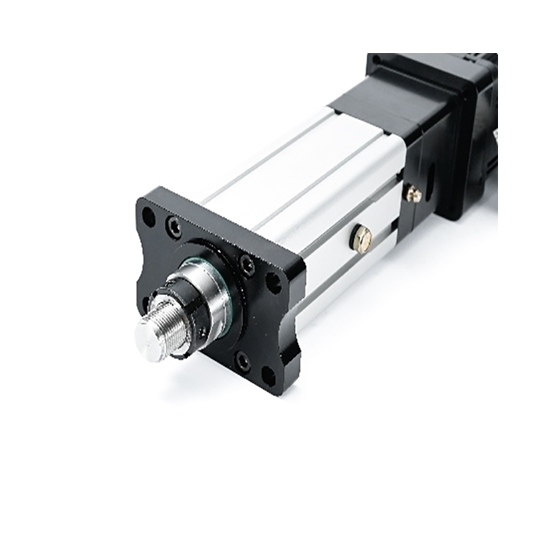

400W Linear Servo Motor, 1.27Nm, 1.02 KN, 800mm

0 reviews • Write a review

from

$1,392.92

Ex Tax: $1,392.92

Stock: In Stock
Model: RDDLZ-LCM-400W
Weight: 1.00
SKU: RDDLZ-LCM-400W

Available Options

Short Description

Installation Method

Structure Type

Rod End Connection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

400W linear servo actuator with good price, which features rated speed 3000 rpm, max. speed 5000 rpm, rated linear speed 500mm/ s, 800mm max. stroke. Linear cylinder has the advantages of low noise, energy saving, clean, high rigidity, impact resistance, long service life.

Specification

Model	RDDLZ-EDA060-400W
Rated power	400W
Rated voltage	220V
Structure type	In-line/ Reentrant
Lead	10mm
Reduction ratio	1:1
Rated speed	3000 rpm
Max. speed	5000 rpm
Rated torque	1.27 Nm
Rated thrust	0.68 kN
Rated linear speed	500mm/ s
Max. thrust	1.02 kN
Max. linear speed	833.33mm/ s
Max. stroke	800mm
Diameter	16mm
Inductive switch	Magnetic induction, PNP, 2NO (Please contact us for other switches)
Motor brand	Japan
Pressure sensor	Not include (50kg/100kg/200kg/300kg/400kg/500kg/600kg/800kg/900kg/1T/2T can be customized, please contact us if necessary)
Weight	42kg
Certificate	CE
Warranty	12 months

Dimension (unit=mm)

In-line

Reentrant

Details

Tips: What is Linear Servo Motor?

The linear servo motor is a modular product that integrates the servo motor and the lead screw. It converts the rotary motion of the servo motor into linear motion. At the same time, it transforms the best advantages of the servo motor-precise speed control, precise speed control, and precise torque control. Precise speed control, precise position control, precise thrust control.
