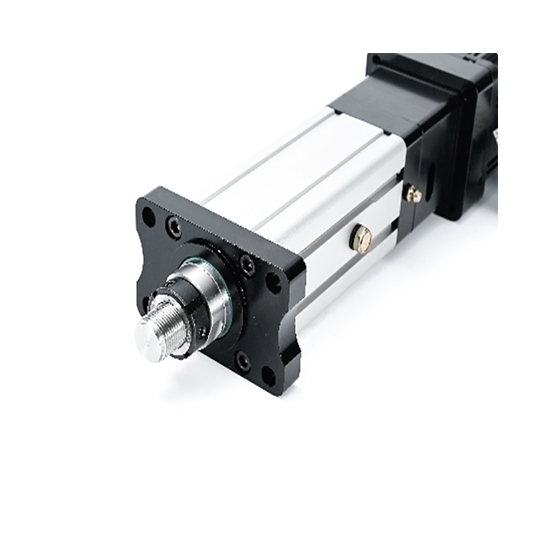

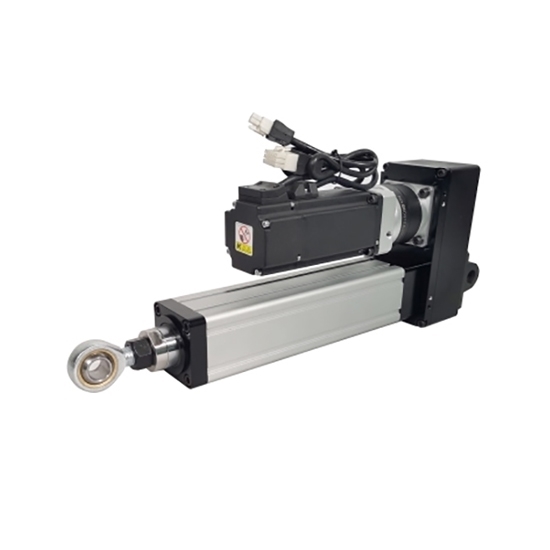

2hp (1.5kW) Linear Servo Motor, 7.16Nm, 24.3kN, 1500mm

0 reviews • Write a review

from

$3,396.46

Ex Tax: $3,396.46

Stock: In Stock
Model: RDDLZ-SERVO-L1500
Weight: 1.00
SKU: RDDLZ-SERVO-L1500

Available Options

Short Description

Installation Method

Structure Type

Rod End Connection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Linear servo motor with cheap price, high speed linear servo features rated voltage 220V, diameter 25mm, 2000 rpm rated speed, maximun speed up to 3000 rpm, in-line/ reentrant two connections can be chosen.

Specification

Model	RDDLZ-EDA080-L1500W
Rated power	2hp (1.5KW)
Rated voltage	220V
Structure type	In-line/ Reentrant
Lead	10mm
Reduction ratio	1:1
Rated speed	2000 rpm
Max. speed	3000 rpm
Rated torque	7.16 Nm
Rated thrust	16.2 kN
Rated linear speed	172.67mm/s
Max. thrust	24.3 kN
Max. linear speed	283.78mm/s
Max. stroke	1500mm
Diameter	25mm
Inductive switch	Magnetic induction, PNP, 2NO (Please contact us for other switches)
Motor brand	Japan
Pressure sensor	Not include (50kg/100kg/200kg/300kg/400kg/500kg/600kg/800kg/900kg/1T/2T can be customized, please contact us if necessary)
Weight	96kg
Certificate	CE
Warranty	12 months

Dimension (unit=mm)

In-line

Reentrant

Details

Tips: Features of Linear Servo Motor.

High positioning accuracy: the linear servo motor cylinder with ball screw can realize accurate positioning of about 0.01mm through servo control. It has high positioning accuracy and is suitable for applications with high accuracy requirements. The actuator cylinde can achieve quite high positioning accuracy in the semi-closed loop, while the hydraulic cylinder and the air cylinder must use a fully closed loop control system to achieve the same positioning accuracy.
Simple structure, small space occupation and convenient maintenance. The actuator cylinde is mainly composed of a motor and a nut and screw mechanism. The mechanism is simple, small in size, and does not take up too much working space. Because of its simple structure, it is easy to find the cause of the failure in the event of a failure, and the usual maintenance is also very convenient.
