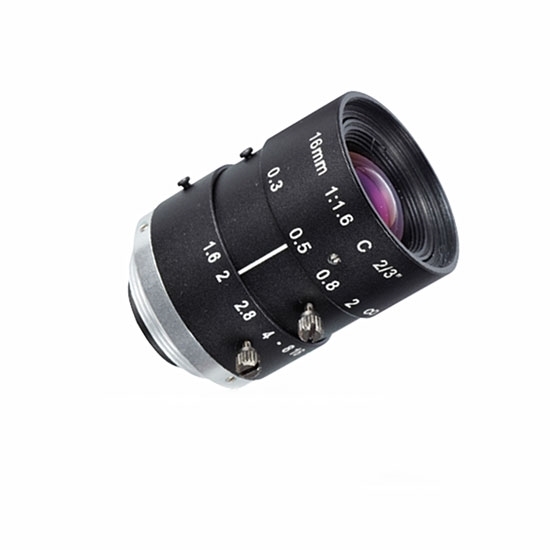

Industrial Camera Lens, Fixed Focus, 2/3", 16mm, F/1.6, C-Mount

0 reviews • Write a review

from

$328.57

Ex Tax: $328.57

Stock: In Stock
Model: RDDLZ-LEN-1616
Weight: 1.00
SKU: RDDLZ-LEN-1616

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Indutrial camera manual iris fixed focus lens with focal length 16.0mm and aperture F/1.6 is high cost-performance, and an ideal choice to help users capture realistic and clear images in various industrial detections, intelligent transportation and machine vision.

Lens Specification

Model		LEM-1616-MP5
Sensor		2/3 CCD/CMOS
Image Format (HxV, D)		8.8×6.6, 11
Format/Image Size		2/3"
Focal Length/EFL		16.0mm
F-number/Aperture		F/1.6
Field of View (FOV)	/	2/3"	1/1.8"
	Diagonal (D)	37°	30°
	Horizontal (H)	29.5°	24.5°
	Vertical (V)	22.6°	18°
Back Focal Length		9.03mm
Lens Effective Diameter	Front	∅19.8mm
	Back	∅11.1mm
Lens Construction		9-7
TV Distortion		< -0.5%
Resolution		5 Mega Pixel
Relative Illumination		> 80%
Iris Type		Manual
Max Chief Ray Angle		15.3°
MOD		0.2m
Mount		C-Mount / 1-32UNF
TTL		57.02mm
Dimension (∅×L)		∅29×41.5mm
Weight		110g

Industrial Camera Lens Dimension

Tips: Why do you need a industrial camera lens?

The industrial camera lens is equivalent to the role of the pinhole in the pinhole imaging. But what are they differences? On the one hand, the light transmitting aperture of the lens is many times larger than the pinhole, and it can receive more light in the same time, so that the industrial camera can obtain proper exposure in a short time (milliseconds to seconds). On the other hand, the industrial lens can focus the beam and produce a sharper image on the camera than pinhole imaging.

Fixed focus lenses are commonly used in machine vision, and the aperture is manually adjusted and generally does not allow automatic adjustment. The industrial camera lens has two rings - focus ring and aperture ring, to prevent accidental touch. Two rings of industrial lens have locking screws. Please note that the focus ring is not used to adjust the focus, but to adjust the image distance to ensure that the clear image falls on the focal plane.
