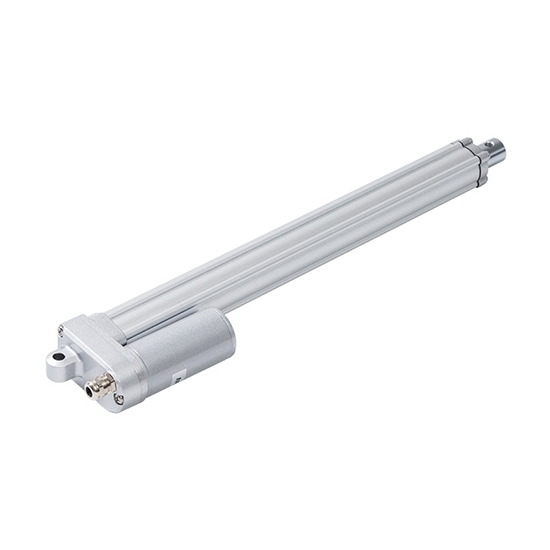

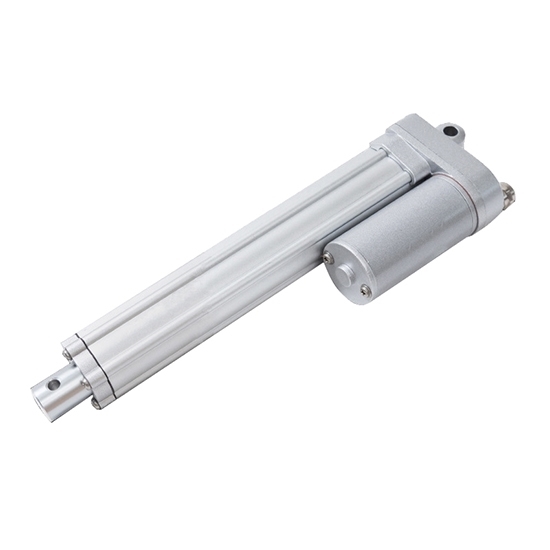

Miniature Linear Actuator, 12V/24V, 1000N, 200mm Stroke

0 reviews • Write a review

from

$132.89

Ex Tax: $132.89

Stock: In Stock
Model: RDDLZ-LACTU-1000
Weight: 1.00
SKU: RDDLZ-LACTU-1000

Available Options

Short Description

Voltage (V)

Load Capacity

Stroke

Feedback Signal

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Linear actuators are electric actuators which create motion in a straight line. The provided actuator is mini and compact, max load up to 1000N in pull/push, 12V/24V DC four voltage options are available, very convenient to install. Home, electrical and mechanical, chemical, sanitary ware, leisure and other fields are widely used.

Miniature Linear Actuator Specifications

Model	RDDLZ-DJ806
Max. Dynamic Load	1000N
Max. Self-locking	1500N
Input Voltage	12V DC, 24V DC, 36V DC, 48V DC (Option)
Rated Power	0.2kW
Rated Speed	4000 rpm
Lead Screw	Acme Screw
Operation Mode	Electrical
Stroke Range	50-1000mm
Duty Cycle	25%
Motor Type	Brushed DC
Application	Industrial
Operational Temp.	-10℃ to 65℃
Operating Noise	≤65 dB
Weather Protection	IP66
Overload Protection	None (standard)
Position Feedback	None (standard), Endstop signal, Potentiometer for optional
Weight	2kg

Linear Actuator Load and Speed Selection

Code	Max. Dynamic Load	Max. Self-locking	Reduction Ratio	Pitch	Speed±10% (mm/s)		Max.stroke without potentiometer
Code	(N)	(N)	---	(mm)	No Load	Full Load	(mm)
A	200	300	5:1	3.17	40	22	1000
B	100	150	5:1	5	60	45	1000
C	50	100	5:1	7.5	80	65	1000
D	600	900	20:1	3.17	10.5	7	1000
E	500	800	20:1	5	16.5	12	1000
F	250	400	20:1	7.5	25	20	1000
G	1000	1500	30:1	3.17	7.2	5	1000
H	700	1000	30:1	5	11.5	8.5	1000
I	400	600	30:1	7.5	17	13.5	1000
J	1200	1700	40:1	3.17	5.5	4	1000
K	800	1200	40:1	5	8.5	6.5	1000
L	450	700	40:1	7.5	13	10	1000

Note:

Measurements are made with actuators in connection with stable power supplies and ambient temperature at 20°C.
For example, when real load is 800N, choosing code (K) is fine. Of course, you can also choose (G) or (J) which come with more load buffer, higher safety factor and longer product service time.
There are many factors affecting the "customizable maximum stroke", such as load, speed, force direction, etc., so the real application scenarios should be considered. If the parameters you required are not listed, please contact our sales engineers.

Linear Actuator Standard Dimension (mm)

Front Mount. Ends	Rear Mount. Ends	A	B	S	L
F01	R01	Sideway cable outlet	Bottom cable outlet	Stroke	Install Length
A≥S+105
S=50~299mm, B+0mm
S=300~499mm, B+15mm
S≥500mm, B+25mm
L≥A+B

12V/24V/36V/48V Linear Actuator Current-Load Curve

Limit Switches without signal feedback

Power Wire Coding
/	Brown	Red
Extend	-	+
Retract	+	-

Endstop Signal

Power Wire Coding
/	Brown	Blue
Extend	-	+
Retract	+	-
Signal Wire Coding
Black	Extend / Retract limit, N.O.
Red	Extend / Retract limit, N.C.
Yellow	Extend limit. COM.
White	Retract limit. COM.

Potentiometer

Code	Max. Stroke	Resistance Value per mm
A, D, G, J	200 mm	0.047 KΩ
B, E, H, K	300 mm	0.030 KΩ
C, F, I, L	450 mm	0.020 KΩ

5 tips for checking and repairing linear actuator

In repairing the miniature linear actuator, please take notes to use the sharp utensils for disassembly and assembly. Since the inner part of the linear actuator has many precised electronic components, it might be damaged easily.
In the process of repairing the miniature linear actuator, it is required to firstly remove the circuit module for mechanical dismounting of the component. It can protect the electronic components which are easily to be damaged as well.
Since miniature linear actuator adopts very fine components, which are easily to get deformed or damaged, so please avoid using the brute force in repairing, which will result in unrecoverable damages.
Before repairing, it is firstly required to read the product instruction manual, familiarize with the shapes and applications of various components, and conduct fault analysis. The maintenance and repairing shall be conducted in the non-magnetic and dry environment.
After the maintenance, it shall be assembled, ensuring that all circuits are connected accurately, avoiding short circuit, power leakage and other phenomena.
