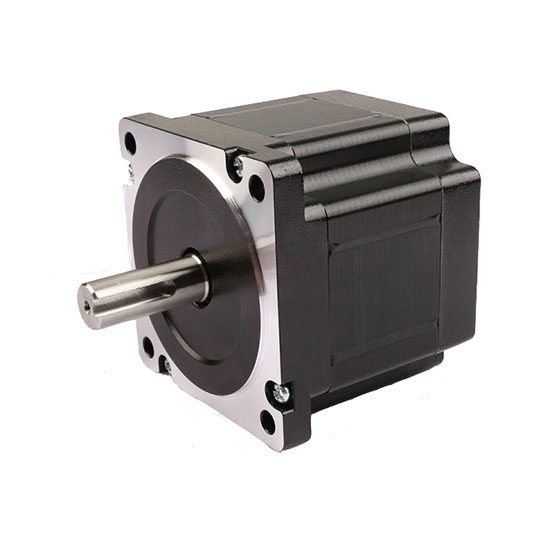

2-phase Nema 34 Stepper Motor, 4A, 1.8 Degree 4 Wires

0 reviews • Write a review

from

$185.38

Ex Tax: $185.38

Stock: In Stock
Model: RDDLZ-STEP-21603404
Weight: 1.00
SKU: RDDLZ-STEP-21603404

Available Options

Short Description

Input Pulse Voltage

With Matched Driver

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 phase Nema 34 bipolar stepper motor which has 1.8 degree per step for smooth motion and a nice holding torque, 4 wires, specified to have a maximum current of 4A, direct sale by manufacturer.

Specifications

Basics	Model	RDDLZ2160-4004A
	Matched the Driver Model	RDDLZDSP86 (Click it to see more info)
	Step Angle	1.8°
	Length	160mm
	Weight	5.5kg
	Current	4A
	Resistance	1.4Ω
	Holding Torque	12Nm
	Motor Leads	4
	Rotor Inertia	4800g-cm²
Technical parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃Max. (rated current, 2 phase on)
	Ambient Temperature	-10℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	1Min. 500VAC·5mA
	Shaft Radial Play	0.06Max. 450g
	Shaft Axial Play	0.08Max. 450g

Dimension

Motor Connection

Tips: Why the stepper motor can be widely applied into the robot?
The advantages over using stepper motor for robot design:

As for the motors with the same performance, the stepper motor is relatively cheaper.
The stepper motor has longer service life than brushless electric machine, etc..
It can accurately positioned without slipping or overshoot as digital motor.
Drive module isn’t linear amplifier, which means fewer cooling fins, higher efficiency and higher reliability.
Drive module is cheaper than linear amplifier.
There is no expensive electronic component controlled by servo for the signal directly originates from MPU.
Software is safe. As for the step-by-step pulse about board problem, if the software cannot work or is collapsed, the motor will be automatically ceased.
As for the electronic driver fault-safe, in case of being locked due to the fault in amplifier, the motor cannot run. The motor still can run and may rotate at full speed in case of faults in servo driver.
Whether the velocity control is accurate and repeatable (crystal control).
If necessary, stepper motor rotates extremely slowly.

Due to the low-velocity torque device of stepper motor, the transmission is shorter, which means higher reliability, efficiency, smaller gap and lower cost. Just thanks to this feature, the robot is ideal for the requirement of most robots for short-distance motion is cycle period from acceleration to the low point.
