3 Phase Nema 42 Stepper Motor, 5A, 1.2 Degree, 6 Wires

0 reviews • Write a review

from

$292.62

Ex Tax: $292.62

Stock: In Stock
Model: RDDLZ-STEP-31504205
Weight: 1.00
SKU: RDDLZ-STEP-31504205

Available Options

Short Description

Input Pulse Voltage

With Matched Driver

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

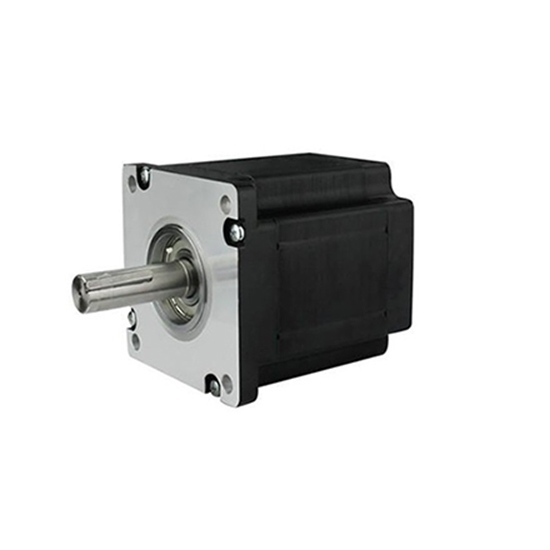

The Nema 42 stepper motor with 1.2 degree step angle, 3 phase 6 wires, high holding torque of 22Nm, manufacturer direct sale.

Specifications

Basics	Model	RDDLZ3150-5006A
	Matched the Driver Model	RDDLZDSP86 (Click it to see more info)
	Step Angle	1.2°
	Length	150mm
	Weight	8.5kg
	Current	5A
	Resistance	1.2Ω
	Holding Torque	22Nm
	Motor Leads	6
	Rotor Inertia	11000g-cm²
Technical parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃Max. (rated current, 2 phase on)
	Ambient Temperature	-10℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	1Min. 500VAC·5mA
	Shaft Radial Play	0.06Max. 450g
	Shaft Axial Play	0.08Max. 450g

Dimension

Wiring Diagram

Tips: Solutions to the power interference of stepper motor

At many occasions, due to the high current and voltage of the stepper motor, e.g.: For some stepper motor, the maximum current: 8A and voltage: 325V, and magnetic shielding of its shell is not implemented with aluminum alloy shell, the interference in high-sensitive receiver system is caused, so that it cannot work normally and power interference is also caused. Especially the frequency is high, normal communication cannot be realized on SCM and upper computer of the control system. If serious, SCM will be halted, then the difficulty will be brought to the normal use. Therefore, the interference should be solved.
Solutions to power interference of stepper motor are as below:

Install power filter to reduce the contamination of AC power.
Reduce the the external interference in power line with the shielded line or the interference of power line in external world.
Based on the principle of "single-point-earthing", earth the grounding of power filter and stepper driver PE (the baseboard of driver and chassis should be insulated.), control pulse and direction pulse DIR-outgoing lines of short circuit, motor earthing line, cable protecting cover between driver and motor and shielded wire of driver to the earthing rod on wall of chassis, and good contact should be realized.
Lengthen the distance between control line, power line (L and N) and motor drive line (U, V and W) to avoid crossing, e.g. when dealing with the driver installation site of two drivers of the same chassis in the double-shaft system, put the nameplate of one driver forward and that of the other backward, and shorten the leads as far as possible when making structural arrangement.
