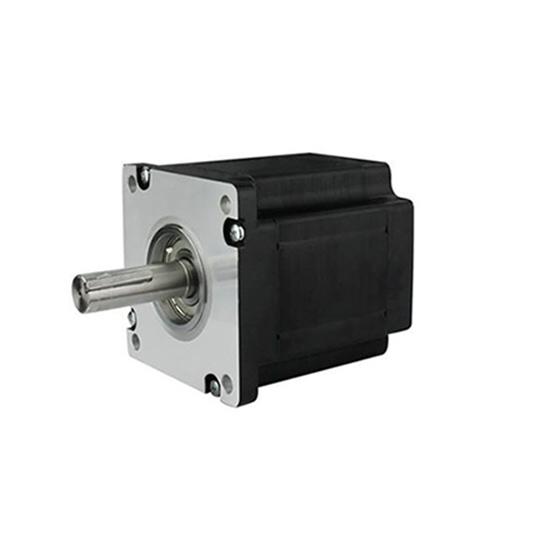

High Torque Nema 42 Stepper Motor, 6A, 1.2 Degree, 3 Phase

0 reviews • Write a review

from

$401.35

Ex Tax: $401.35

Stock: In Stock
Model: RDDLZ-STEP-32004206
Weight: 1.00
SKU: RDDLZ-STEP-32004206

Available Options

Short Description

Input Pulse Voltage

With Matched Driver

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The 6A, 3 phase NEMA 42 stepper motor is a 6-wire stepper motor which has 1.2° per step for smooth motion and a nice holding torque.

Specifications

Basics	Model	RDDLZ3200-6006A
	Matched the Driver Model	RDDLZDSP86 (Click it to see more info)
	Step Angle	1.2°
	Length	200mm
	Weight	11.8kg
	Current	6A
	Resistance	1.7Ω
	Holding Torque	28Nm
	Motor Leads	6
	Rotor Inertia	15000g-cm²
Technical parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃Max. (rated current, 2 phase on)
	Ambient Temperature	-10℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	1Min. 500VAC·5mA
	Shaft Radial Play	0.06Max. 450g
	Shaft Axial Play	0.08Max. 450g

Dimension

Wiring Diagram

Tips: Differences between unipolar and bipolar stepper motors

Bipolar stepper motor indicates the stepper motor with 2 coils and 4 lines. The current can flow in forward and reverse direction in two coils, so called bipolarity.
Unipolar stepper motor indicates the stepper motor with 2 coils and 5 or 6 lines. That is, one tap is increased in the middle of one coil. 5 lines can be seen as 6 ones. The two intermediate line of two coils can be connected. For there is tap in the middle of one coil, the current can flow towards different direction along the half way in one coil, but half of the motor coil is just used.
Bipolar motor features high application efficiency for the current flows in the forward and reverse directions of one coil. As for the unipolar stepper motor, the efficiency is low for half of coil is just used with most of the time. However, in terms of strict cost requirement, the unipolar motor is widely applied.
