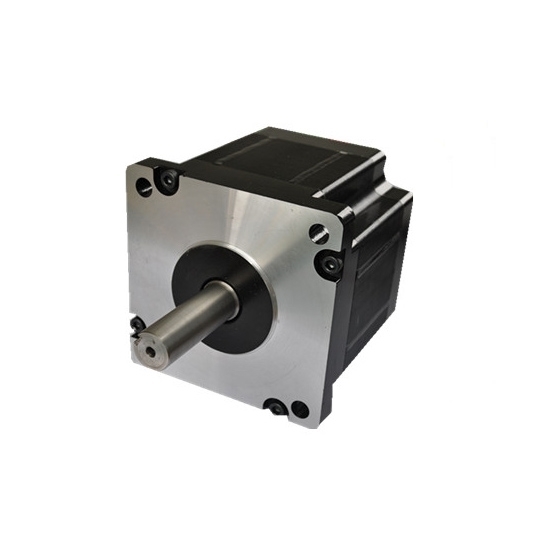

Nema 42 Bipolar Stepper Motor, 6A, 2 Phase 4 Wires

0 reviews • Write a review

from

$300.31

Ex Tax: $300.31

Stock: In Stock
Model: RDDLZ-STEP-21504206
Weight: 1.00
SKU: RDDLZ-STEP-21504206

Available Options

Short Description

Input Pulse Voltage

With Matched Driver

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

6A, 2 phase NEMA 42 bipolar stepper motor, 4-wire, with 1.8° per step, have a holding torque of 20Nm, manufacturer direct sale.

Specifications

Basics	Model	RDDLZ2150-6004A
	Matched the Driver Model	RDDLZDSP86 (Click it to see more info)
	Step Angle	1.8°
	Length	150mm
	Weight	8.4kg
	Current	6A
	Resistance	0.65Ω
	Holding Torque	20Nm
	Motor Leads	4
	Rotor Inertia	10900g-cm²
	Shaft Diameter	18mm or 19mm
Technical parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃Max. (rated current, 2 phase on)
	Ambient Temperature	-10℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	1Min. 500VAC·5mA
	Shaft Radial Play	0.06Max. 450g
	Shaft Axial Play	0.08Max. 450g

Shaft Diameter 18mm Dimension

Shaft Diameter 19mm Dimension

Motor Connection

Note：We default delivery 18mm shaft diameter specifications of the motor, if you need 19mm shaft diameter, please contact us in advance.

Tips: Descriptions of rated current and drive voltage of stepper motor

Rated current of stepper motor indicates current peak. The actual working current is not always driven by the rated current. In case that the the capability of the motor to drive the load exceeds the actual load level, the working current can be appropriately reduced to reduce the power dissipation and heating value. However, under the circumstance that the large load should be driven with small-size motor, when ensuring the heating quantity of the motor is within the tolerable range, the rated current can be appropriately reduced. Generally, the motor works or heat dissipation condition is very good. For example, under the situation that the fan is working or the motor swings back and forth, the actual working current of the motor is also smaller than the set one.
The phase voltage indicated on the specification of motor. The drive voltage indicated on the specification is also only the recommended value, so it should not be certainly used this way. In case that the working velocity is very low, the lower drive voltage also can be used. Reversely, to have the working torque of the motor as large as possible when the motor rotates at high velocity, the drive voltage can be increased. Of course, the premise is constant current drive. In case that the recommended voltage is higher a lot than the drive voltage, the set working current can be reduced appropriately to control the heating quantity of the stepper motor.
