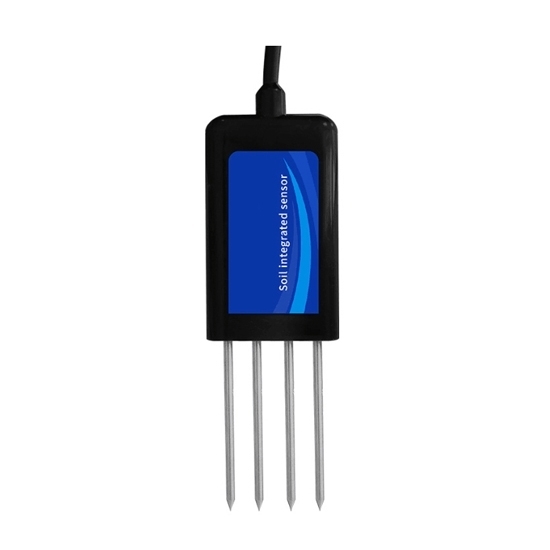

Soil Moisture And Temperature Sensor, EC/pH/Salts/N-P-K

0 reviews • Write a review

from

$88.56

Ex Tax: $88.56

Stock: In Stock
Model: RDDLZ-SOIL-YGCSM
Weight: 1.00
SKU: RDDLZ-SOIL-YGCSM

Available Options

Short Description

Soil Parameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The soil moisture and temperature sensor measures soil temperature (-40 to 80°C), moisture (0 to 60% VWC), pH (3 to 10, ±0.3 accuracy), and nutrients (N-P-K, 0 to 2000 mg/kg, ±2% accuracy). It also tracks electrical conductivity (0 to 20000 µS/cm) and salinity (up to 10000 mg/L). This IP68-rated, corrosion-resistant sensor features a durable 304 stainless steel electrode for harsh environments.

Specification

Model	RDDLZ-YGC-SM
Output Signal	9-30V RS485
Soil Parameter	Measurement Range	Resolution	Accuracy
Soil Temperature	-40 ~ 80°C	±0.1°C	±0.5°C
Soil Moisture	0 ~ 60% (Volumetric Water Content)	0.10%	±3% (0-35% range), ±5% (35-60% range)
Electrical Conductivity (EC)	0 ~ 20000 μS/cm	1 μS/cm	±5%
Salinity	0 ~ 10000 mg/L	1 mg/L	±5%
pH	3 ~ 10 pH	0.1 pH	±0.3 pH
Nitrogen, Phosphorus, Potassium (N-P-K)	0 ~ 2000 mg/kg	1 mg/kg	±2% FS

Features

High Precision and Fast Response: Offers high measurement accuracy with fast response time, ensuring efficient soil monitoring.
Versatile Soil Compatibility: Less affected by soil salt content, making it suitable for a wide range of soil types.
Durable Stainless Steel Electrode: Equipped with specially treated 304 stainless steel probes that resist corrosion, withstand external impacts, and ensure longevity.
Waterproof and Dustproof (IP68 Rated): Fully sealed design, resistant to acid and alkali corrosion, suitable for burial in soil or immersion in water for long-term dynamic testing.
Modular Design: Supports monitoring of up to 8 soil parameters, including moisture, temperature, electrical conductivity (EC), pH, salts, nitrogen (N), phosphorus (P), and potassium (K).
Advanced Waterproofing Protection: Uses high-density resin encapsulation for enhanced water and corrosion resistance, preventing moisture ingress and ensuring durability.

Size

Application

Tips: Can the sensor’s readings be influenced by factors such as soil type, temperature, or salinity?

While the sensor is designed for versatility across a variety of soil types, certain extreme conditions may slightly influence its readings. Soil type can impact measurements, as different textures (e.g., sandy, clay, loamy) retain moisture and nutrients differently. The sensor, however, is calibrated to minimize discrepancies across typical agricultural soil types. Temperature fluctuations can also have a minor effect, but the sensor’s advanced design compensates for these to maintain accuracy within its operational range of -40 to 80°C. High salinity soils can sometimes interfere with moisture and nutrient readings; however, this sensor is engineered to handle high salinity levels with minimized impact, making it suitable even for saline-rich soils.
