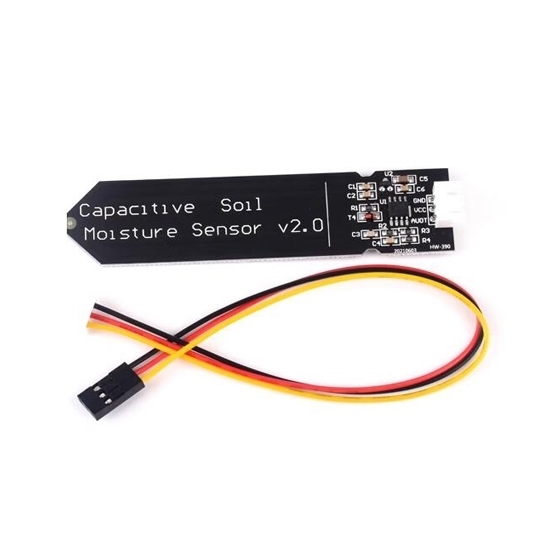

Capacitive Soil Moisture Sensor, 3.3-3.5VDC

0 reviews • Write a review

from

$3.47

Ex Tax: $3.47

Stock: In Stock
Model: RDDLZ-SOIL-C55
Weight: 1.00
SKU: RDDLZ-SOIL-C55

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The capacitive soil moisture sensor operates at 3.3–5.5 VDC with a 0–3.0 VDC output and a PH2.0-3P interface. Its compact size (98 x 23 mm) and high temperature tolerance (up to 50°C) ensure stable performance, durability, and precise moisture detection for versatile applications.

Specification

Operating Voltage	3.3~5.5 VDC
Output Voltage	0~3.0 VDC
Interface	PH2.0-3P
Dimensions	98 (L) * 23 (W) mm
Working Temperature	50℃

Features

Stable Functionality: Ensures reliable and consistent performance in various soil conditions.
Wide Application Range: Suitable for diverse agricultural and gardening setups.
Precision Chip: Equipped with a high-quality chip for accurate moisture detection.
Long Lifespan: Designed to withstand prolonged usage with minimal degradation.
Built-in Stabilized Pressure Chip: Provides stable voltage control for enhanced sensor accuracy.
Durability: Resistant to corrosion and moisture, making it ideal for outdoor environments.
Compact Size: Small form factor allows for easy installation in confined spaces.
Stable Performance: Maintains accuracy and consistency over time.

Detail

Size

Application

Tips: How is the output voltage related to soil moisture levels?

The output voltage (ranging from 0 to 3.0 VDC) increases as the soil moisture content rises. In dry soil, the sensor’s output voltage is lower, whereas in moist soil, the voltage rises. Users can interpret these readings to determine the exact soil moisture levels and can set thresholds for specific plant needs. This feature is particularly useful in automated irrigation systems where the sensor can control water flow based on soil moisture levels, conserving water and maintaining optimal plant health.
