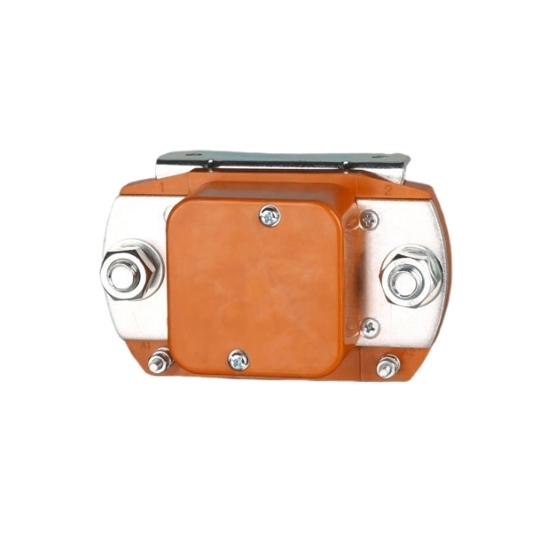

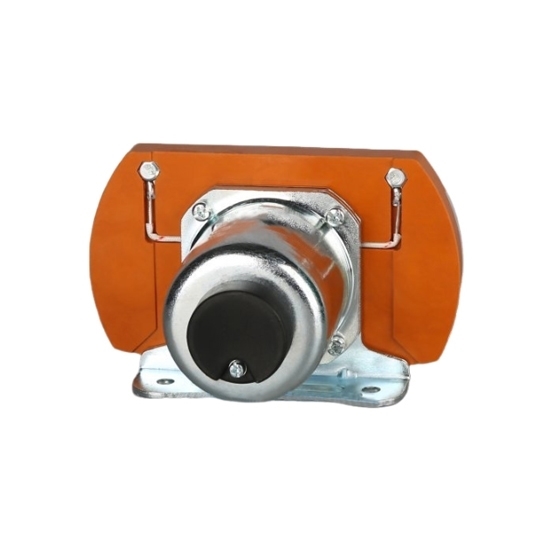

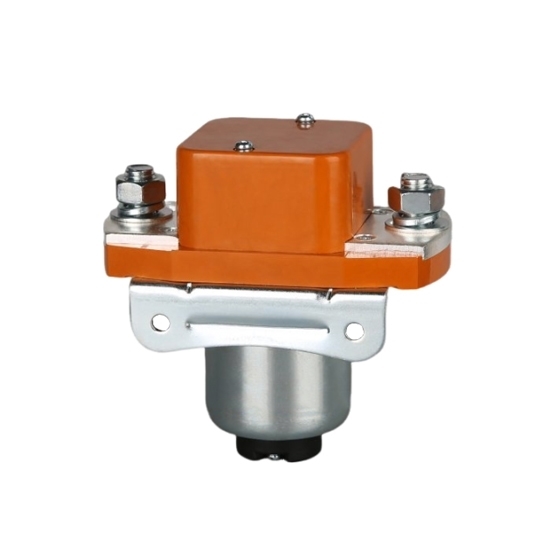

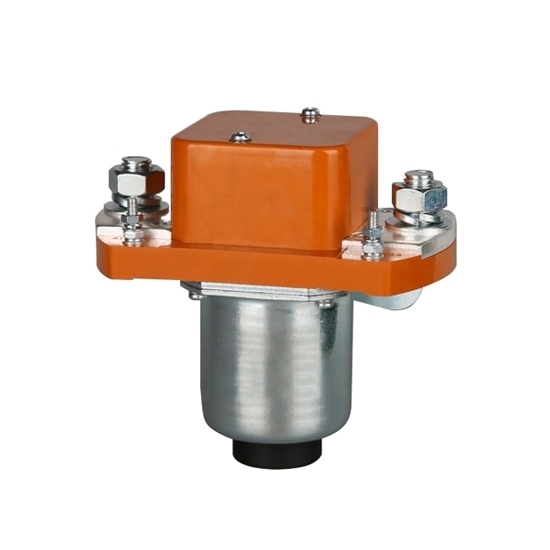

800A DC Contactor, 12V/24V/48V

0 reviews • Write a review

from

$201.69

Ex Tax: $201.69

Stock: In Stock
Model: RDDLZ-DCCON-C800
Weight: 1.00
SKU: RDDLZ-DCCON-C800

Available Options

Coil Rated Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This is a normally open contact type high current DC contactor. The rated load current of its contact circuit is 800A, and the voltage can be selected as 12V DC contactor, 24V DC contactor, 48V DC contactor, etc. This 800A DC contactor uses silver contact points, which increases the frequency of use of the conductor, increases the contact effect, and has a long service life.

Features

800A DC contactor has the characteristics of small size, large load capacity, long service life and simple maintenance, and is very popular among users.
800 amps contactor complies with the requirements of the ministry standards JB2286-78, JB3974-85, YD/585-92, YD/T512-92. It has been tested in the factory and by relevant testing units and meets the requirements of the ministry standards. It has been used by users for many years to satisfy users to the maximum extent. Needed, reliable quality.
Single coil 800A DC contactor are suitable for electric forklifts, battery trucks, tractors, excavators, brick making machines, cleaning vehicles, automotive air conditioners, communication power supplies, switch control of electronic control circuits of uninterruptible power supplies, electroplating power supplies and other systems.

Specifications

Model	RDDLZ-SZJ800A
Contact Form	Normally open
Coil Rated Voltage (DC V)	12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 150V
Contact Rated Voltage (DC V)	≤80V
Contact 48V Circuit Rated Load Current (DC-1)	800A
Main Contact Contact Voltage Drop under 100A Load	≯80mV
Cooling pull-in voltage (V), (20±5)℃	≯70%
Cooling Release Operating Voltage (V), (20±5)℃	≯40%,≮5%
40℃ Coil Operating Voltage Range	0.8-1.2Us
Power-on Action Time	30ms
Power off Release Time	15ms
Maximum Bounce Time of Contact Connection	10ms
Maximum Bounce Time of Contact Disconnection	3ms
Insulation Resistance	20MΩ
Dielectric Strength	50Hz/60Hz 1000VAC 1minute
Maximum Breaking Capacity of Main Contact (Power on for 5ms)	2000A/5ms at 48V/DC
Coil Power Consumption (W)	Start: 120-170, Hold: 6-12
Coil Temperature Rise (K)	≤45
Terminal Temperature Rise (K)	≤65
Electrical Life	10000 times
Mechanical Life	300,000 times
Work Specifications	Continuous
Contact Material	Silver alloy
Load Terminal Type	M12 screw
Coil Terminal Type	M4 screw
Auxiliary Contact Rated Load (Optional)	2A/48VDC, 5A/24VDC
Testing Agency Certification	CE, FCC, RoHS

Load Characteristic Curve

Installation Dimension Diagram

Wiring Diagram & Coil Temperature Rise Curve Graph

One way is normally open (SPST 1NO)
1 and 2 are contact terminals
A1 and A2 are coil terminals
L1 is the take-off winding L2 is the holding winding

Mechanical Capabilities and Usage Environment

Contact Terminal M8 Tightening Torque (Nm)	≯30 is appropriate
Coil Lead-out M4 Tightening Torque (Nm)	≯1.2 is appropriate
Ambient Temperature	-25~+70℃
Relative Humidity	+20℃ 98%
Vibration Frequency at Fixed Location	3G, 1～50Hz, amplitude 0.5mm
Impact	(60～100) times/min, acceleration ≤4g
Altitude	2000 meters
Installation Direction	Arbitrary
Protection Level	IP40 (equivalent to IEC60947)

Tips: What are the advantages of DC contactors?

High-speed switching: The response time of DC contactors is very fast and can complete the connection and disconnection of circuits in milliseconds, which makes them very suitable for applications that require frequent switching of circuits in a short time, such as battery management, DC electromagnet control, etc. .
Long life: Since the mechanical contacts in the DC contactor do not wear out as frequently as the AC contactor during the switching process, the life of the DC contactor is much longer than that of the AC contactor under the same load. This is also the reason for the DC contactor. One of the advantages in high frequency switching applications.
High reliability: There is no arc polarity inside the DC contactor, and the arc voltage generated during the switching process is very low. The arc is small and not prone to high-frequency oscillation, which makes the DC contactor more reliable than the AC contactor. High, the output is more stable.
Low arc voltage: Due to the low arc voltage, when DC contactors control high-voltage DC loads, they have lower voltage loss compared to AC contactors, which can reduce power loss and be more efficient.
