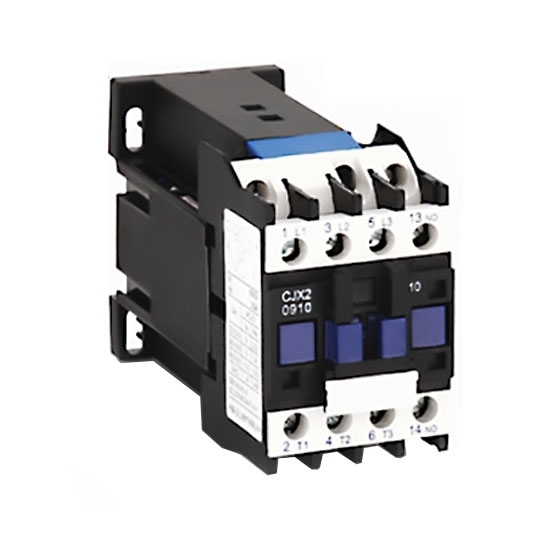

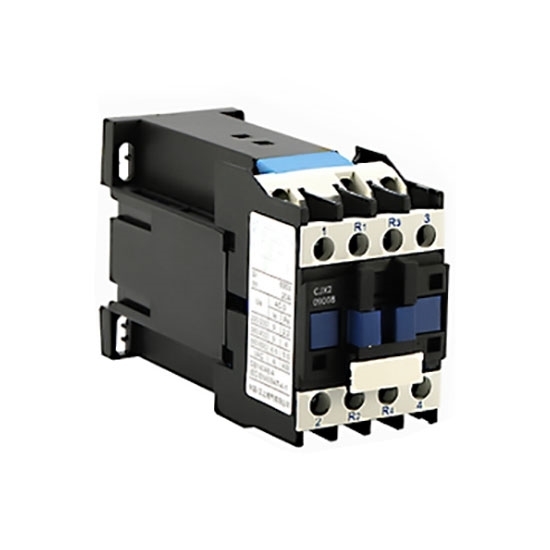

12 Amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil

0 reviews • Write a review

from

$74.99

Ex Tax: $74.99

Stock: In Stock
Model: RDDLZ-DCCON-12A
Weight: 1.00
SKU: RDDLZ-DCCON-12A

Available Options

Contact Form

Coil Rated Voltage

Auxiliary Contact

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

DC Contactor is mainly used in the DC control circuit. It works as to connect and break of the circuit load, which can fully meet the special demand of electric locomotive, diesel locomotive and electric motor car group.

Specification

Model		RDDLZ-CJX2-12Z	RDDLZ-CJX2-12008Z
Rated Current		12A AC
Coil Rated Voltage (Optional)		12V DC, 24V DC, 36V DC, 48V DC, 110V DC, 220V DC
Contact Form (Optional)		3 Pole (3NO)+1NO, 3 Pole (3NO)+1NC	4 Pole (2NO+2NC)
Frequency		50Hz/ 60Hz AC
Rated Power (AC-3)	200-240V	3kW (4HP)
	380-440V	5.5kW (7.5HP)
	500-550V	7.5kW (10HP)
	600-690V	7.5kW (10HP)
Conventional Thermal Current		25A
Operating Temperature		-40℃~85℃
Operating Humidity		5~95% RH

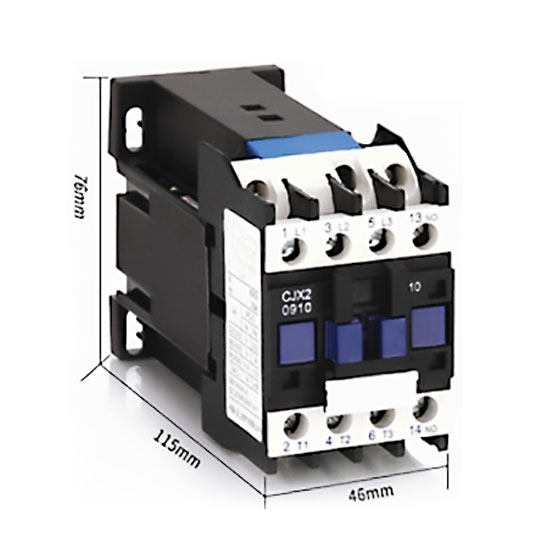

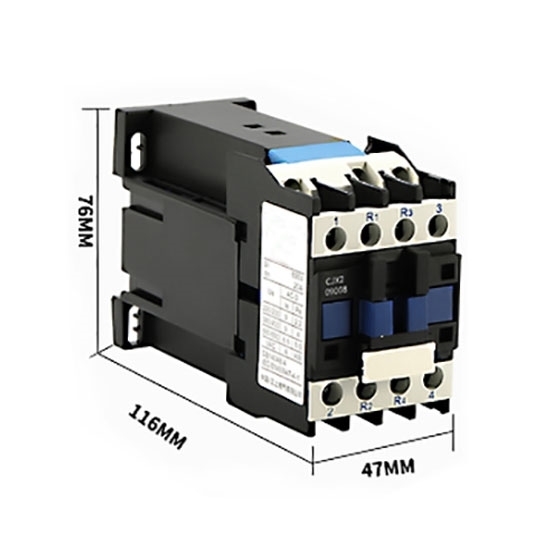

Dimensions		47 x 76 x 115mm	47 x 76 x 116mm
Weight		0.5kg

Circuits Diagram

Details

Tips: Difference between DC contactor and AC contactor

The difference between a DC contactor and an AC contactor is in the core and coil.

There is eddy current in the electromagnet core of AC contactor, so the electromagnet core is made to be stacked one by one. To prevent electromagnetic release at the moment of zero crossing, a short-circuit ring is added to the electromagnet core, the number of coil turns is small, the current is large, and the wire diameter is thick.

The electromagnet core of the DC contactor is an integral iron core with a slender coil and a particularly large number of turns. If the AC and DC contactors are connected incorrectly, the DC power is connected to the AC contactor, and the coil will burn immediately. The AC power is connected to the DC contactor, the contactor cannot be closed.
