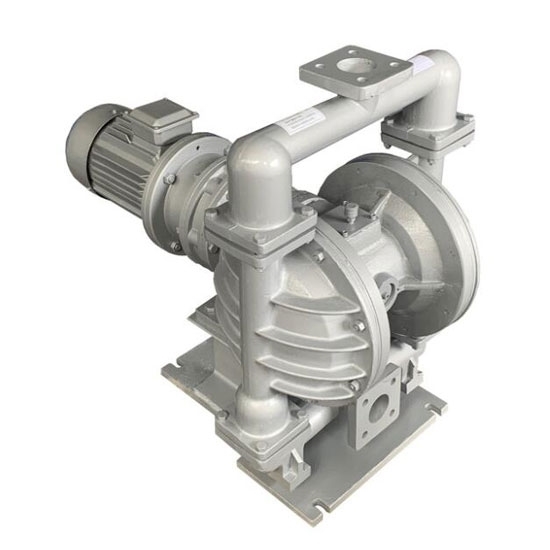

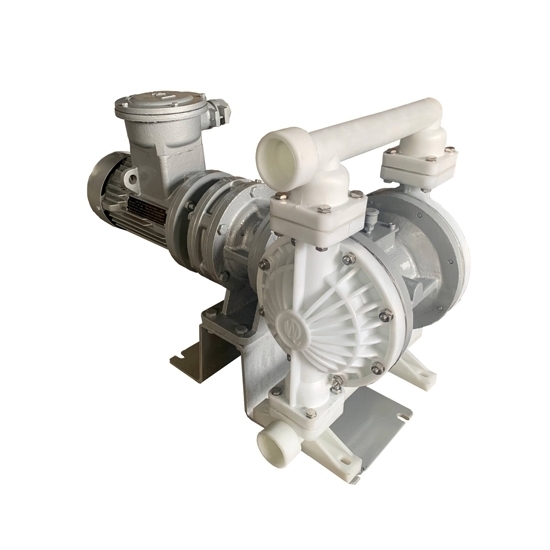

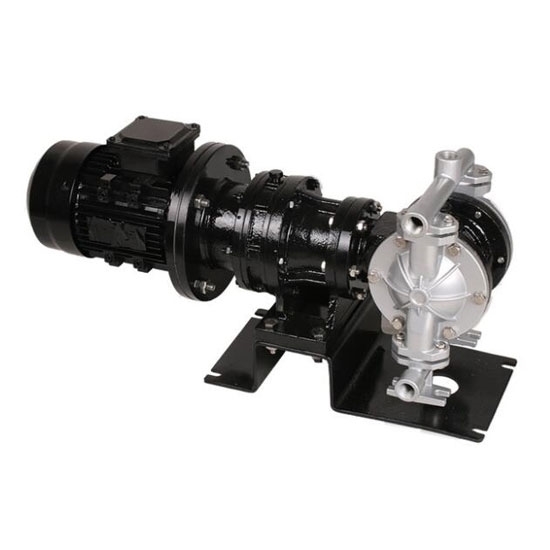

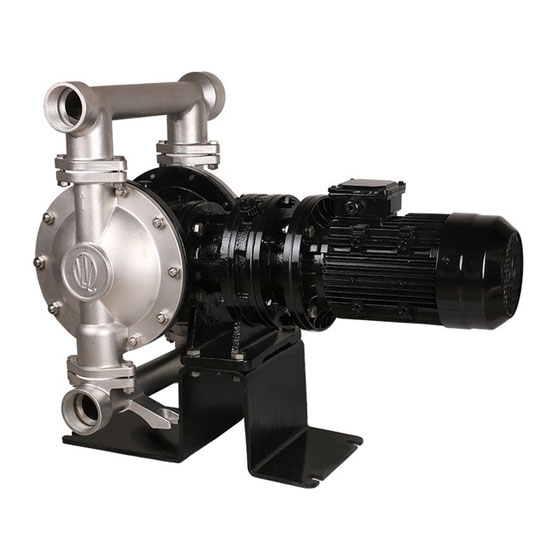

EODD pump is a reciprocating diaphragm pump with electric motor for pumping different kinds of virulent, inflammable, volatile liquids and recovering hot water.
Specification
| Model | RDDLZ-DBY3-40 |
| Max. Flow | 17.5 GPM (4 m3/h) |
| Fluid Inlet Size | 1-1/2 inch (DN40) |
| Fluid Outlet Size | 1-1/2 inch (DN40) |
| Connection Type (Optional) | NPT, BSPT, ANSI Flanged, DIN Flanged |
| Suction Lift | 13 ft. (4m) |
| Head | 131 ft. (40m) |
| Outlet Pressure | 3 kgf/cm2 |
| Motor Speed | 1450 rpm |
| Motor Voltage | 3-Phase 380V |
| Motor Power | 1.5kW |
| Reducer Speed Ratio | 1:17 |
| Working Temperature | Polypropylene: 70℃ Aluminum Aloy: 90℃ Stainless Steel: 100℃ Cast Iron: 90℃ |
| Body Material (Optional) | Polypropylene (Plastic), Aluminum Alloy, Stainless Steel, Cast Iron |
| Diaphragm Material | Butyronitrile (Default)/ Teflon (Customizable) |
| Weight | 87kg, 89kg, 96kg, 98kg |

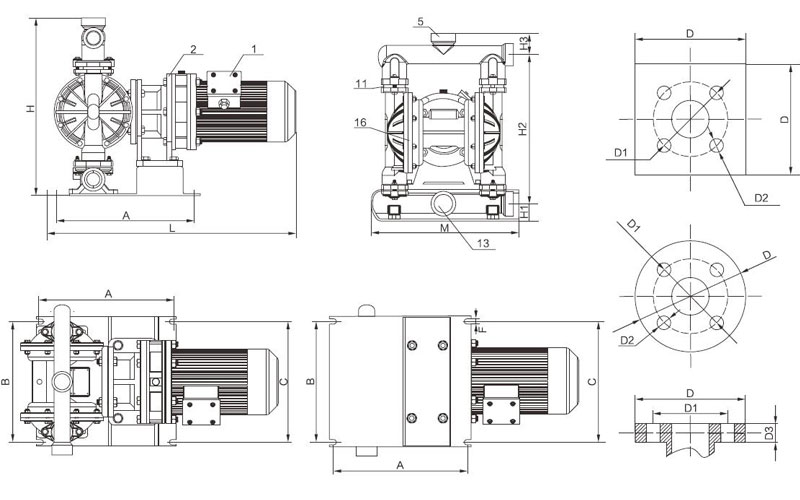

Dimensions (Unit: mm)
| Model | A | B | C | F | L | H | H1 | H2 | H3 | M | Thread Type (NPT, BSPT) | Flange Type (ANSI, DIN) | |||
| D | D1 | D2 | D3 | ||||||||||||
| RDDLZ-DBY3-40 | 425 | 155 | 155 | 14 | 760 | 560 | 125 | 400 | 50 | 340 | 1-1/2 | 130 | 100 | 4 - φ14 | 16 |

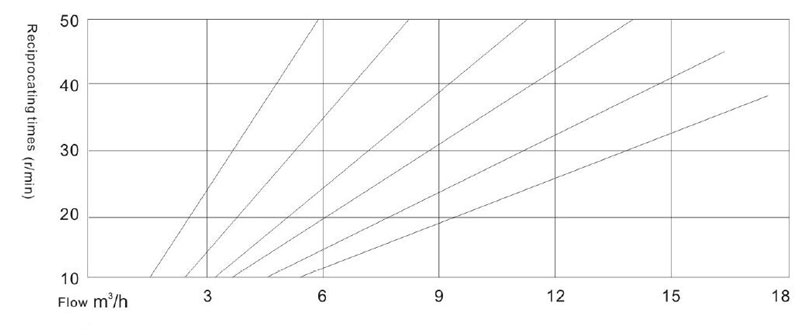

Flow Diagram

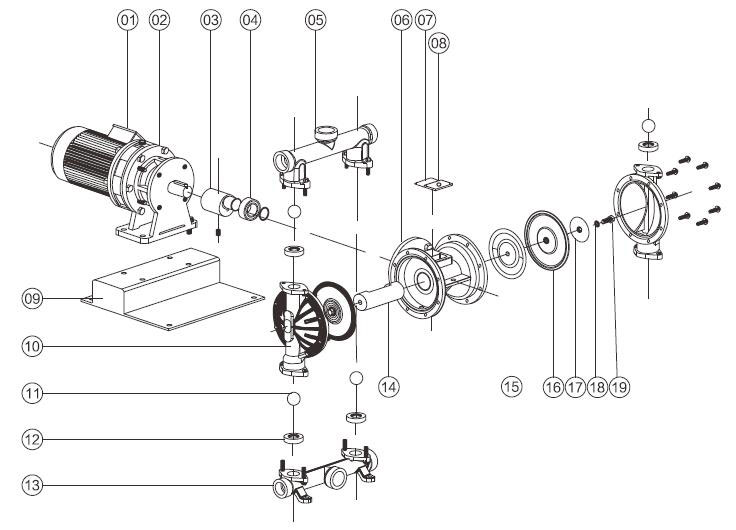

Details
| 1 | motor | 8 | Grease Nipple | 14 | Piston Shaft |
| 2 | Reducer | 9 | Footing | 15 | Inner Press Plate |
| 3 | Wobber | 10 | Pump Body | 16 | Diaphragm |
| 4 | Bearing | 11 | Sealing Ball | 17 | Outer Press Plate |
| 5 | Outlet Pipe | 12 | Sealing seat | 18 | Sealing Gasket |
| 6 | Iternediate | 13 | Inlet Pipe | 19 | Press Plate Screw |
| 7 | Cover Plate |
Tips: What is an electric diaphragm pump?
Electric diaphragm pump is a new type of motor driven pump. Because breakthrough progress in diaphragm material, it is used in petrochemicals, ceramics, metallurgy and other industries. It is characterized by no need to irrigate water and strong self-priming ability. It can directly separate the conveyed medium from the transmission mechanical parts, and the medium will never leak to the outside. Moreover, the electric diaphragm pump itself has no shaft liquid seal, and the service life is greatly extended. Electric diaphragm pumps have taken an absolute leading position in the painting and ceramic industries. It has an irreplaceable position with other pumps in the fields of environmental protection, wastewater treatment, construction, sewage, and fine chemicals.
