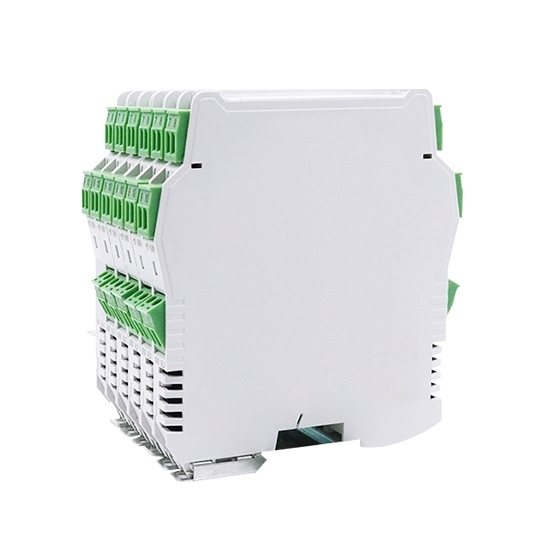

Analog Signal Isolator, DC 24V, 4-20mA/0-20mA To 4-20mA/0-10V

0 reviews • Write a review

from

$86.77

Ex Tax: $86.77

Stock: In Stock
Model: RDDLZ-SIGNI-502H
Weight: 1.00
SKU: RDDLZ-SIGNI-502H

Available Options

Short Description

Output Signal

Input Signal

Number of Input & Output Channels

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Signal isolator can convert 4-20mA/0-20mA signal to standard signal or other customized signal.

Specification:

Model	RDDLZ-TS-IP111
Dimension	106.512.5115mm
Input signal	4-20mA, 0-10V, 0-20mA
Output signal	4-20mA, 0-10V, 0-20mA
Supply voltage	DC 24V, acceptable range 20-40V
Distribution voltage	≥21V, power ≤30mA
Accuracy	±0.1%F.S
Response time	10ms
Input impedance	25Ω
Load capacity	≥800Ω
Power dissipation	1 output channel: ＜1W, 2 output channels: ＜1.5W
Power-on protection	power-on impact protection, power-on slow start 20ms
Reverse protection	reverse voltage ≤40V
Temperature drift coefficient	≤±1μA/10℃ (typical value)
Isolation withstand voltage	1500V AC*1Min (between input, output and power supply)
Output ripple	≤5mV (250 ohm load)
Electromagnetic compatibility	IEC61326-1

Dimensional drawing:

Wiring diagram:

Tips: How to choose the signal isolator
The signal isolator is installed between two system channels, so the input and output functions shall be determined firstly when selecting an isolator. Meanwhile, the input and output mode (voltage mode, current mode, loop power supply mode) of the isolator shall adapt to the interface mode at the front and back channel. In addition, there are many important parameters also relate to product performance, such as accuracy, power dissipation, noise, insulation strength, bus communication. For example, noise relates with the accuracy, power dissipation relates with the reliability. Users should be careful when selection. All in all, main principle of choosing isolator is application, reliability and cost performance.
