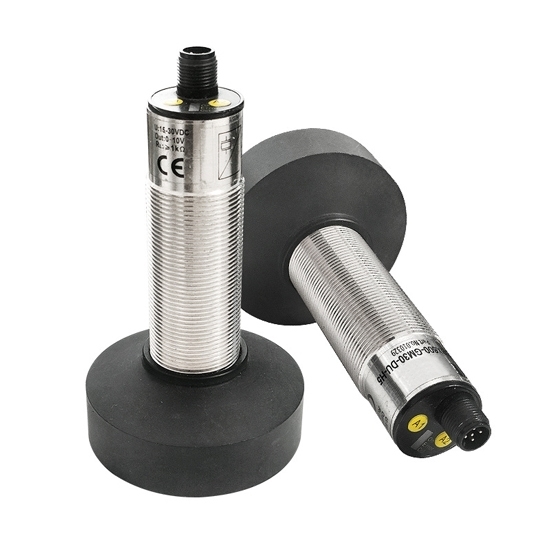

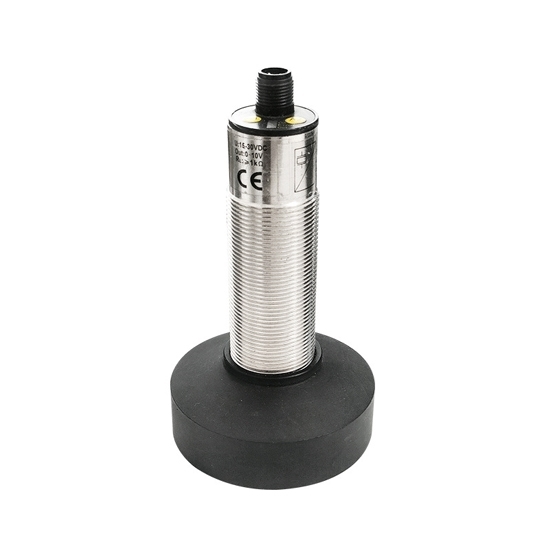

Ultrasonic Distance Sensor, 500-8000mm

0 reviews • Write a review

from

$485.96

Ex Tax: $485.96

Stock: In Stock
Model: RDDLZ-UDS-8000
Weight: 1.00
SKU: RDDLZ-UDS-8000

Available Options

Output Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This ultrasonic distance sensor can detect a measuring range of 500-8000mm, providing accurate distance data with up to 0.5% repeatability error to ensure precision and reliability. Protection class IP65, with strong dust and waterproof ability, suitable for industrial environments. Simple push-button measuring range adjustment facilitates quick configuration.

Specification

Model	RDDLZ-UBX800-GM30-B4-H5	RDDLZ-UBX800-GM30-B5-H5	RDDLZ-UBX800-GM30-BI-H5	RDDLZ-UBX800-GM30-BU-H5
Detection Range	500-8000mm
Blind Zone	0-500mm
Transducer Frequency	Approx.65KHz
Response Time	Approx.650ms
Standard Target Board	/	/	100mm*100mm	100mm*100mm
Switching Frequency	≤0.8Hz	≤0.8Hz	/	/
Output Type	B4:NPN NONC	B5: PNP NONC	BI: 4-20mA	BU: 0-10V
No-load Current	/	/	≤60mA	≤60mA
Rated Operating Current	200mA	200mA	/	/
Supply Voltage	10-30VDC ripple 10%
Repeatability	≤0.5%	≤0.5%	±0.1% offull-scale value	±0.1% offull-scale value
Range Adjustment	The farthest and closest range can be adjusted by pushing a button
Protection Class	IP65
Connection Method	H5 (5-pin) M12 connecting wire/2m PVC cable
LED Green	Solid: Power on
LED Yellow	Solid: Switching state switch output; Flashing: Program function
LED Red	Ormal operation: "fault"; Program function: No obiect detected
Product Certification	F©/CE/CCC/ROHS/EAC

Details

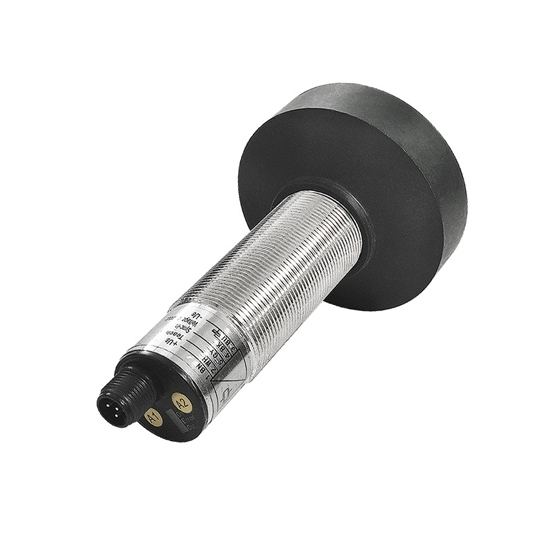

Nickel-plated brass housing, A1/A2 convenient adjustment buttons.
High-quality transducers with sensitive and precise response and stable output.
Aircraft-grade connectors can connecting tightly all parts of the structure.

Dimensional Drawing (unit: mm)

Wiring Drawing

Tips: Common applications for ultrasonic distance sensors

Ultrasonic distance sensors are used in a wide variety of automated systems and robots. The most common applications include:
Level Measurement: Used to detect the level of containers such as water tanks and fuel tanks.
Obstacle Detection: In robotics or automation equipment to help detect obstacles ahead and avoid collisions.
Object Counting and Position Recognition: For automatic counting and position determination of objects or goods, commonly used in warehouse management and logistics industry.
