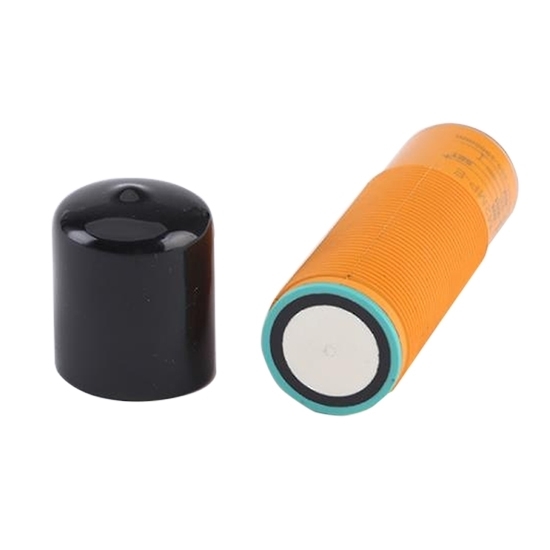

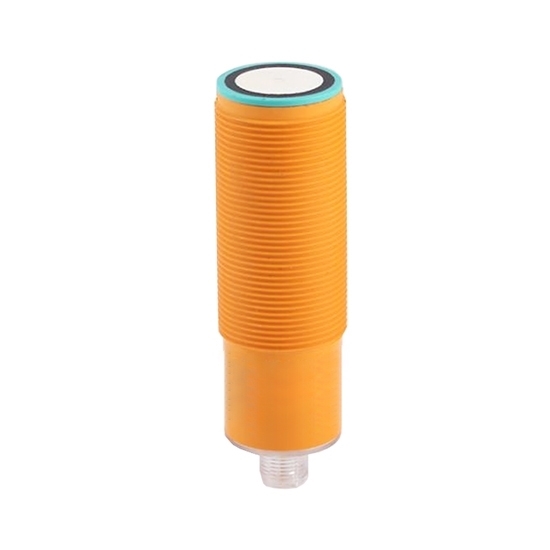

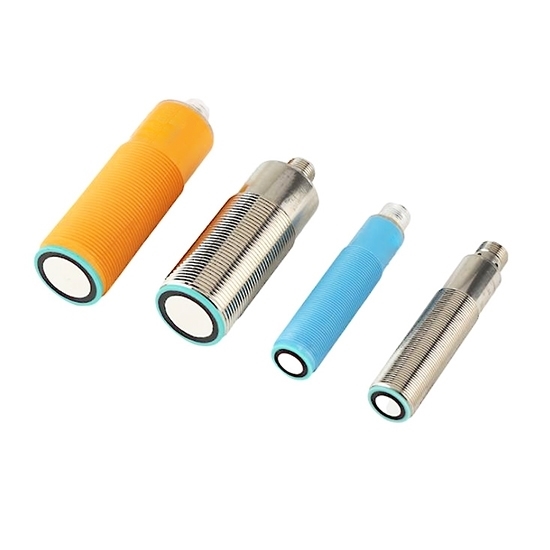

Ultrasonic Distance Sensor, 150-2000 Mm

0 reviews • Write a review

from

$395.69

Ex Tax: $395.69

Stock: In Stock
Model: RDDLZ-UDS-150
Weight: 1.00
SKU: RDDLZ-UDS-150

Available Options

Signal Output

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Waterproof ultrasonic distance sensor with IP67 waterproof grade, robust rectangular metal housing with thread on the side. Ultrasonic measurement can reach 2000mm. Switch output bright and dark can be set on the small ultrasonic sensor.

Specification (If you need dual output, please contact us.)

Detection Distance	150mm-2000mm
Blind Area	150mm
Working Power Supply	DC 24V ±10% fluctuation (P-P), below 10%
Standard Detector	100x100mm
Response Time	195ms (min)
Resolution	0.35mm (analog resolution)
Working Temperature	-20 ℃—+60 ℃
Storage Temperature	-25 ℃—+70 ℃
Working Time	35-85%RH
Vibration Frequency	10-55Hz
Withstand Voltage	1000VAC 50/60Hz
Insulation Electronic Resistance	DC 500V, 20 mohm or more
Insulation Strength	AC 500V, 50/60Hz,1 minute
Shell Material	ABS engineering plastics
Protection Level	IEC IP67
Certification	CE
Warranty	12 months

Action Mode Diagram

Dimension (mm):

Application

Tips: The System Composition of Ultrasonic Sensor

The ultrasonic sensor is mainly composed of the following four parts:

Transmitter. Through the vibrator (generally ceramic products, diameter of about 15 mm) vibration to produce ultrasonic waves and radiation to the air.
Receiver. When the oscillator receives the ultrasonic wave, it produces the corresponding mechanical vibration according to the ultrasonic wave, and converts it into electrical energy as the output of the receiver.
Control part. Through the integrated circuit control transmitter ultrasonic transmission, and judge whether the receiver received the signal (ultrasonic), and has received the size of the signal.
Power supply. Ultrasonic sensors are usually powered by external DC power supply with voltage of DC12V ± 10% or 24V ± 10%, which is supplied to sensors by internal voltage regulator circuit.
