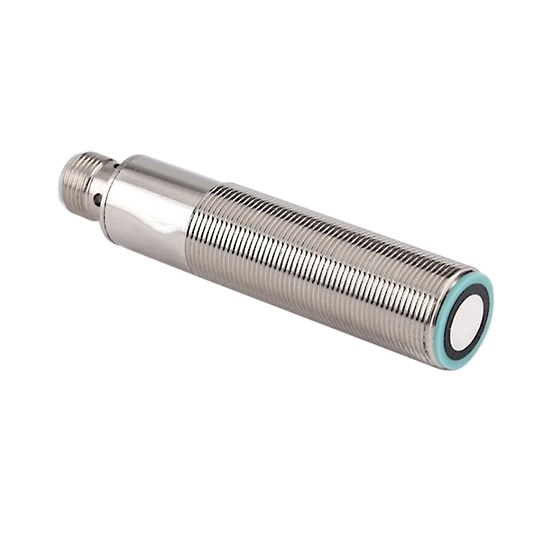

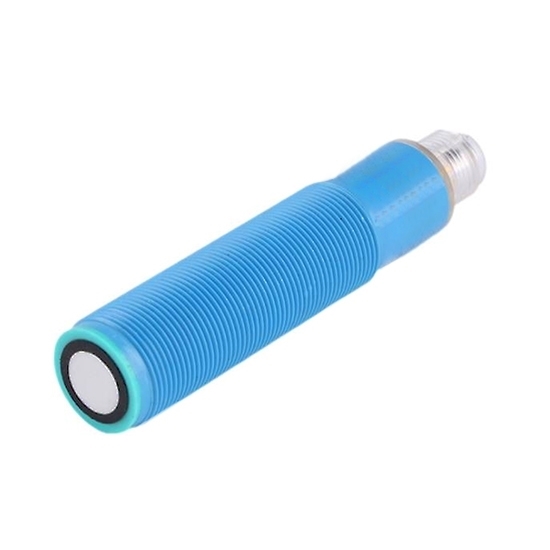

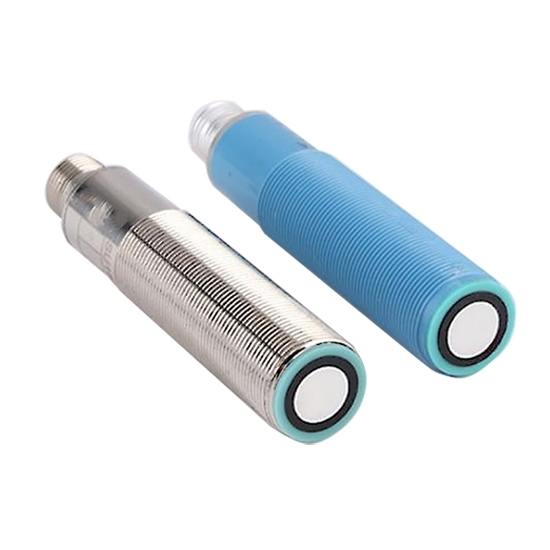

Ultrasonic Distance Sensor, 100-1000 Mm

0 reviews • Write a review

from

$326.19

Ex Tax: $326.19

Stock: In Stock
Model: RDDLZ-UDS-100
Weight: 1.00
SKU: RDDLZ-UDS-100

Available Options

Shell Material

Signal Output

Anti-interference

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High power ultrasonic transducer (sensor) standard detector is 100×100mm. You can set the detection distance and output mode by setting the line remotely. IP67 for body, come with international standards, through CE certification.

Specifications

Detection Distance	100mm-1000mm
Blind Area	100mm
Standard Detector	100x100mm
Supply Voltage	24V DC±10%
Consumption Current	Less than 50mA
Response Time	48ms (min)
Detection Accurancy	±0.25% FS
Working Temperature	-20 ℃—+60 ℃
Storage Temperature	-25 ℃—+70 ℃
Vibration Frequency	10-55Hz
Withstand Voltage	100VAC 50/60Hz
Shell Material	Nickel Copper Alloy (plastic part is PBT)
Protection Level	IEC IP67
Line Length	2m
Certification	CE
Warranty	12 months

Wiring

Dimension (mm)

Applications

Tips: What is an Ultrasonic Sensor?

Ultrasonic sensor is the ultrasonic signal into other energy signals (usually electrical signals) sensor. Ultrasonic waves are mechanical waves with vibration frequencies higher than 20kHz. It has the characteristics of high frequency, short wavelength, small diffraction phenomenon, especially good directivity, can become a ray and directional propagation. Ultrasonic penetration of liquid, solid power is very large, especially in the sunlight opaque solid. When ultrasonic meets impurity or interface, it will produce significant reflection to form reflection echo. When it meets moving object, it can produce Doppler effect. Ultrasonic sensor is widely used in industry, national defense, biomedicine and other fields.
