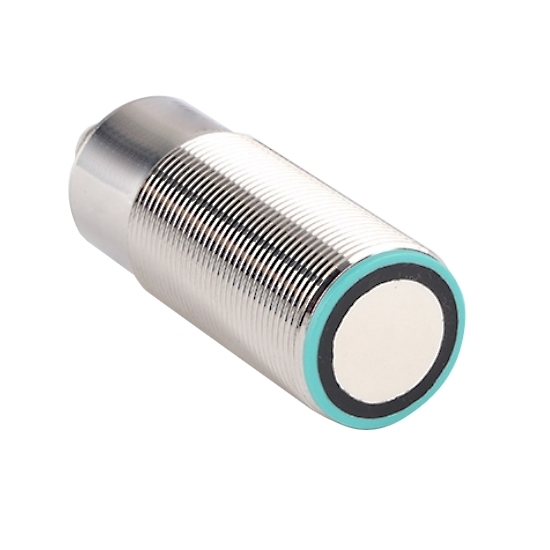

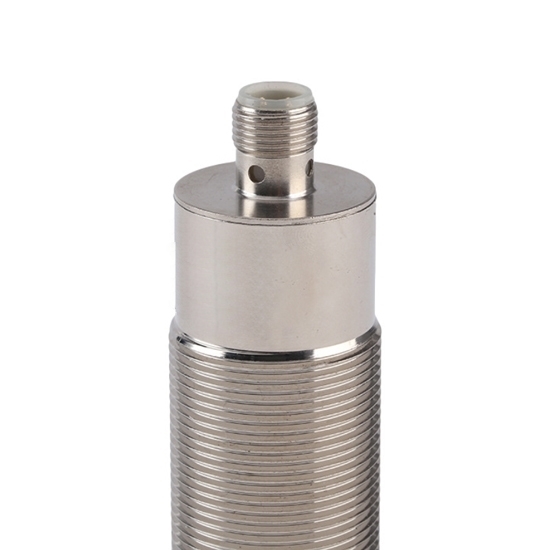

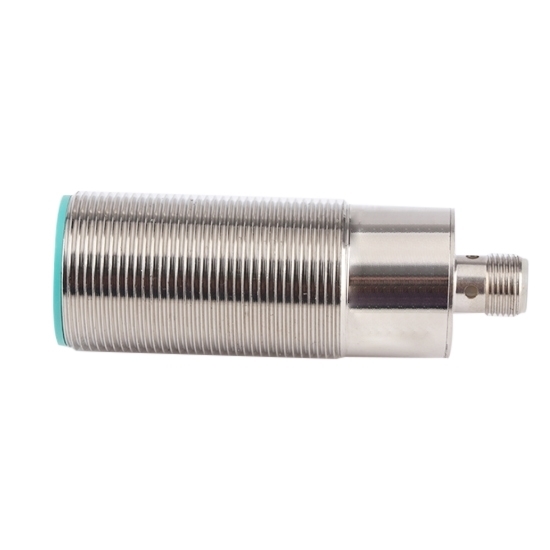

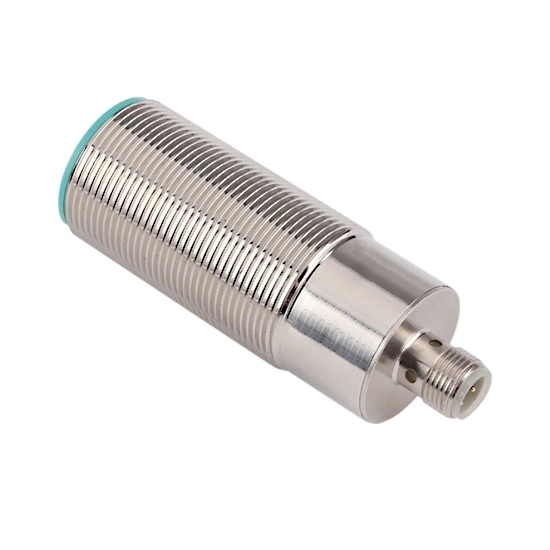

Ultrasonic Distance Sensor, 200-2000 Mm

0 reviews • Write a review

from

$398.69

Ex Tax: $398.69

Stock: In Stock
Model: RDDLZ-UDS-200
Weight: 1.00
SKU: RDDLZ-UDS-200

Available Options

Signal Output

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Ultrasonic sensor maximum range is 2000mm, IP67 waterproof grade for protection. Ultrasonic sensor price is affordable, with high quality nickel copper alloy material. Switch output bright and dark can be set in ultrasonic distance sensor.

Specification:

Detection Distance	200mm-2000mm
Blind Area	150mm
Standard Detector	100x100mm
Supply Voltage	24V DC±10%
Consumption Current	Less than 50mA
Response Time	48ms (min)
Detection Accurancy	±0.25% FS
Working Temperature	-20 ℃—+60 ℃
Storage Temperature	-25 ℃—+70 ℃
Vibration Frequency	10-55Hz
Withstand Voltage	100VAC 50/60Hz, 1minute
Insulation Electronic Resistance	DC 500V, more than 20MQ
Shell Material	Nickel Copper Alloy (plastic part is PBT)
Protection Level	IEC IP67
Certification	CE
Warranty	12 months

Dimension (mm):

Wiring:

Application:

Tips: The Difference Between Ultrasonic Sensor and Sonar Sensor
Sonar sensors directly detect and identify objects in the water and outlines on the bottom. A sonar sensor sends out a sound wave signal, which bounces back when it encounters an object and calculates its distance and position based on the reflection time and wave pattern. Ultrasonic wave is a mechanical wave whose vibration frequency is higher than sound wave. It is produced by the vibration of the energy converter chip under the excitation of voltage. It has the characteristics of high frequency, short wavelength and small diffraction. Especially good directionality, can be turned into rays and directional transmission. Sonar sensor is mainly used to detect biology.
