5 Inch Triple Offset Butterfly Valve

0 reviews • Write a review

from

$625.84

Ex Tax: $625.84

Stock: In Stock
Model: RDDLZ-TOBV-DN125
Weight: 1.00
SKU: RDDLZ-TOBV-DN125

Available Options

Short Description

Body Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This butterfly valve cannot be used for drinking water.

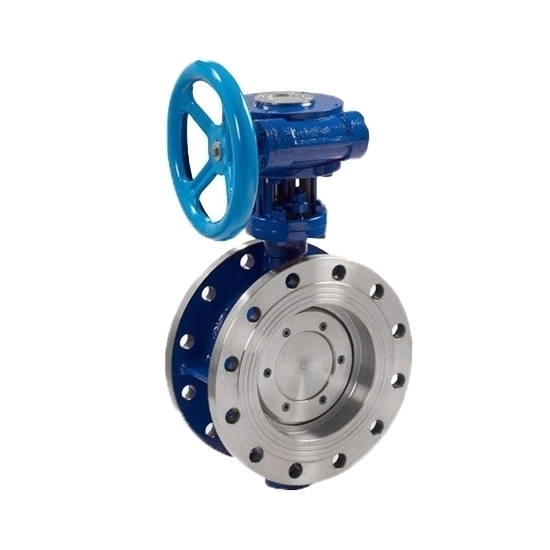

Buy an RDDLZ 5 inch triple offset butterfly valve. The hard alloy sealing material is used to ensure the sealing performance and wear resistance of the 5" triple eccentric butterfly valve.

Features

The triple eccentric butterfly valve has small opening torque, flexible and convenient, labor-saving and energy-saving.
The three-dimensional braided core structure makes the butterfly plate tighter and tighter, and its sealing performance is reliable to achieve no leakage.
Flange triple eccentric butterfly valve is resistant to high pressure, corrosion resistance, wear resistance, long service life, etc.

Specification

Model: RDDLZ-D343H-16C-DN125
Port Size: 5 inch (DN125)
Nominal pressure: PN16
Connection Type: Flanged Type
Body Material: Cast steel WCB/ Stainless Steel
Disc Material: Cast steel WCB/ Stainless Steel
Media: Water, weak acid base, air, steam, oil, etc.
Working Temperature: Carbon steel: -29℃～425℃, Stainless steel -40℃～600℃

Dimension

Model	Length (mm)		Dimension (mm)			Connection Size (mm)
Model	H	L	H1	A1	B1	D	D1	Z-d
RDDLZ-TOBV-DN125	164	140/200	460	180	200	250	210	8-18

Application

Tips: What is the preferred flow direction of a triple offset butterfly valve?

This triple offset butterfly valve has bi-directional sealing capabilities and therefore can be installed in either direction. However, a preferred flow direction is indicated in the valve by means of an arrow mark and it is strongly recommended that the valve is installed such that the flow is in the direction of the arrow.
