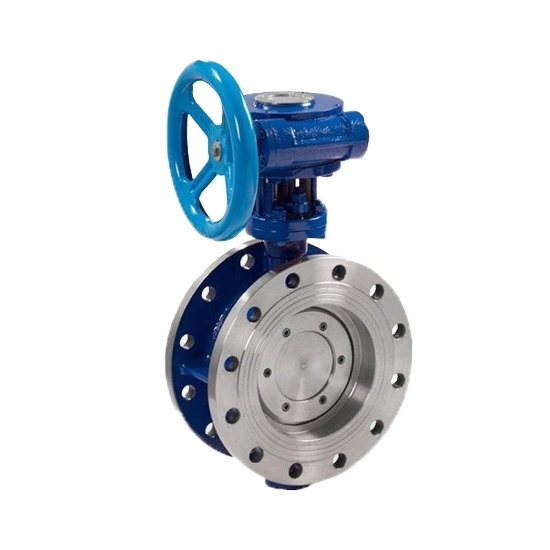

2 Inch Triple Offset Butterfly Valve

0 reviews • Write a review

from

$323.69

Ex Tax: $323.69

Stock: In Stock
Model: RDDLZ-TOBV-DN50
Weight: 1.00
SKU: RDDLZ-TOBV-DN50

Available Options

Short Description

Body Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This butterfly valve cannot be used for drinking water.

Cheap 2" triple offset butterfly valve with nominal pressure PN16, which is widely used in industrial pipelines such as metallurgy, electric power, petrochemical industry, water supply and drainage, and municipal construction, for regulating flow and carrying and breaking fluid.

Features

The triple eccentric butterfly valve has small opening torque, flexible and convenient, labor-saving and energy-saving.
The three-dimensional braided core structure makes the butterfly plate tighter and tighter, and its sealing performance is reliable to achieve no leakage.
Flange triple eccentric butterfly valve is resistant to high pressure, corrosion resistance, wear resistance, long service life, etc.

Specification

Model: RDDLZ-D343H-16C-DN50
Port Size: 2 inch (DN50)
Nominal pressure: PN16
Connection Type: Flanged Type
Body Material: Cast steel WCB/ Stainless Steel
Disc Material: Cast steel WCB/ Stainless Steel
Media: Water, weak acid base, air, steam, oil, etc.
Working Temperature: Cast steel: -29℃～425℃, Stainless steel -40℃～600℃

Dimension

Model	Length (mm)		Dimension (mm)			Connection Size (mm)
Model	H	L	H1	A1	B1	D	D1	Z-d
RDDLZ-TOBV-DN50	112	108/150	350	180	200	165	125	4-18

Application

Tips: What is a triple offset type butterfly valve?

The butterfly valve has a very compact design belonging to the quarter family. It’s lightweight, easy to operate, and has lower torque. It’s considered a top choice for critical and severe applications. The triple offset valve design achieves zero leakage on metal-to-metal contact. The hard facing seat eliminates the rubbing between the seat and seal ring through the flow path to extend the cycle life. Its uniform sealing can operate more frequently, and open and close quickly.
