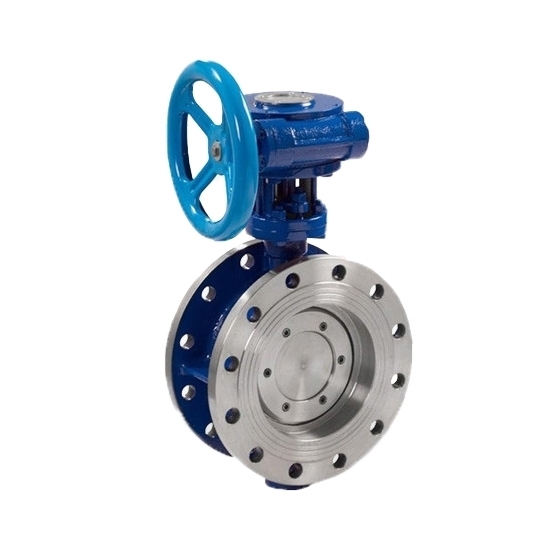

2 1/2 Inch Triple Offset Butterfly Valve

0 reviews • Write a review

from

$360.31

Ex Tax: $360.31

Stock: In Stock
Model: RDDLZ-TOBV-DN65
Weight: 1.00
SKU: RDDLZ-TOBV-DN65

Available Options

Short Description

Body Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This butterfly valve cannot be used for drinking water.

Lower cost triple offset butterfly valve with 2 1/2 inch (DN65) port size. The hard alloy sealing material is used to ensure the sealing performance and wear resistance of the 2 1/2 inch triple eccentric butterfly valve.

Features

The triple eccentric butterfly valve has small opening torque, flexible and convenient, labor-saving and energy-saving.
The three-dimensional braided core structure makes the butterfly plate tighter and tighter, and its sealing performance is reliable to achieve no leakage.
Flange triple eccentric butterfly valve is resistant to high pressure, corrosion resistance, wear resistance, long service life, etc.

Specification

Model: RDDLZ-D343H-16C-DN65
Port Size: 2 1/2 inch (DN65)
Nominal pressure: PN16
Connection Type: Flanged Type
Body Material: Cast steel WCB/ Stainless Steel
Disc Material: Cast steel WCB/ Stainless Steel
Media: Water, weak acid base, air, steam, oil, etc.
Working Temperature: Cast steel: -29℃～425℃, Stainless steel -40℃～600℃

Dimension

Model	Length (mm)		Dimension (mm)			Connection Size (mm)
Model	H	L	H1	A1	B1	D	D1	Z-d
RDDLZ-TOBV-DN65	115	112/170	370	180	200	185	145	4-18

Application

Tips: Why use a triple offset butterfly valve?

The triple offset valve design achieves zero leakage on metal-to-metal contact. The main advantages of a triple offset butterfly valve are its conical sealing design, which results in repeatable sealing and vastly extended valve life. The hard-facing seat eliminates the rubbing between the seat and seal ring through the flow path to extend the cycle life. Its uniform sealing can operate more frequently, and open and close quickly.
