40W Single Phase AC Gear Motor, Speed Control

0 reviews • Write a review

from

$305.79

Ex Tax: $305.79

Stock: In Stock
Model: RDDLZ-GEAR-40W
Weight: 1.00
SKU: RDDLZ-GEAR-40W

Available Options

Short Description

Gear Ratio

Model Selection

With Speed Controller

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

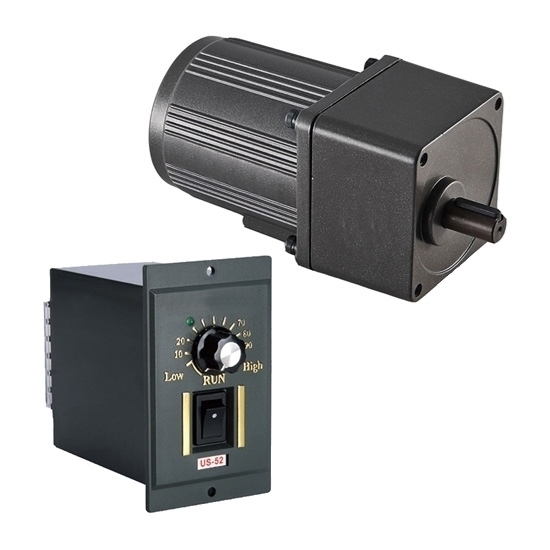

40W speed control 1-phase AC gear motor for sales, which has an extremely high torque and is speed adjustable with a speed controller, compact and cost effective, widely applicable for automatic machinery, small scale assembly line, food machinery, packaging machinery and more.

Specifications

Model		RDDLZ-5IK40R-A		RDDLZ-5IK40R-E		RDDLZ-5IK40R-C		RDDLZ-5IK40R-H
Shaft Type		Pinion shaft or Round shaft (Optional)
Output Power		40W
Phase		Single Phase
Voltage		100V		110V	120V	220V	230V	220V	230V
Frequency		50Hz	60Hz	60Hz		50Hz		60Hz
Current		0.65A	0.70A	0.55A	0.60A	0.35A	0.40A	0.35A	0.40A
Speed Control Range		90-1350r/min	90-1650r/min	90-1650r/min		90-1350r/min		90-1650r/min
Allowance Torque	1200r/min	260 mN.m		260mN.m		300mN.m		230mN.m
	90r/min	70mN.m		60mN.m		75mN.m		70mN.m
Starting Torque		180mN.m		180mN.m		160mN.m		145mN.m
Capacitor		12μF		8μF		2.5μF		2.5μF
Weight		Motor: 2.5kg, Gearhead: 1.35kg
Gearbox Model		5GN[]K
Gear Ratio		3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180, 200 Enter the gear ratio into the box ([]) within the model name

Allowance Torque Unit: Upside (N.m) / Belowside (kgf. cm)

Model	Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	41	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10	9
RDDLZ-5IK40R-A RDDLZ-5IK40R-E RDDLZ-5IK40R-C RDDLZ-5IK40R-H	Gearbox 5GN[]K	50Hz	0.77	0.92	1.3	1.5	1.9	2.3	3.2	3.8	4.6	5.7	6.9	8.3	10	10	10	10	10	10	10	10	10
		50Hz	7.85	9.38	13.2	15.3	19.4	23.4	32.6	38.7	46.9	58.1	70.4	84.7	100	100	100	100	100	100	100	100	100
		60Hz	0.63	0.76	1.1	1.3	1.6	1.9	2.6	3.2	3.8	4.7	5.7	6.8	8.6	10	10	10	10	10	10	10	10
		60Hz	6.42	7.75	11.2	13.2	16.3	19.3	26.5	32.6	38.7	47.9	58.1	69.3	87.7	100	100	100	100	100	100	100	100

Pinion Shaft Gear Motor Dimension (Unit: mm)

(Note: Gear ratio of 3~18, L=42mm; Gear ratio of 25~200, L=60mm)

Keyway Dimension of Gearhead (Unit: mm)

Shaft Section Dimension of Round Shaft Type (Unit: mm)

(Note: For the round shaft type gear motor, the shapes are the same as those of the pinion shaft type except the shaft section)

Speed Controller Dimension (Unit: mm)

Wiring Diagram

Details

Tips: What is voltage regulation and speed regulation of speed control motor?

When the stator voltage of the motor is changed, a set of different mechanical characteristic curves can be obtained, thereby obtaining different speeds. Because the torque of the motor is proportional to the square of the voltage, the larger the torque is, the lower the speed range is, which makes it difficult to apply the general cage motor. In order to expand the speed regulation range, a cage motor with a large rotor resistance value should be used for the voltage regulation and speed regulation, such as a torque motor dedicated to voltage regulation and speed regulation, or a frequency-sensitive resistor connected in series with a wound motor.

In order to expand the stable running range, when speed is adjusted above 2: 1, feedback control should be adopted to achieve the purpose of automatic speed adjustment. The main device for voltage and speed regulation is a power supply that can provide voltage changes. Commonly used voltage regulation methods include series saturation reactors, autotransformers, and thyristor voltage regulation. The thyristor voltage adjustment method is preferred. Characteristics of voltage and speed regulation:

The voltage and speed regulating circuit is simple and easy to realize automatic control.
During the voltage adjustment process, the slip power is consumed in the rotor resistance in the form of heat generation, and the efficiency is low.
Voltage and speed are generally applicable to production machinery below 100KW.
