25W Single Phase AC Gear Motor, Speed Control

0 reviews • Write a review

from

$264.36

Ex Tax: $264.36

Stock: In Stock
Model: RDDLZ-GEAR-25W
Weight: 1.00
SKU: RDDLZ-GEAR-25W

Available Options

Short Description

Gear Ratio

Model Selection

With Speed Controller

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

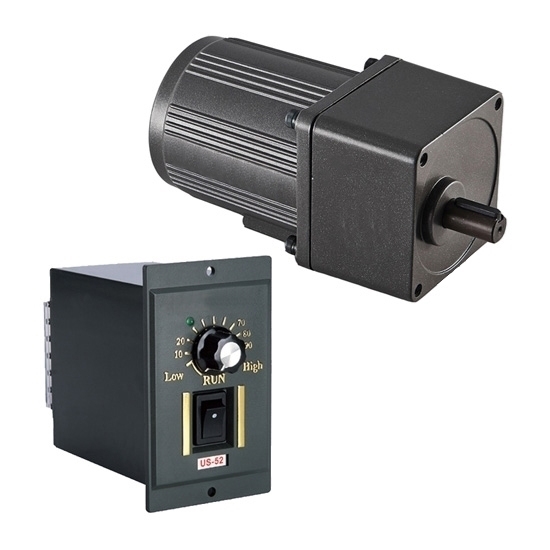

1-phase 25 watt 80mm AC gear motor with speed controller, easy to operate. The speed control range of 90-1350r/min at 50Hz, 90-1650r/min at 60Hz, superior performance and durability, supporting clockwise and counterclockwise rotation. Suitable for the packaging industry, machine tool industry, transport equipment, textile machinery, automatic welding machine, automobile industry, elevator machinery, etc..

Specifications

Model		RDDLZ-4IK25R-A		RDDLZ-4IK25R-E		RDDLZ-4IK25R-C		RDDLZ-4IK25R-H
Shaft Type		Pinion shaft or Round shaft (Optional)
Output Power		25W
Phase		Single Phase
Voltage		100V		110V	120V	220V	230V	220V	230V
Frequency		50Hz	60Hz	60Hz		50Hz		60Hz
Current		0.5A	0.55A	0.45A	0.5A	0.25A	0.23A	0.23A	0.23A
Speed Control Range		90-1350r/min	90-160r/min	90-1650r/min		90-1350r/min		90-1650r/min
Allowance Torque	1200r/min	190mN.m		190mN.m		190mN.m		190mN.m
	90r/min	47mN.m		50mN.m		47mN.m		45mN.m
Starting Torque		88mN.m		108mN.m		88mN.m		88mN.m
Capacitor		8μF		7μF		1.8μF		1.8μF
Weight		Motor: 1.7kg, Gearhead: 0.8kg
Gearbox Model		4GN[]K
Gear Ratio		3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180, 200 Enter the gear ratio into the box ([]) within the model name

Allowance Torque Unit: Upside (N.m) / Belowside (kgf. cm)

Model	Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	42	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10	9
RDDLZ-4IK25R-A RDDLZ-4IK25R-E RDDLZ-4IK25R-C RDDLZ-4IK25R-H	Gearbox 4GN[]K	50Hz	0.49	0.58	0.81	0.97	1.2	1.5	2.0	2.4	2.9	3.7	4.4	5.3	6.6	7.9	8	8	8	8	8	8	8
		50Hz	5	5.91	8.26	9.89	12.2	15.3	20.4	24.4	29.6	37.7	44.9	54.1	67.3	80	80	80	80	80	80	80	80
		60Hz	0.40	0.48	0.67	0.80	1.0	1.2	1.7	2.0	2.4	3.0	3.6	4.3	5.4	6.5	8	8	8	8	8	8	8
		60Hz	4.08	4.89	6.83	8.16	10.2	12.2	17.3	20.4	24.4	30.6	36.7	43.8	55.1	66.3	80	80	80	80	80	80	80

Pinion Shaft Gear Motor Dimension (Unit: mm)

(Note: Gear ratio of 3~18, L=32mm; Gear ratio of 25~200, L=43.5mm)

Keyway Dimension of Gearhead (Unit: mm)

Shaft Section Dimension of Round Shaft Type (Unit: mm)

(Note: For the round shaft type gear motor, the shapes are the same as those of the pinion shaft type except the shaft section)

Speed Controller Dimension (Unit: mm)

Wiring Diagram

Details

Tips: RDDLZ 25w-200w AC speed control geared motor Features

Speed control motor is a kind of AC gear motor which can realize speed regulation, slow acceleration, slow deceleration, electronic braking and other functions. RDDLZ 25w-200w AC speed control geared motor has the following features:

The RPM of the motor can be adjusted by the speed controller to realize the change of various speeds from low speed to high speed.
AC induction motor is suitable for continuous operation in one direction for a long time.
The structure is simple, stable in operation, reliable in use and convenient in maintenance.
Wide speed range: 90-1350r/min at 50Hz, 90-1650r/min at 60Hz.
The reverse operation can only be carried out after the motor stops completely when reversing, and the reverse operation can not be carried out as fast as the reverse motor.
