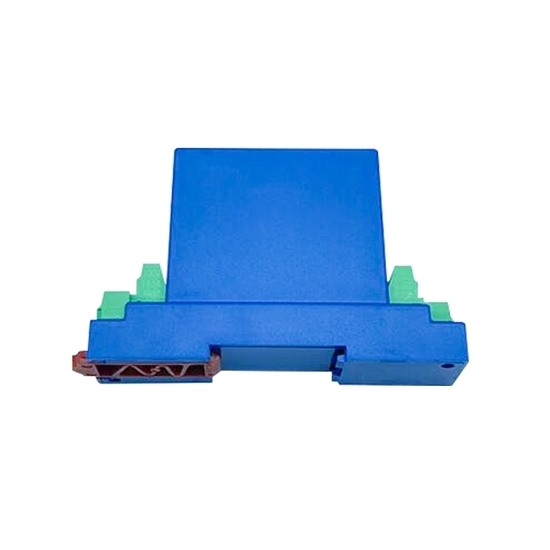

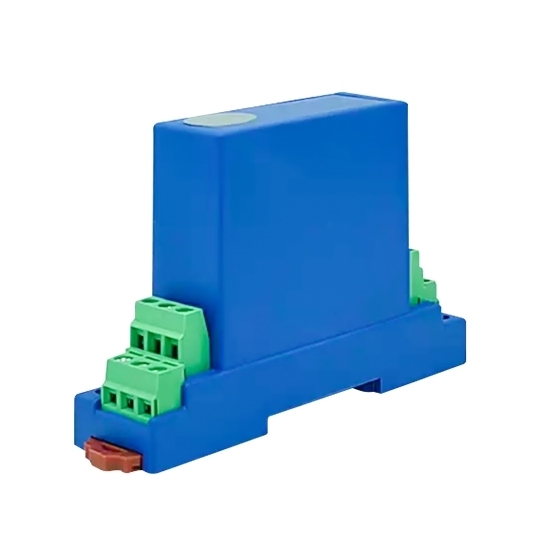

The True RMS voltage sensor supports AC/DC input voltages from 75mV to 500V and provides 4-20mA or 0-20mA output. It requires DC +12V or +24V power and has an accuracy of 0.5. Ideal for use in VFDs, motor control systems, power monitoring, and other equipment that needs accurate true RMS voltage measurements.

Specification

Note: Other parameters contact customer service.

Feature

• Linear Optocoupler Isolation Principle: Utilizes a linear optocoupler for electrical isolation, ensuring protection against high-voltage surges, noise, and electromagnetic interference.
• True RMS Conversion Technology: Provides accurate real-time voltage measurement for both AC and DC, converting the voltage to true RMS values for precise monitoring of both sinusoidal and non-sinusoidal waveforms.
• Broad Input Range: Supports a wide range of AC/DC input voltages from 75mV to 500V, making it versatile for different electrical systems and environments.
• DC Current Output: Converts the input voltage to a DC current output ranging from 0-20mA, ideal for integration with control systems and measurement instruments that accept current signals.
• High Accuracy: Offers high-precision voltage measurements with true RMS output, ensuring reliable data even in systems with complex waveforms or distorted signals.
• Universal Voltage Measurement: Capable of measuring both sinusoidal and non-sinusoidal waveforms, including square waves, triangular waves, sawtooth waves, and other distorted waveforms, providing broad application coverage.
• High Isolation: Features excellent input-output isolation, which ensures safety and reliability when working with high-voltage systems and protects sensitive equipment from electrical surges.
• Real-Time Voltage Monitoring: Provides real-time voltage measurement, delivering immediate data for system monitoring and control applications.
• Wide Application Range: Ideal for use in various applications such as Variable Frequency Drives (VFD), motor control systems, power distribution, solar inverters, and other electrical systems requiring true RMS voltage measurement.

Size

Wiring Method

Application

Tips: What are the benefits of using a DC current output for voltage sensor?

The voltage sensor’s DC current output (either 4-20mA or 0-20mA) is highly compatible with industrial control systems, PLCs (programmable logic controllers), and SCADA (supervisory control and data acquisition) systems. These systems often rely on current loop signals for monitoring and control, and the DC current output from this sensor provides a linear and scalable method of transmitting voltage information. This output type is immune to long-distance signal degradation, which is a common issue with voltage signals, ensuring that accurate data is transmitted over extended distances.
