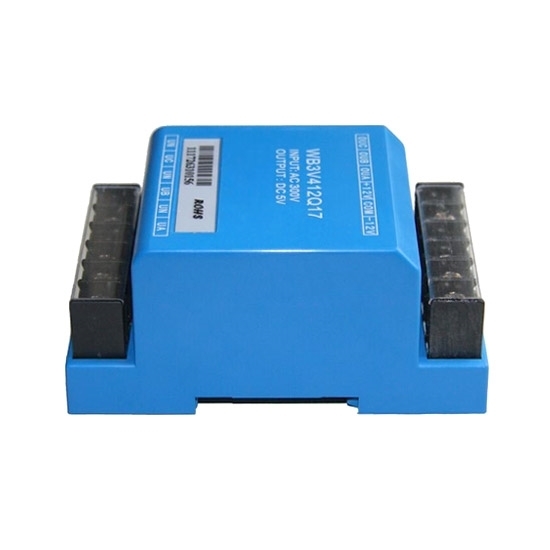

3 Phase AC Voltage Sensor For 100V To 300V Measurement, Output 0-5V

0 reviews • Write a review

from

$165.68

Ex Tax: $165.68

Stock: In Stock
Model: RDDLZ-VOS-3AC300
Weight: 1.00
SKU: RDDLZ-VOS-3AC300

Available Options

Short Description

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This SKU RDDLZ-VOS-3AC300 is out of stock.
We recommend you another three-phase AC voltage sensor RDDLZ-VOS-3AC500, which has measuring range of 3 phase AC 0-10V ~ 0-500V.

3 phase AC voltage sensor has measuring range of AC 100V/200V to 300V.

Specification:

Model	RDDLZ-WB3V412Q17
Shipping weight	1kg
Measuring range of input voltage *	3 phase AC 0-100V ~ 0-300V
Overload capacity	Continuous overload: 120% nominal input voltage for 24h Short-time overload: 2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
Linear measurement range	0% ~ 100% measuring range
Frequency range	25Hz ~ 1kHz
Input impedance	Ri=Ux*1kΩ/V
Output signal	DC 0-5V
Power supply	DC ±12V
Accuracy	1.0%F.S.
Load capacity	5mA
Response time	≤400ms
Temperature drift	300*10^-6/℃
Static current	≤10mA
Isolation features	Isolation between input and output, output terminals provides power supply
Isolation voltage	AC 3kV, 1min
Work temperature	0~50℃
Storage temperature	-25~+70℃
Protection class of housing	IP20
Mean time between failures	＞50000h
Housing material	Fire-retardant ABS
Wiring	Terminal connection
Installation	DIN rail (NS35/7.5, NS35/15, EN50022)

Voltage transducer AC 10V to 500V dimensional drawing (unit: mm):

Voltage transducer AC 10V to 500V wiring diagram:
