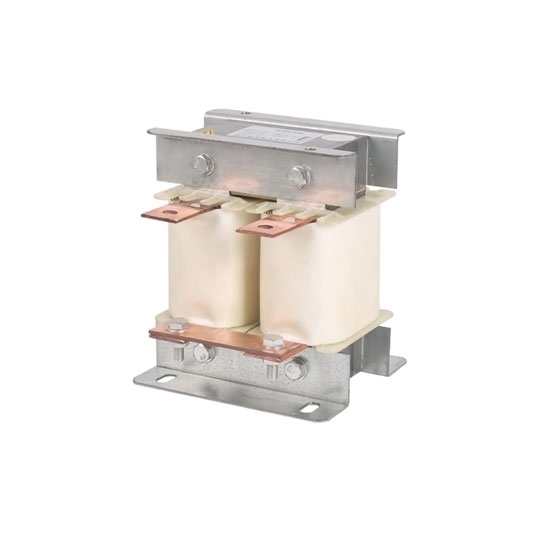

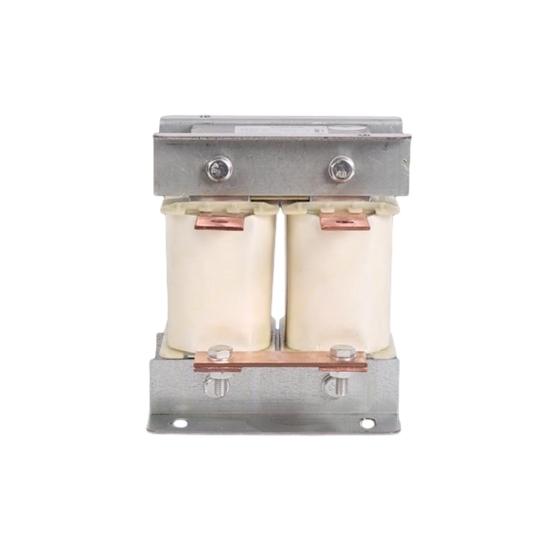

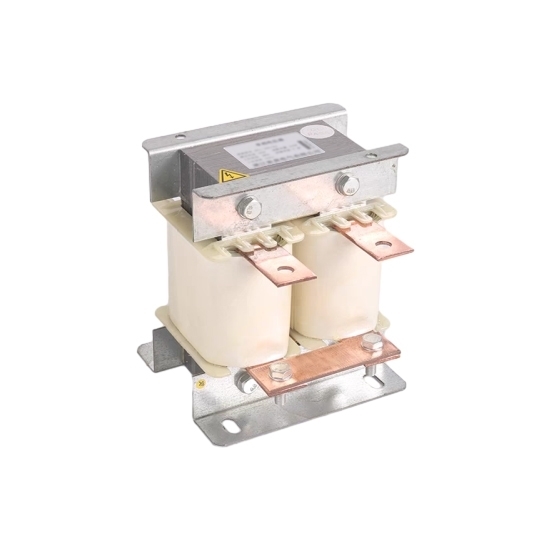

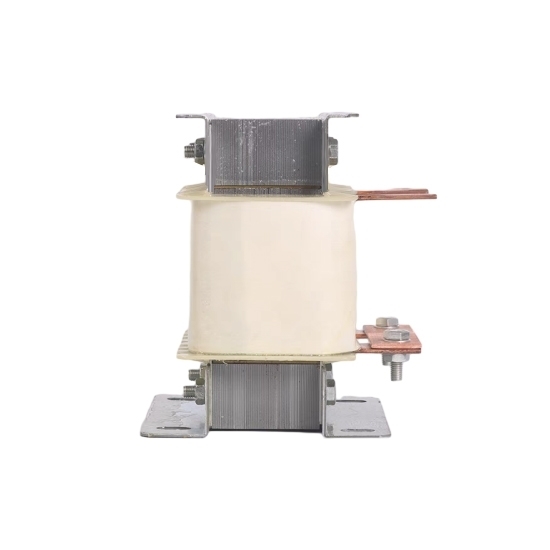

7.5 Hp (5.5 KW) DC Reactor, Single Phase

0 reviews • Write a review

from

$128.92

Ex Tax: $128.92

Stock: In Stock
Model: RDDLZ-DCR-7B5
Weight: 1.00
SKU: RDDLZ-DCR-7B5

Available Options

Voltage

Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

7.5 hp (5.5 kW) DC line reactor for sale, single phase, manufacturer direct sales, more purchases, more discounts.

Specification:

Model	RDDLZ-DCL-15
Phase	1 Phase
Power Adapter	5.5 kW (7.5 hp)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	15A
Inductance	2.125mH
Insulation Grade	F.H
Dimension	96125110mm (LWH)
Mounting Dimension	80*70mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, Insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	3kg

Features
1. Improve the input current wave caused by capacitor harmonics.
2. Reduce and prevent rectifier bridge damage and capacitors.
3. Overheating due to a surge in current.
4. Improve the power factor and reduce the AC pulse of the DC bus.
5. Limit transient changes in system voltage.

Dimension (unit: mm)
Details

Tips: Can a DC welding machine be added with a reactor?

Adding a reactor to the DC welding machine can reduce the AC current and its frequency caused by converting the input rectifier in the DC connection capacitor.
The core of the special reactor is made of high-quality silicon steel sheet. The core post is divided into even small pieces by multiple air gaps. The air gap uses high temperature and high-strength adhesive to tightly bond each small section of the core post with the upper and lower yoke. The core end face is sprayed with high-quality anti-rust paint to solve the rust problem on the surface of the reactor core. Greatly reduced noise and vibration during operation.
Reactors are vacuum-dipped and cured by high-temperature hot-baking. The coil has good insulation performance, high overall mechanical strength and good moisture resistance. The coil adopts F and H insulation system, which greatly improves the reliability of long-term operation.
Low temperature rise, small loss, low cost and high comprehensive utilization rate. Small size, light weight, small footprint and easy installation.
