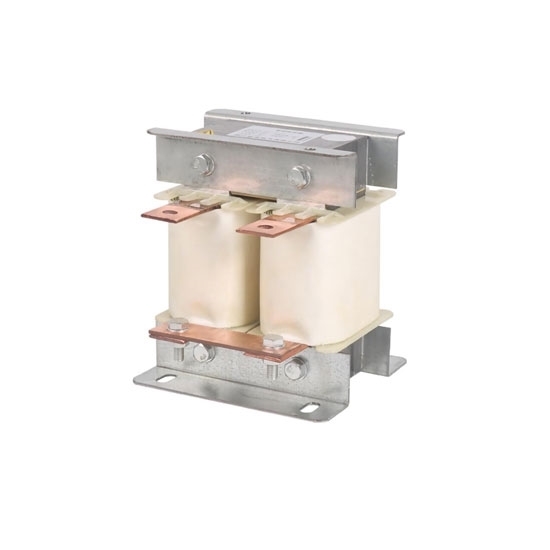

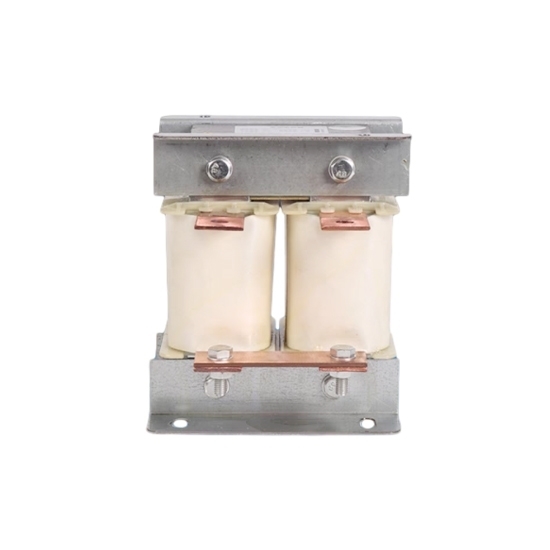

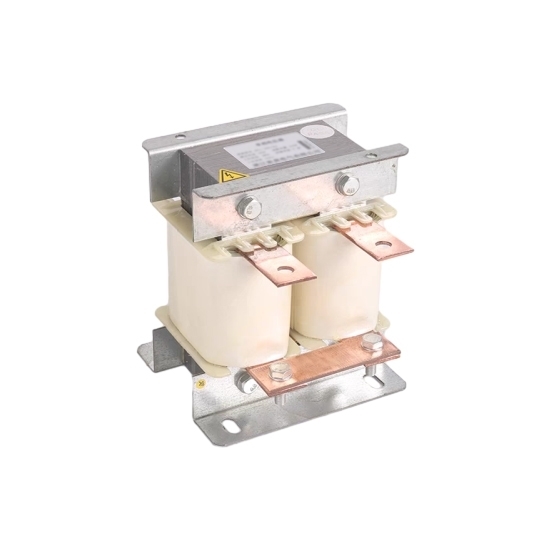

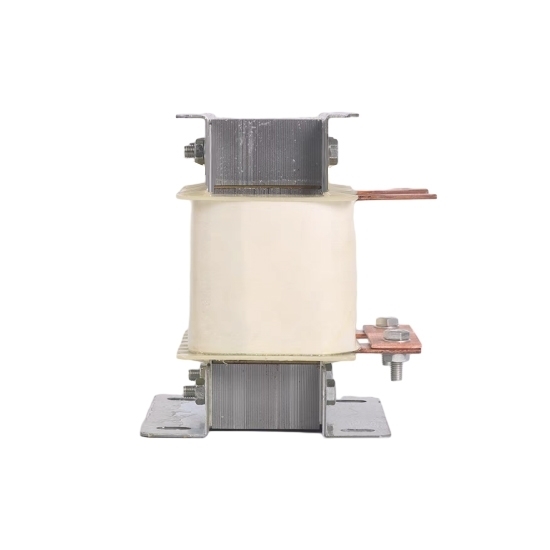

10 Hp (7.5 KW) DC Reactor, Single Phase

0 reviews • Write a review

from

$149.72

Ex Tax: $149.72

Stock: In Stock
Model: RDDLZ-DCR-10
Weight: 1.00
SKU: RDDLZ-DCR-10

Available Options

Voltage

Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Light weight DC line reactor in vfd, 7.5 kW power, rated current 20 amp, single phase line reactor can reduce the current ripple value, improve the input power factor, and can suppress the harmonics generated by the converter device.

Specification:

Model	RDDLZ-DCL-20
Phase	1 Phase
Power Adapter	7.5 kW (10 hp)
VFD Voltage Adapter	2200V-1200V (Contact us for other voltages)
Rated Current	20A
Inductance	1.59mH
Insulation Grade	F.H
Dimension	96125110mm (LWH)
Mounting Dimension	80*70mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, Insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	4kg

Features
1. Improve the input current wave caused by capacitor harmonics.
2. Reduce and prevent rectifier bridge damage and capacitors.
3. Overheating due to a surge in current.
4. Improve the power factor and reduce the AC pulse of the DC bus.
5. Limit transient changes in system voltage.

10 hp DC Reactor Dimension (unit: mm)
Details

Tips: The role of DC reactor

The DC reactor is connected between the DC rectification link and the inverter link of the frequency conversion system. The main purpose is to limit the AC component superimposed on the DC current to a specified value, keep the rectified current continuous, reduce the current pulse value, and make the inverter Variable link operation is more stable and the power factor of the inverter is improved.
