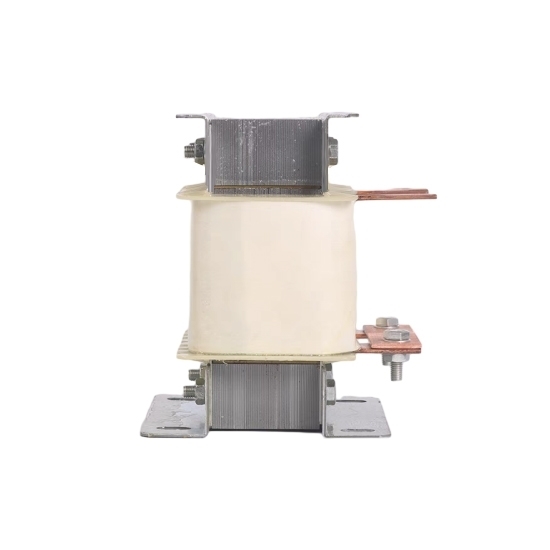

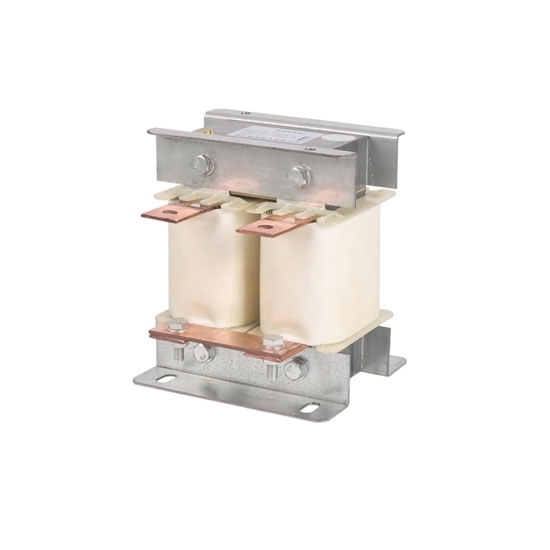

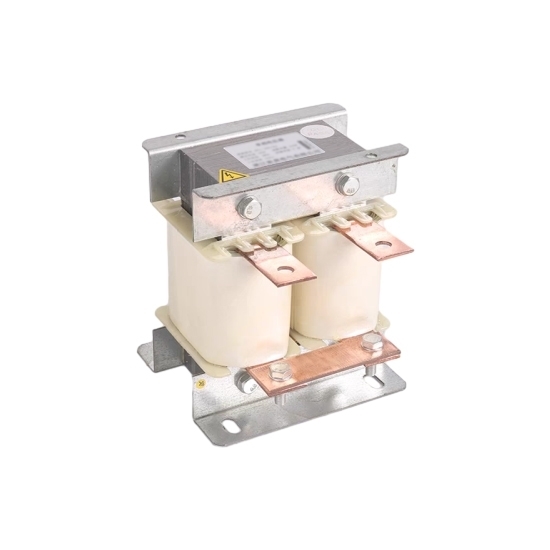

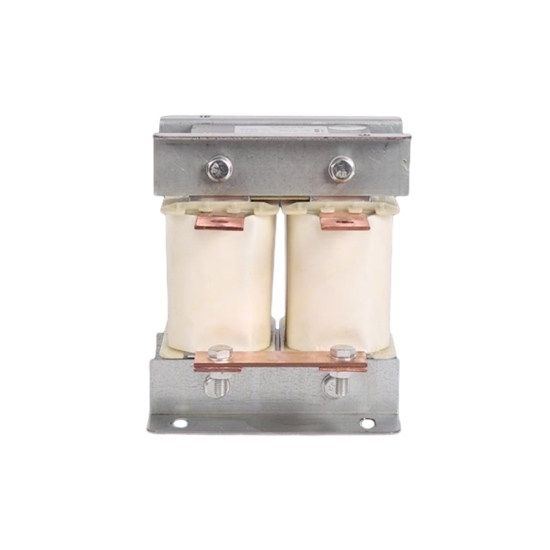

150 Hp (110kW) DC Reactor, Single Phase

0 reviews • Write a review

from

$625.46

Ex Tax: $625.46

Stock: In Stock
Model: RDDLZ-DCR-150
Weight: 1.00
SKU: RDDLZ-DCR-150

Available Options

Voltage

Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap price dc line reactor for sale,110kW, dc output voltage can choose 220V, 380V, 400V, other voltage can be customized, material copper or aluminum, fast delivery.

Specification:

Model	RDDLZ-DCL-280
Phase	1 Phase
Power Adapter	110kW (150 hp)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	280A
Inductance	0.11mH
Insulation Grade	F.H
Dimension	165185185mm
Mounting Dimension	120*110mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, Insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	20kg

Features
1. Improve the input current wave caused by capacitor harmonics.
2. Reduce and prevent rectifier bridge damage and capacitors.
3. Overheating due to a surge in current.
4. Improve the power factor and reduce the AC pulse of the DC bus.
5. Limit transient changes in system voltage.

Dimension (unit: mm)

Details

Tips: RDDLZ DC Line Reactor performance description

1. RDDLZ DC reactor is a single-phase iron core dry structure.
2. The iron core of the DC reactor is made of high-quality low-loss cold-rolled silicon steel sheet. The core column is divided into even small sections by multiple air gaps. The air gaps are separated by epoxy laminated glass cloth plates and coated with special adhesives to ensure The reactance air gap does not change during operation and there is no noise.
3. The reactor coil is wound with F-class or H-class enameled copper flat wire, arranged tightly and evenly, without insulating layer on the outside, the small-capacity coil adopts the layered structure, and the large-capacity coil adopts the pie structure, which has better Ventilation and heat dissipation effect.
4. The coil and iron core of the DC reactor are assembled into one body and go through the process of pre-baking-vacuum dipping-thermal curing. The H-level dipping varnish is used to firmly combine the coil and iron core of the Satons reactor Together, it not only greatly reduces the noise during operation, but also has a very high heat resistance level, which can ensure that the reactor can operate safely without noise at high temperatures.
5. Part of the fasteners of the core column of the DC reactor are made of non-magnetic materials to ensure that the reactor has a low temperature rise.
6. The exposed parts of the reactor are all treated with anti-corrosion treatment, and the lead terminals are tinned copper tube terminals or copper bars.
