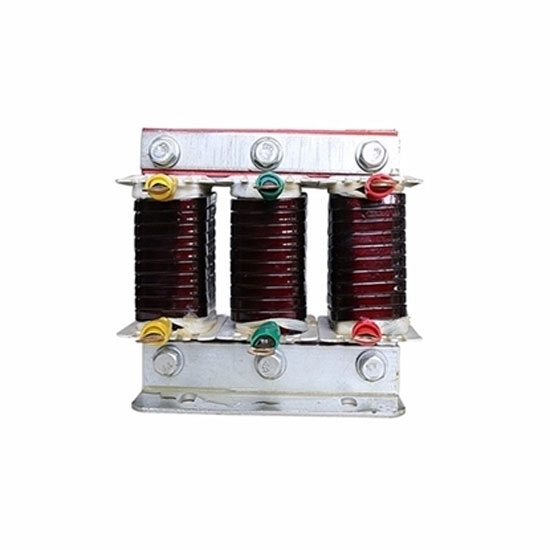

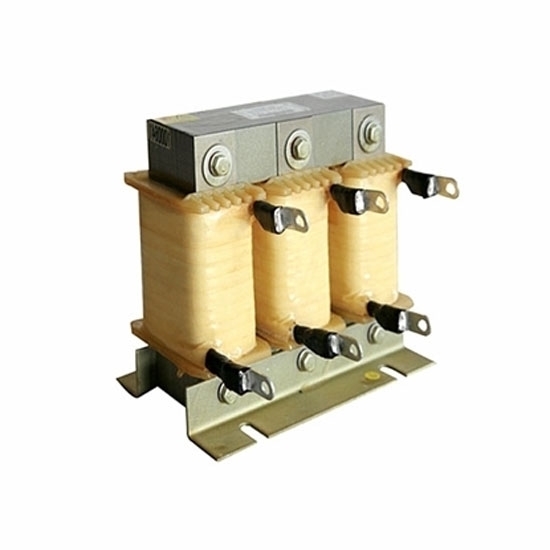

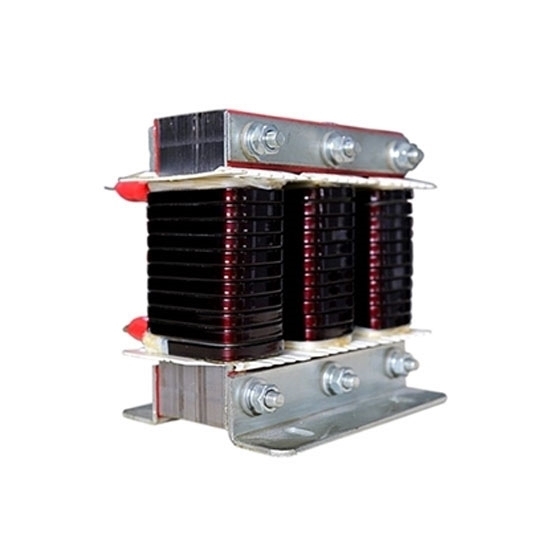

75 Hp (55 KW) AC Line Reactor, 3 Phase Output

0 reviews • Write a review

from

$583.46

Ex Tax: $583.46

Stock: In Stock
Model: RDDLZ-OLR-055
Weight: 1.00
SKU: RDDLZ-OLR-055

Available Options

Material

Output AC Voltage (V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 phase output line reactor has voltage of 220V, 380V, 400V, 410V, 440V, 460V or 480V, 75 hp or 55kW, 50A for vfd, work freqency 50/60Hz. Affordable price, with safety and reliability.

55 kW 3-Phase Output Line Reactor Specifications

Basic	Model	RDDLZ-OCR-0150-047U-0.4SA
	Recommended VFD Model	GK3000-4T0550G (75 hp three phase VFD)
	Phase	3 Phase
	Power	75 hp (50 kW)
	Weight	17 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	150 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.047 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

3-Phase Output Line Reactor Mounting Dimension

Dimension(±5mm)
L	D	W	W1	H	A×B
230	150	170	88	220	11×18

3-Phase Output Line Reactor Circuit Diagram

Tips: What are the advantages of RDDLZ output line reactors?

Increase the output high-frequency impedance, reduce the high-frequency leakage current, and protect the inverter.
Effectively reduce the high dv/dt output of the IGBT and extend the life of the motor.
Suppress the harmonic current output by the inverter.
Compensate for the influence of long-line distributed capacitance and extend the distance between input and output.
Reduce the noise of the motor.
