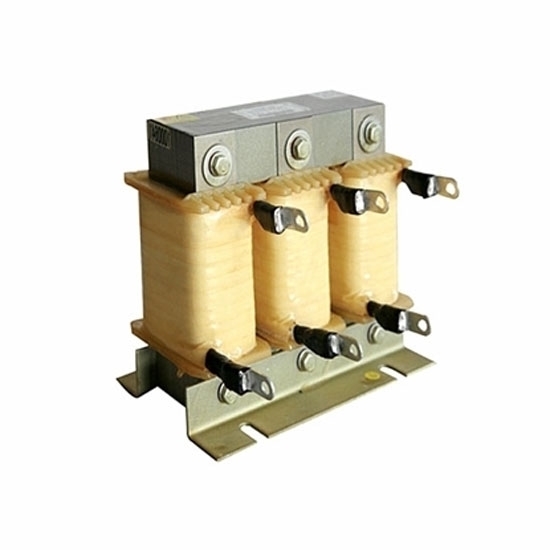

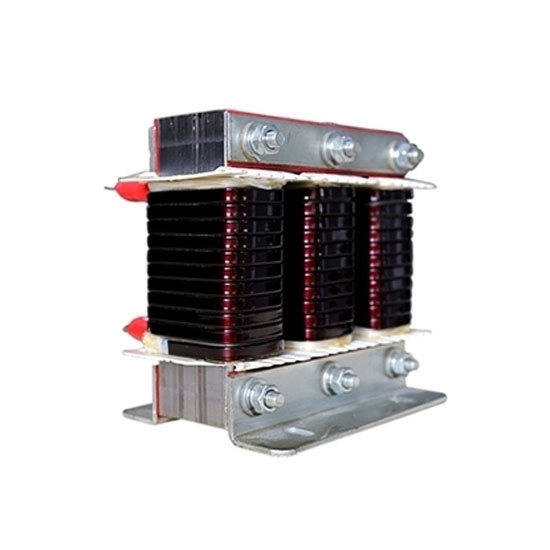

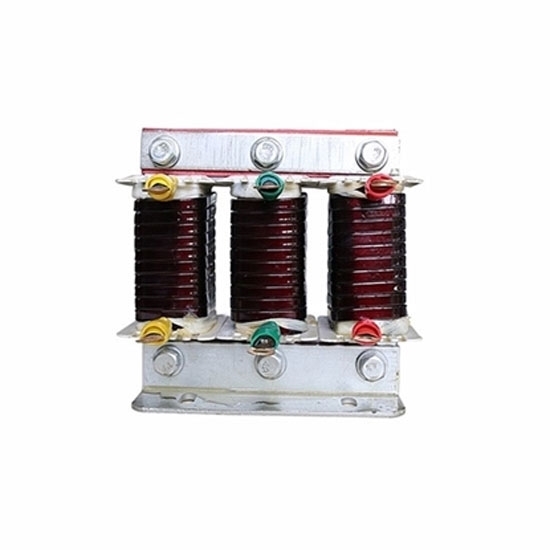

15 Hp (11 KW) AC Line Reactor, 3 Phase Output

0 reviews • Write a review

from

$314.89

Ex Tax: $314.89

Stock: In Stock
Model: RDDLZ-OLR-011
Weight: 1.00
SKU: RDDLZ-OLR-011

Available Options

Material

Output AC Voltage (V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The 30 amps output line reactor is available at 220V, 380V, 400V, 410V, 440V, 460V, or 480V, 3 phase line reactor for vfd, with two materials to choose from. 15 hp output line reactor is characterized by high performance and low cost.

11 kW 3-Phase Output Line Reactor Specifications

Basic	Model	RDDLZ-OCR-0030-0M23-0.4SC
	Recommended VFD Model	GK3000-4T0110G (15 hp three phase VFD)
	Phase	3 Phase
	Power	15 hp (11 kW)
	Weight	4 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	30 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.23 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

3-Phase Output Line Reactor Mounting Dimension

Dimension(±5mm)
L	D	W	W1	H	A×B
155	95	90	70	130	6×15

3-Phase Output Line Reactor Circuit Diagram

Tips: How to solve the local heating of line reactor?

If line reactor has local heating, reduce the loads of line reactor and strengthen ventilation. If necessary, adopt provisional measures, such as strengthening the blowing of fan. Eliminate faults when the opportunity of outage comes.

How to solve the fracture of porcelain support insulator of line reactor?

If the concrete column is damaged or porcelain support insulator has cracks, coils buldge and are earthed, adopt standby line reactor, disconnect and repair breaker. After the fault is eliminated, put it into operation.
