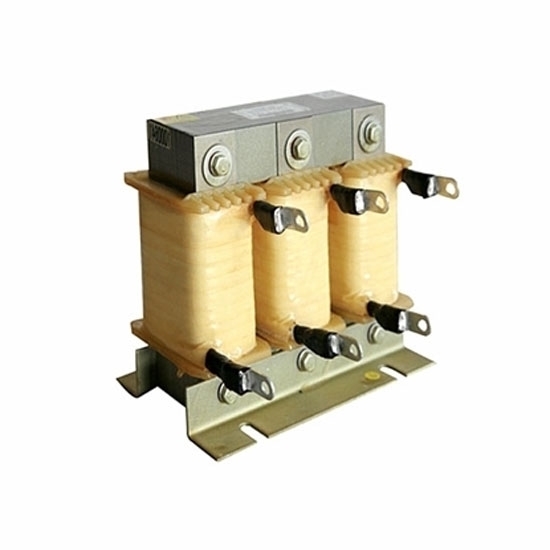

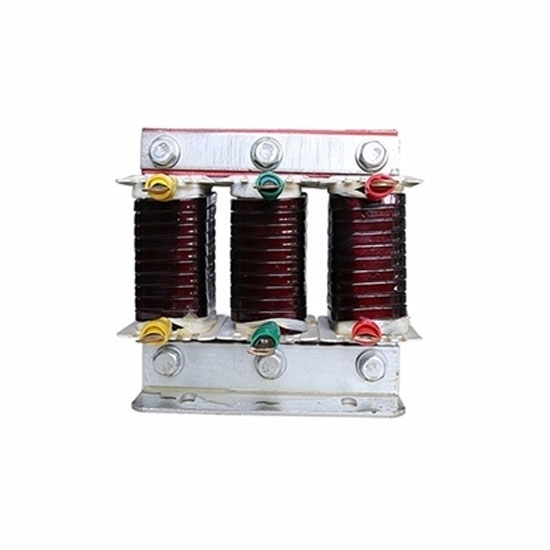

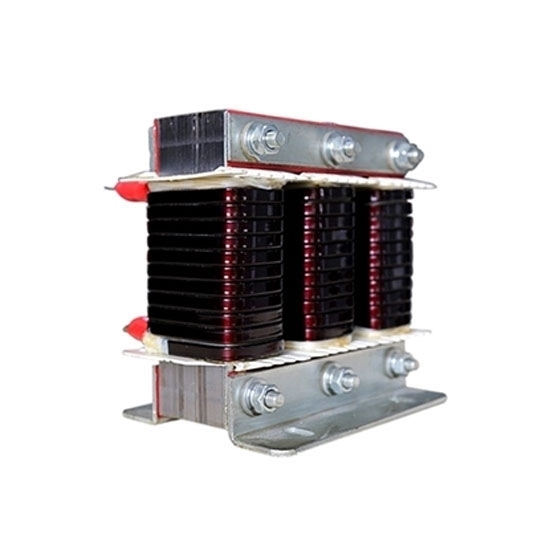

100 Hp (75 KW) AC Line Reactor, 3 Phase Output

0 reviews • Write a review

from

$653.12

Ex Tax: $653.12

Stock: In Stock
Model: RDDLZ-OLR-075
Weight: 1.00
SKU: RDDLZ-OLR-075

Available Options

Material

Output AC Voltage (V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 phase AC output line reactor work frequency 50/60Hz, 100 hp or 75 kW, has its unique features of simple and rugged construction, and minimum maintenance, high reliability and easy operation and low price.

3-Phase Line output Reactor Specifications

Basic	Model	RDDLZ-OCR-0200-035U-0.4SA
	Recommended VFD Model	GK3000-4T0750G (100 hp three phase VFD)
	Phase	3 Phase
	Power	100 hp (75 kW)
	Weight	17 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	150 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.047 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

75 kW 3-Phase Output Line Reactor Mounting Dimension

Dimension(±5mm)
L	D	W	W1	H	A×B
230	150	170	88	220	11×18

3-Phase Output Line Reactor Circuit Diagram

Tips: How to solve the surface discharging of line reactor?
When it is raining, the parts with low temperature rise have conductive water film and high surface leakage current. Near end backflow lead row with concentrated surface electric leakage and The spots on the surface of waist have dirty and wet charge and electric leakage traces. Hydrophobic coating can restrain leakage current and prevent any form of surface discharge effectively.

The end adopts the improvement measures of pre-burried annular current sharing electrode structure to solve the concentrated current leakage on lower end surface. Electric arcs can be deployed even without hydrophobic coating or when hydrophobic coating fails. As the currently best structure improvement measure, rainhat And rain protection layer can restrain surface current leakage to some extent.
