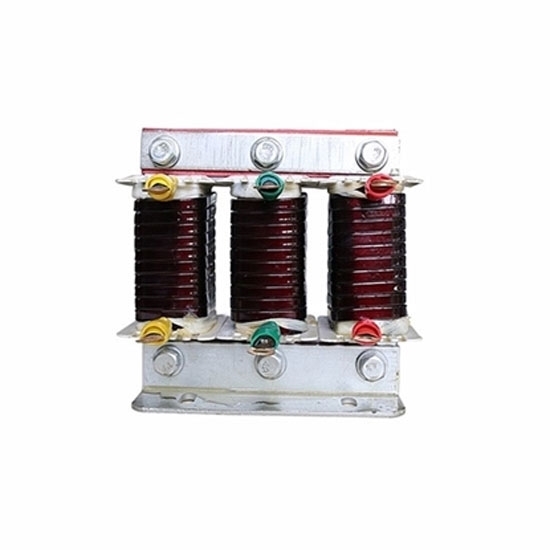

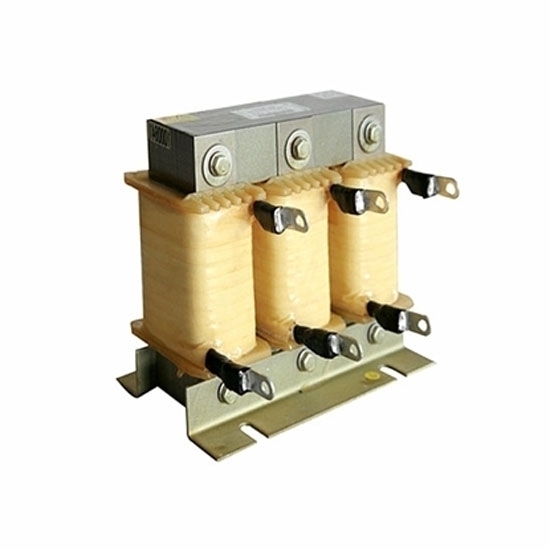

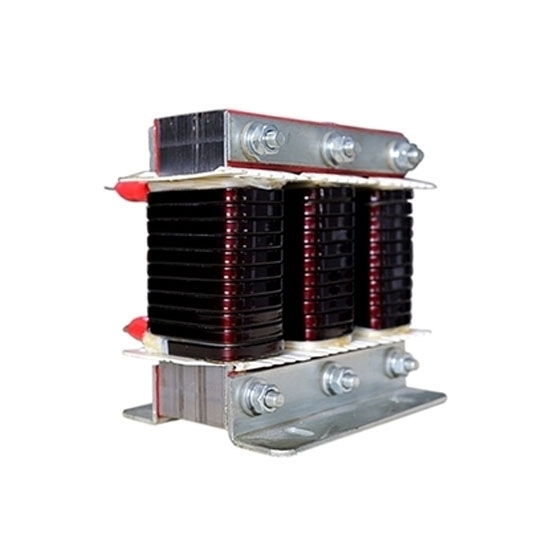

3-phase AC output line reactor power rated current 5A, available at 50/60Hz working frequency, choose from 380V, 220V, 240V, 400V, 415V, 440V, 460V or 480V, long life span and high efficiency, low price and high quality.

3-Phase Line Output Reactor Specifications

2 hp 3-Phase Output Line Reactor Mounting Dimension

3-Phase Output Line Reactor Circuit Diagram

Tips: Functions of 3-Phase Line output Reactor

1. Capacitance effect on light no-load or light load lines to reduce transient overvoltage of power frequency.
2. Improve the voltage distribution on the long transmission line.
3. Make the reactive power in the line to be balanced as far as possible in the light load, prevent the irrational flow of reactive power and reduce the power loss on the line.
4. Reduce the steady-state voltage of the power frequency on the high-voltage bus when the large unit is parallel with the system, so that the generator can be tied at the same time.
5. Avoid the self-excited resonance phenomenon that may occur in the long line of the generator belt.
6. When using the neutral point of the reactor through the small reactance grounding device, the reactor.
