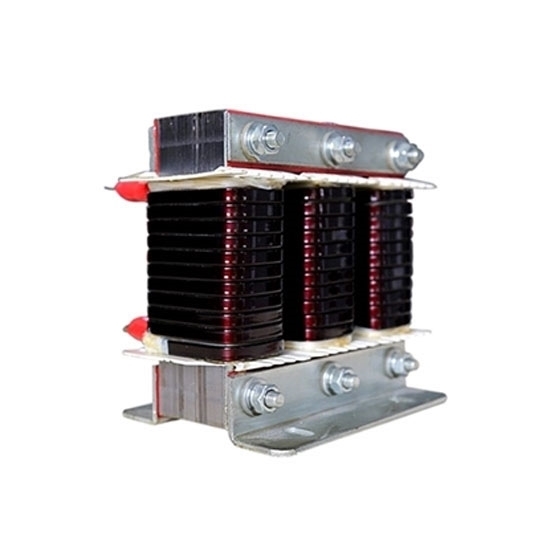

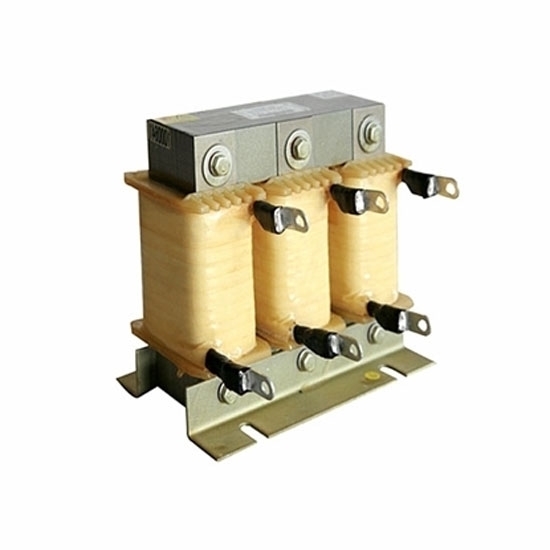

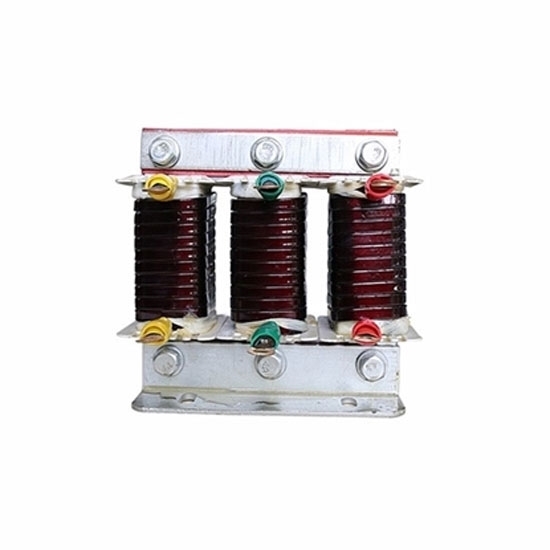

150 Hp (110 KW) AC Line Reactor, 3 Phase Output

0 reviews • Write a review

from

$896.87

Ex Tax: $896.87

Stock: In Stock
Model: RDDLZ-OLR-110
Weight: 1.00
SKU: RDDLZ-OLR-110

Available Options

Material

Output AC Voltage (V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

150 hp (110 kW) 3-phase AC output line reactor is characterized by rared current 250A, work freqency 50/60Hz, voltage and materials can be selected, cheap and easy to operate.

3-Phase Output Line Reactor Specifications

Basic	Model	RDDLZ-ACR-0090-0M16-0.4SC
	Recommended VFD Model	GK3000-4T1100G (50 hp three phase VFD)
	Phase	3 Phase
	Power	150 hp (110 kW)
	Weight	18 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	90 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.028 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

3-Phase Output Line Reactor Mounting Dimension

Dimension(±5mm)
L	D	W	W1	H	A×B
250	182	175	98	230	11×18

3-Phase Output Line Reactor Circuit Diagram

Tips: How to solve the surface discharging of line reactor?

Dry air parallel line reactor doesn’t have any form of surface discharge in dry state. When it is raining, the parts with low temperature rise have conductive water film and high surface leakage current. Near end backflow lead row with concentrated surface electric leakage and the spots on the surface of waist have dirty and wet charge and electric leakage traces. Hydrophobic coating can restrain leakage current and prevent any form of surface discharge effectively.

The end adopts the improvement measures of pre-burried annular current sharing electrode structure to solve the concentrated current leakage on lower end surface. Electric arcs can be prevented even without hydrophobic coating or when hydrophobic coating fails. As the currently best structure improvement measure, rainhat and rain protection layer can restrain surface current leakage to some extent.
