4" Pneumatic Wafer Butterfly Valve

0 reviews • Write a review

from

$402.29

Ex Tax: $402.29

Stock: In Stock
Model: RDDLZ-PBV-100
Weight: 1.00
SKU: RDDLZ-PBV-100

Available Options

Short Description

Butterfly Valve Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

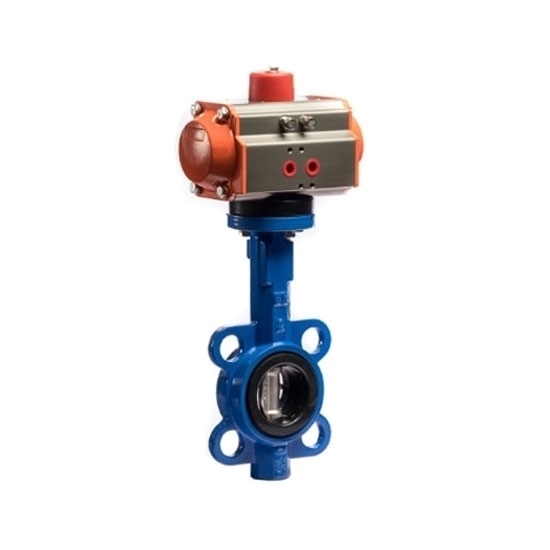

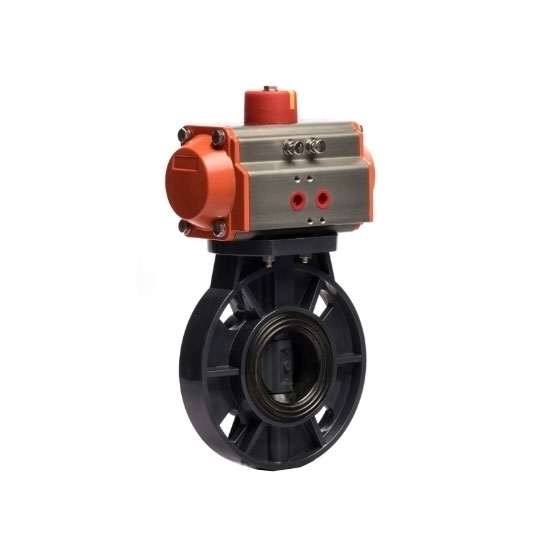

4 inch pneumatic butterfly valve consists of a pneumatic actuator and a cast iron or PVC butterfly valve that comes with a 100mm (DN100) port and high performance disc. Our air actuated butterfly valve can work at high temperature below 100 °C, which is a reliable device for flow control.

Specification

Butterfly Valve	Model	RDDLZ-PBV-100
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	4 inch (DN100, 100mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Pneumatic Actuator	Model	RDDLZ-AT075D
	Actuator Type	Double Acting
	Bore Size	75mm
	Air Pressure	0.25 - 0.8MPa, PN16
	Pressure Difference	0 - 1.0MPa
	Air Supply Port	1/4 inch
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	H1	H2	A	D	D1	N-φd
100	52	114	332	213	185	156	4-24.5

PVC Butterfly Valve Body Dimension (Unit: mm)

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H	L
D1	n-φe	D1	n-φe	D1	n-φe
175	8-19	190.5	8-19	180	8-18	228	102.5	135	135.5	13	54	40	8.5	70	17	275	213

Pneumatic Actuator Dimension (Unit: mm)

RDDLZ-AT075D

Q	A	B	C	D	E	F	G	H	I
Φ50/Φ70mm	213mm	93mm	42.5mm	50.5mm	130mm	102mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

Details

Tips: Difference between wafer type and lug type pneumatic butterfly valve

Pneumatic butterfly valve is a device that controls the flow of solids, gases and liquids in pipes, it is suitable for various fields from pharmaceutical to manufacturing industry and food processing. Butterfly valves are mainly divided into wafer butterfly valves and lug butterfly valves. However, what is the difference between them?

Pneumatic lug butterfly valve

Lug butterfly valves are mainly made of cast iron and stainless steel. They are used for bolting through fully threaded lugs located on the valve flange. The ear type butterfly valve adopts pneumatic actuator, and the material of its disc and valve seat can be customized according to the fluid medium.

Pneumatic Wafer Butterfly Valve

Wafer-style butterfly valves are designed with four holes aligned with connecting piping. They can be sandwiched between the pipe and two flanges. We offer wafer-style grease valves with pneumatic actuators that feature EPDM seats that provide a secure seal between the valve and the flange connection. The stainless steel disc enables the pneumatic wafer butterfly valve to control gases and liquids from -10°C to 120°C.
