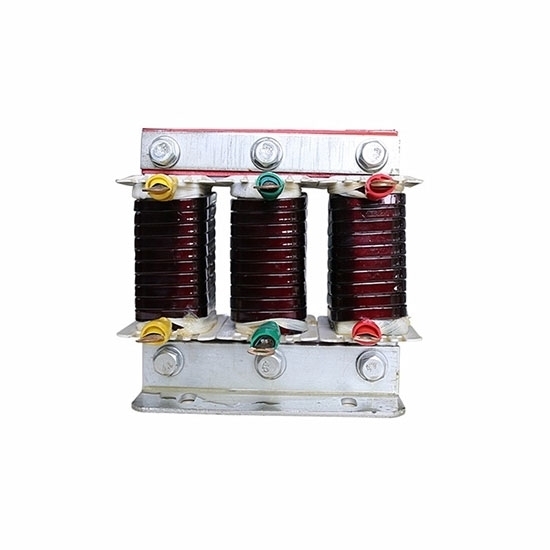

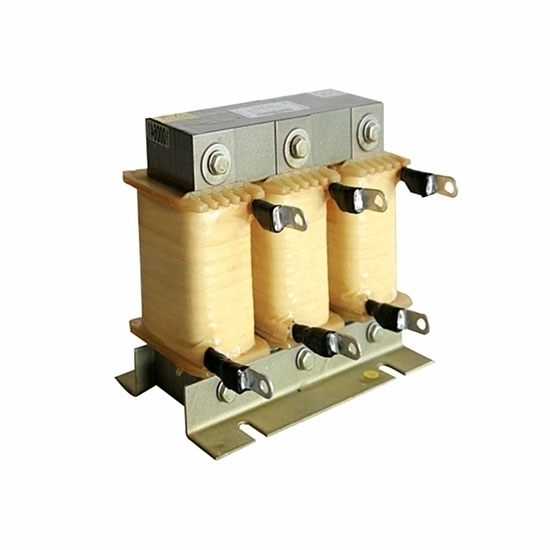

5 Hp (3.7 KW) AC Line Reactor, 3 Phase Input

0 reviews • Write a review

from

$272.89

Ex Tax: $272.89

Stock: In Stock
Model: RDDLZ-ILR-3d7
Weight: 1.00
SKU: RDDLZ-ILR-3d7

Available Options

Short Description

Material

Voltage (V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3.7 kW AC line reactor for VFD, 10A rated current, 3 phase input, 50Hz/60Hz operating frequency. This is a high performance and high reliability input reactor with multiple choices, not only full set accessories but also low price.

5 hp Input Line Reactor Specifications

Basic	Model	RDDLZACR-0010-1M40-0.4SC
	Recommended VFD Model	GK3000-4T0037G (5 hp three phase VFD)
	Phase	3 Phase
	Power	5 hp (3.7 kW)
	Weight	2.8 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	10 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	1.4 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

5 hp Input Line Reactor Size & Circuit Diagram

Dimension (±5mm)
L	D	W	W1	H	A×B
115mm	90mm	95mm	68mm	135mm	6×11

Tips: What about burnout of line reactor?

If the concrete column of AC input line reactor and porcelain support insulator crack or some coils of electric reactor burn out, check whether relay protection functions. If relay protection doesn’t function, disconnect the power supply of input line reactor manually, stop faulted input line reactor and start the standby input line reactor.
