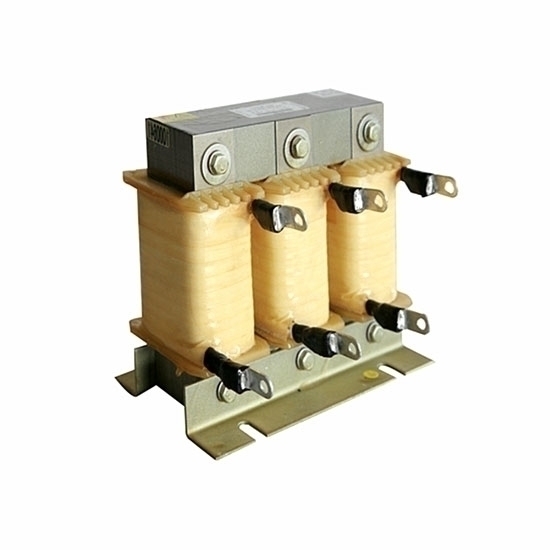

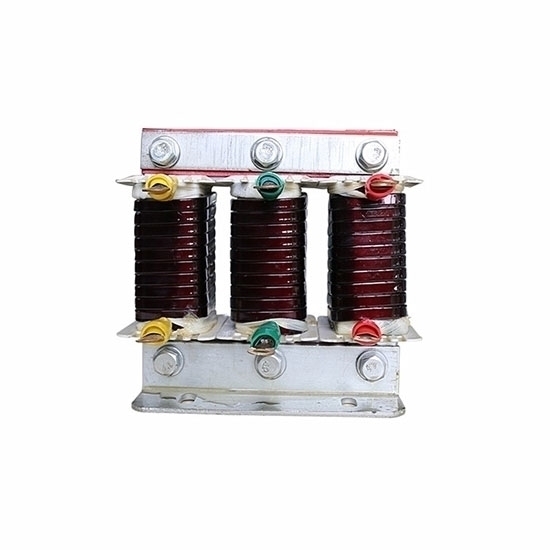

20 Hp (15 KW) AC Line Reactor, 3 Phase Input

20 Hp (15 KW) AC Line Reactor, 3 Phase Input
20 Hp (15 KW) AC Line Reactor, 3 Phase Input
20 Hp (15 KW) AC Line Reactor, 3 Phase Input
20 Hp (15 KW) AC Line Reactor, 3 Phase Input
20 Hp (15 KW) AC Line Reactor, 3 Phase Input
0 reviews • Write a review
from
$332.25
Ex Tax: $332.25
  • Stock: In Stock
  • Model: RDDLZ-ILR-015
  • Weight: 1.00
  • SKU: RDDLZ-ILR-015

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Sell vfd line reactor at the best price, 20 hp power, three phase, frequency 50Hz/60 Hz, has good insulation and good moisture-proof effect, safe and reliable operation.

20 hp Input Line Reactor Specifications

BasicModelRDDLZ-ACR-0040-0M36-0.4SC
Recommended VFD Model GK3000-4T0150G (20 hp three phase VFD )
Phase3 Phase
Power20 hp (15 kW)
Weight10 kg
Technical ParametersWork Valtage380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
Work Frequency50Hz/60 Hz
Rated Current40 A
Max Current1.5 Times the Rated Current, Continued 60s
Inductance Value0.36 mH
MaterialAluminium/Copper (Optional)
Voltage Drop2%
Noise≤65dB
Insulation ClassClass F, H
Protection ClassIP00-IP22
Insulation Resistor≥100MΩ
Working EnvironmentOperation Environment-10℃~+45℃
Temperature Rise≤85K
Humidity≤90%RH, without condensation
Running Ambient Temperature-25℃~+45℃
Altittude≤2000m

 20 hp Input Line Reactor Size & Circuit Diagram


Dimension (±5mm)
LDWW1HA×B
155mm95mm140mm76mm135mm6×15

Tips:

VFD and governor are often subjected to shocks from surge currents and surge voltages during use, which can seriously damage the performance and service life of the VFD and governor, so install an input reactor in front of it. It is used to suppress surge voltage and surge current, protect VFD and governor, prolong its service life and prevent harmonic interference. At the same time, since VFD and governor are regulated by frequency conversion, they are adjusted. At high speeds, high-order harmonics and waveform distortion are often generated, which will affect the normal use of the equipment. To this end, a line reactor must be installed at the input end to improve the power factor of the VFD and suppress harmonic currents. In addition to harmonic voltage and harmonic current, improve grid quality.
