10kVA Control Transformer, 230V To 110/36V

0 reviews • Write a review

from

$1,721.54

Ex Tax: $1,721.54

Stock: In Stock
Model: RDDLZ-T-BK10KVA
Weight: 1.00
SKU: RDDLZ-T-BK10KVA

Available Options

Winding Material

Primary Voltage (AC)

Secondary Voltage (AC)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

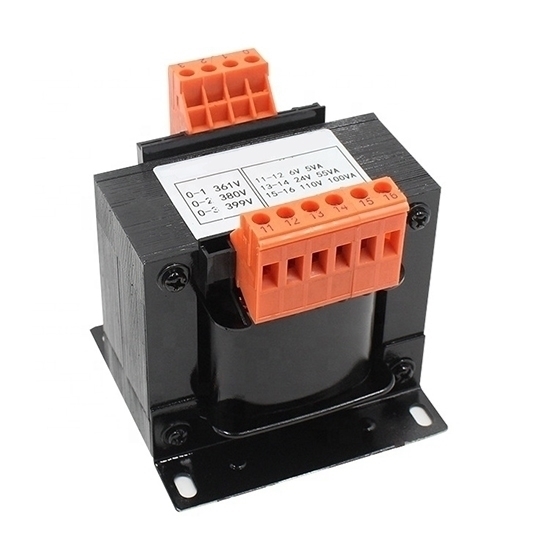

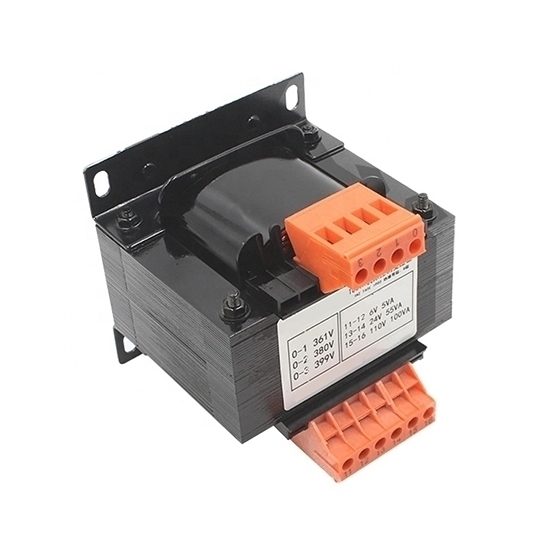

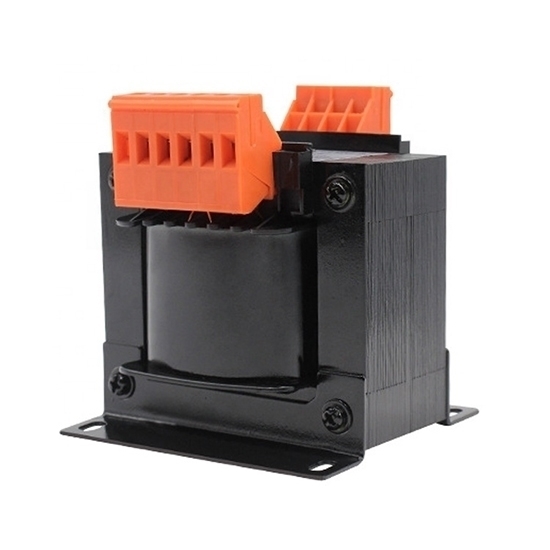

230V to 110/36V 1 phase control transformer on sale, features 10kVA capacity, high quality terminal block, high temperature resistance, worked as control power supply for mechanical equipment and general electrical appliance. Primary and secondary voltages are customizable and but should be noted that primary voltage not exceed 500V, secondary voltage not exceed 240V.

Specifications

Product Name	Single phase control transformer
Product Model	RDDLZBK-10KVA
Winding Material*	Enameled copper wire or enameled aluminum wire (Optional)
Total Output Capacity	10kVA Note: (If your output includes multiple voltage levels, please email us with the capacity of each output. The total capacity should be the sum of all individual outputs. For example, if your outputs are aV and bV, then aV (capacity) + bV (capacity) = 10kVA).
Primary Voltage* (VAC)	110, 120, 208, 220, 230, 240, 380, 400, 480, 110/220, 120/240, 240/480...(Optional and Customized)
Secondary Voltage* (VAC)	6, 12, 24, 36, 48, 110/48, 120/24, 208/36, 220/48, 230/36, 240/120, 120/24/12, 110/36/24, 127/36/6, 208/48/36/24...(Optional and Customized)
Frequency	50 / 60Hz
Insulation Level	F / H
Withstand Voltage Test	Primary to secondary 2.5KV/min
	Primary to safety ground 2.5KV/min
	Secondary to safety ground 1.5KV/min
Insulation Resistance	Primary to secondary 2500V>100 megohm
	Primary to safety ground 2500V>100 megohm
	Secondary to safety ground 1500V>100 megohm
Induction Withstand Voltage Test	125Hz/ 800V/min
Ground Resistance	25A<80 milliohm
Cooling Method	Natural or air cooling
Transformation Ratio	<3%
Air Carrying Current	<6%
Impedance Voltage	about 6%
Total Losses	0.1
Efficiency	80%~99%
Operating Temperature	-25℃~40℃ (40℃, 93% RH, 56 days)
Storage Temperature	-25℃~100℃ (40℃, 93% RH, 56 days)
Certificate	CE, ISO
Warranty	12 months
Size	Overall size: 290240330mm, Hold distance for installation: 150180mm, Installation hold: 2010mm
Weight	80kg

Schematic diagram illustration

Control transformer dimension

Overall size (mm)			Hole distance for installation (mm)		Installation hole (mm)
B	E	D	A	C	K x J
290	240	330	150	180	20 x 10

Tips: How to dry a control transformer？

There are two methods of controlling transformer drying: One is the induction heating method, and the other is hot air drying method.

1. Induction heating method

This method is to place the body in the oil tank, apply power frequency current to the outer winding coil, and use the heat of eddy current loss in the oil tank wall to dry. At this time, the temperature of the box wall shall not exceed 115℃ ~ 120 ℃, and the temperature of the body shall not exceed 90℃ ~ 95 ℃. For the convenience of winding the coil, the number of turns of the coil shall be as small as possible or the current shall be as small as possible. Generally, the current shall be 150A, and the conductor can use 35-50mm conductor. The oil tank wall can be padded with several asbestos strips, and the wires are wound on the asbestos strips.

2. Hot air drying method

This method is to put the body in the drying room and dry it with hot air. The temperature of hot air at the inlet shall gradually rise, and the maximum temperature shall not exceed 95 ℃. A filter shall be installed at the inlet of hot air to prevent sparks and dust from entering people. Do not blow hot air directly to the body. Try to blow it evenly from the bottom of the body to all directions, so that the moisture will be released from the vent hole of the box cover.
