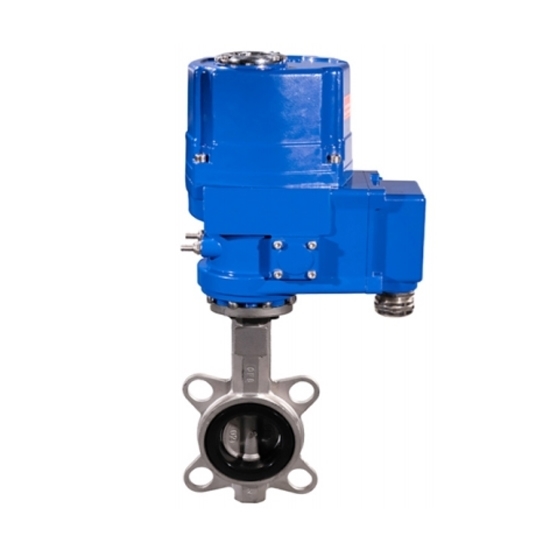

3" Explosion Proof Stainless Steel Butterfly Valve

0 reviews • Write a review

from

$1,139.63

Ex Tax: $1,139.63

Stock: In Stock
Model: RDDLZ-BVEP-3
Weight: 1.00
SKU: RDDLZ-BVEP-3

Available Options

Short Description

Voltage

Input Signal

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This butterfly valve cannot be used for drinking water.

Operates on a single-phase AC220V, 50/60 Hz power supply or three phases AC380V, 50/60 Hz, offering flexibility in power options. Whether you're dealing with liquids, gases, or corrosive mediums, our 2-inch Stainless Steel Butterfly Valve with explosion-proof features is the reliable choice for enhanced safety and minimal flow resistance.

Feature

Manual and automatic integration: Electric and manual can control the valve switch. Respond to power outages by manually controlling the switch.
New electric head: Accurate control of media flow with precise scales, smaller size and easier wiring.
Stainless steel body: high-quality leak-proof seal.

Specification

Actuator Technical Parameters

Input & Output Signal	DC 4-20mA, DC 0-10V, DC 1-5V (Optional)
Optional Voltage	Single phase AC220V 50/60 Hz or three phases AC380V 50/60 Hz

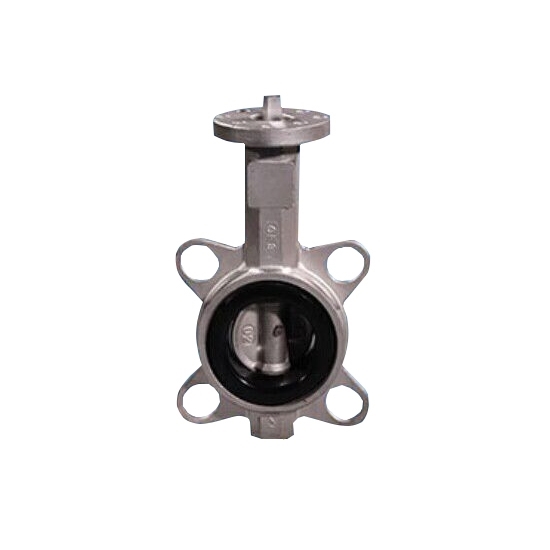

2 inch Stainless Steel Butterfly Valve, Explosion Proof Parameters

Size	DN80
Body Material	Stainless Steel (CF8, CF8M)
Connection Type	Wafer
Pressure Rating	PN1.0
Structure Type	Median Line
Seat Material	PDEM: -10℃ ~120℃
Disc Material	Stainless Steel (CF8, CF8M)
Stem Material	Stainless Steel (CF8, CF8M)
Power Supply	Single Phase AC220V 50/60 Hz or Three Phases AC380V 50/60 Hz
Applicable Medium	Water, Liquids, Gas, Oil, Powder, Steam, Acid-base Corrosive Medium.

Dimension (Unit: mm)

DN	Inch	D	D1	D2	L	H	n-φd
80	3"	78.8	127	160	45	232	4-φ18

Tips: Is the valve suitable for both on/off and throttling applications?

Yes, butterfly valves are versatile and can be used for both on/off and throttling applications. Let's explore in detail:

On/Off Applications: Butterfly valves are commonly used for on/off service where the valve is either fully open or fully closed. The quarter-turn operation of the valve (90 degrees) makes it well-suited for quick and efficient isolation of flow.
Throttling Applications: Butterfly valves can also be used for throttling or controlling the flow rate. While they are not as precise in throttling applications as certain other types of valves (such as globe valves), they can still be used effectively for moderate throttling requirements.
