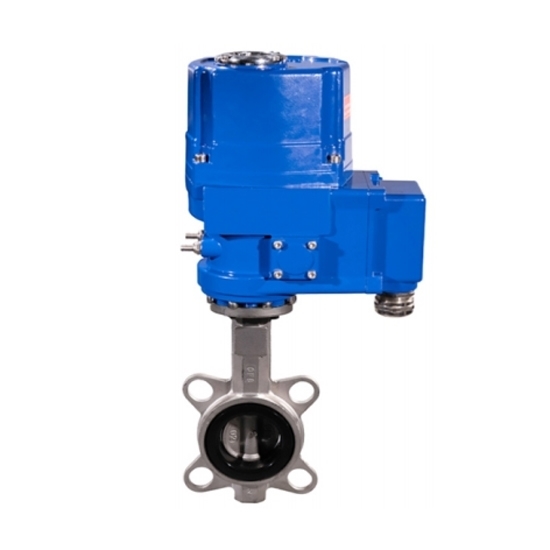

6" Explosion Proof Stainless Steel Butterfly Valve

0 reviews • Write a review

from

$1,430.95

Ex Tax: $1,430.95

Stock: In Stock
Model: RDDLZ-BVEP-6
Weight: 1.00
SKU: RDDLZ-BVEP-6

Available Options

Short Description

Voltage

Input Signal

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This butterfly valve cannot be used for drinking water.

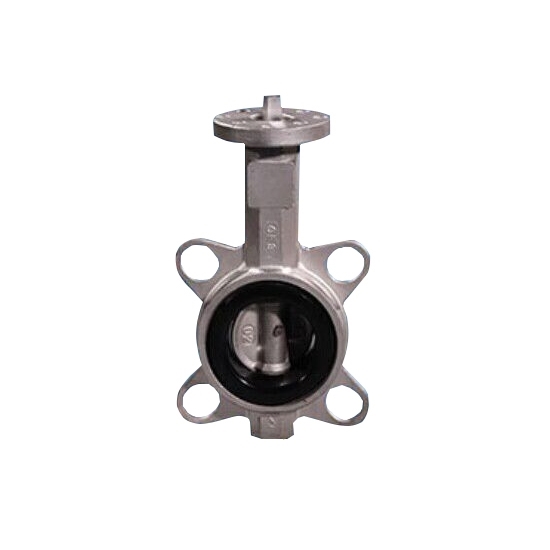

Available in single-phase AC220V or three-phase AC380V, crafted from high-quality stainless steel (CF8, CF8M) with a wafer connection, this valve is designed to withstand varying pressure conditions (PN1.0) and ensures secure control of water, liquids, gas, oil, powder, steam, and corrosive substances.

Feature

Manual and automatic integration: Electric and manual can control the valve switch. Respond to power outages by manually controlling the switch.
New electric head: Accurate control of media flow with precise scales, smaller size and easier wiring.
Stainless steel body: high-quality leak-proof seal.

Specification

Actuator Technical Parameters

Input & Output Signal	DC 4-20mA, DC 0-10V, DC 1-5V (Optional)
Optional Voltage	Single Phase AC220V 50/60 Hz or Three Phases AC380V 50/60 Hz

2 inch Stainless Steel Butterfly Valve, Explosion Proof Parameters

Size	DN150
Body Material	Stainless Steel (CF8, CF8M)
Connection Type	Wafer
Pressure Rating	PN1.0
Structure Type	Median line
Seat Material	PDEM: -10℃ ~120℃
Disc Material	Stainless Steel (CF8, CF8M)
Stem Material	Stainless Steel (CF8, CF8M)
Power Supply	single phase AC220V, 50/60 Hz or three phases AC380V, 50/60 Hz
Applicable Medium	Water, Liquids, Gas, Oil, Powder, Steam, Acid-base Corrosive Medium.

Dimension(Unit:mm)

DN	Inch	D	D1	D2	L	H	n-φd
150	6"	150	206	240	54	296	4-φ23

Tips: What does "explosion-proof" mean in 6" stainless steel butterfly valve?

Hazardous Environments: The designation "explosion-proof" is particularly relevant in industries where flammable substances such as gases, vapors, or combustible dust are present. This includes industries like petrochemical, chemical, oil and gas, and certain manufacturing processes.
Preventing Ignition: The valve is constructed and engineered to prevent sparks, arcs, or any other potential sources of ignition that could lead to an explosion in the surrounding atmosphere. This is crucial for ensuring the safety of both equipment and personnel.
Robust Construction: Explosion-proof valves are built with robust materials and construction techniques. In the case of the 6" Stainless Steel Butterfly Valve, the stainless steel material enhances durability and corrosion resistance, making it suitable for harsh industrial environments.
Sealed Design: The valve is designed to be sealed tightly to prevent the entry of explosive gases or dust into its internal components. This helps in containing any potential sources of ignition within the valve itself.
