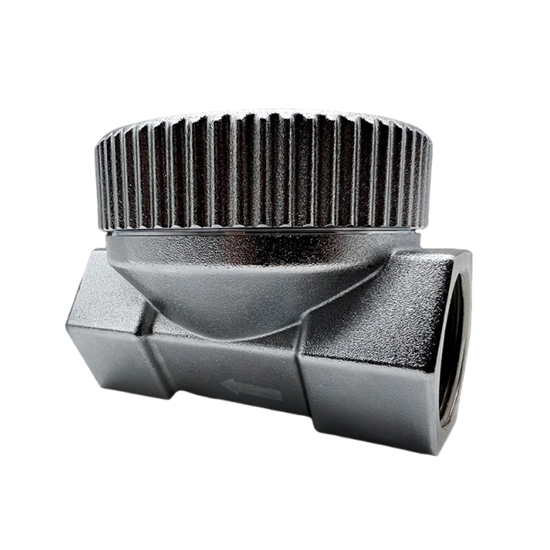

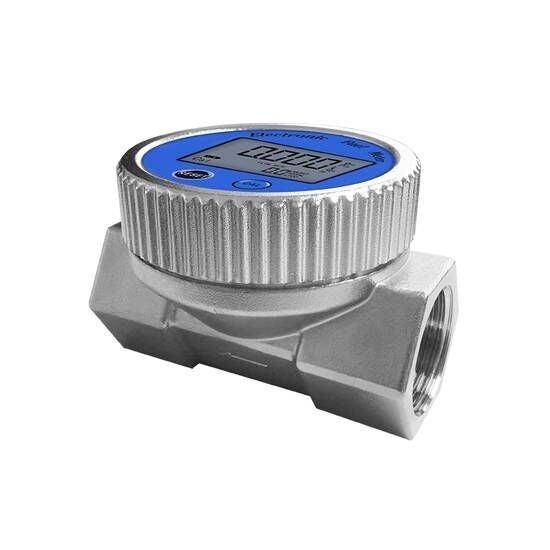

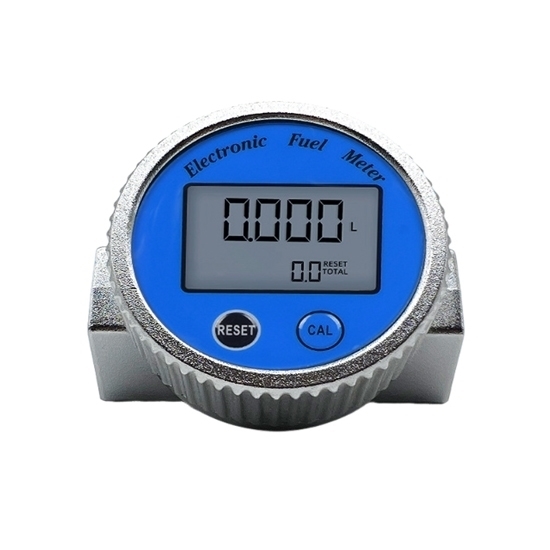

Waterproof Turbine Flow Meter For Diesel/Fuel/Water

0 reviews • Write a review

from

$82.89

Ex Tax: $82.89

Stock: In Stock
Model: RDDLZ-FLOW-KW24
Weight: 1.00
SKU: RDDLZ-FLOW-KW24

Available Options

Nominal Diameter

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The waterproof digital turbine flow meter has flow rates of 4-50L/min (3/4 inch), 9-100L/min (1 inch), and it is a versatile tool that can meet a wide range of flow measurement needs.

Specification

Model	RDDLZ-FLOW-KW24
Nominal Diameter	3/4 inch	1 inch
Connection	Female threaded connection
Measuring Accuracy	±1%
Measuring Unit	QTS, PTS, L, GAL, m³
Measuring Medium	Diesel, gasoline, kerosene, methanol, water, etc.
Flow size	4-50L/min	9-100L/min
Component Material	Stainless steel, aluminum alloy
Maximum Working Pressure	0.6Mpa
Single Flow Rate Range	99999
Cumulative Counting Range	29999999
Weight	0.325kg	0.321kg

Note: This turbine flowmeter cannot be used to measure gas.

Feature

IP67 Level Waterproof: Able to work normally underwater, the whole machine is fully sealed, excellent waterproof performance.
Aluminum Alloy Material: Compact structure, high quality aluminum alloy process manufacturing, strong and durable.
High-performance Turbine: Accurate measurement of large flow rate, not easy to be clogged.

Dimension (unit: mm)

Detail

Applications

Tips: Is the waterproof digital turbine flow meter suitable for outdoor applications?

Yes, the waterproof digital turbine flow meter is specifically designed to withstand outdoor conditions. Its waterproof rating ensures reliable operation even in wet or damp environments, making it suitable for outdoor applications such as irrigation systems and wastewater management.

However, it's essential to consider the environmental conditions of the specific outdoor application where you intend to use the flow meter. Factors such as temperature fluctuations, exposure to direct sunlight, dust, and other environmental elements can affect the performance and lifespan of the flow meter.
