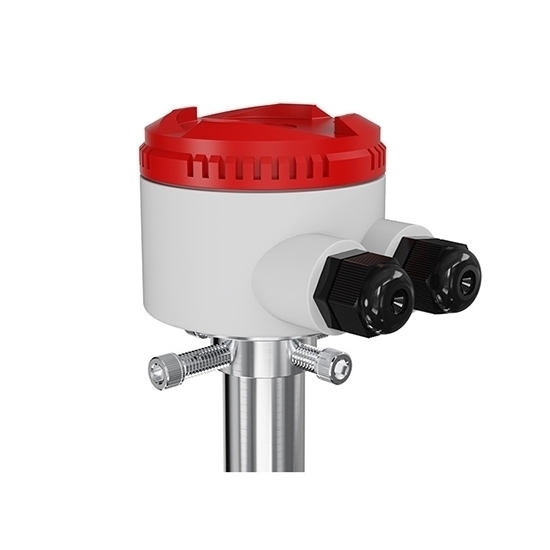

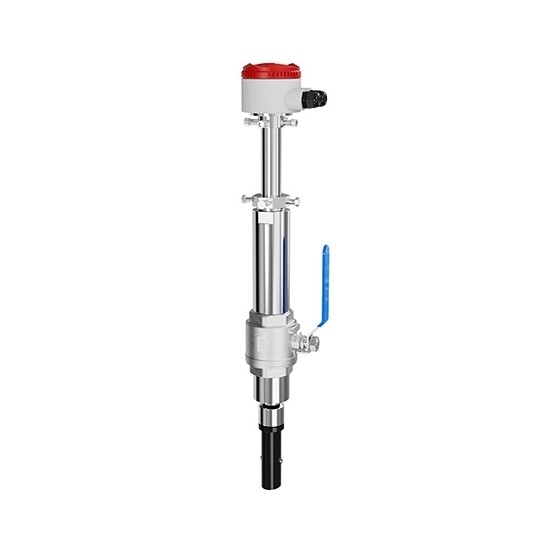

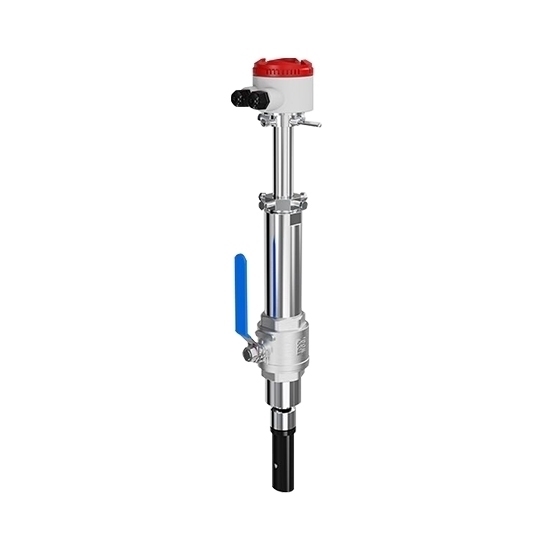

Insertion Electromagnetic Water Flow Meter, DN100-DN3000

0 reviews • Write a review

from

$2,257.41

Ex Tax: $2,257.41

Stock: In Stock
Model: RDDLZ-FLOW-IEFM
Weight: 1.00
SKU: RDDLZ-FLOW-IEFM

Available Options

Voltage

Type

Port Size

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The insertion magnetic water flow meter is a type of flowmeter divided by structure. When a conductive medium is flowing through, an induced voltage is generated.

Specification

Model	RDDLZ-LDGC-SUP-L
Port Size	DN100-3000 mm (port size more than DN1000 please contact us)
Working Pressure	1.6 Mpa
Working Temperature	≤70°C
Upper Limit Range	1-10 m/s
Accuracy of Measurement	±2.5%
Conductivity	≥50%
Medium	water
Electrode Material	304, 304L, 316, 316L, Hastelloy alloy, titanium
Converter Output	4-20 mA output
Frequency Output	pluse output
Communication Output	RS485
Power Supply	24V DC, 220V AC
Maximum Distance	≤50m
Cable	RVVP double core shielded cable or STT3200 four core three shield cable
Compact Type	IP65 / IP68
Buried Depth	Not deeper than 5 meters
Repetitiveness	0.0016
Maxium Measurement Error	±0.1°C

Features

Wide Compatibility: Suitable for environmental protection sewage/municipal water supply/agricultural irrigation/water conservancy and other fields, not affected by viscosity, temperature, pressure and so on.
Convenient Installation: Flow meter installation process without disconnection, maintenance, easy installation.
304 Stainless Steel Material: The flow meter is made of corrosion-resistant stainless steel material is easy to maintain and has a long service life.
Bidirectional Flow Measurement: Adopting bi-directional measurement system, easy to set the direction of flow measurement, making the measurement more convenient.

Dimension (unit: mm)

DN	a	bf	D	Do	n*A	Pressure Resistance
100	250	410	215	180	8*18	1.6 MPa
125	250	440	245	210	8*18
150	300	469	280	240	8*23
200	350	522	335	295	12*23
250	450	824	405	355	12*25
300	500	624	440	400	12*23	1 MPa
350	550	1029	500	460	16*23
400	600	737	565	515	16*25
450	600	786	615	565	20*25
500	600	839	670	620	20*25
600	600	944	780	725	20*30
700	700	1052	895	840	24*30
800	800	1164	1015	950	24*33
900	900	1264	1115	1050	28*33
1000	1000	1374	1230	1160	28*36
1200	1200	1589	1405	1340	32*33	0.6 MPa

Structure

Tips: Why should maintain insertion electromagnetic flow meter?

The insertion electromagnetic flow meter is simple to operate, but long-term use will still make the electrode stain or damage, so to ensure the accuracy of measurement, regular maintenance of the insertion electromagnetic flowmeter is very necessary. For the plug-in electromagnetic meteor meter, each maintenance must be closed system, the liquid in the pipeline is emptied, can be disassembled.
