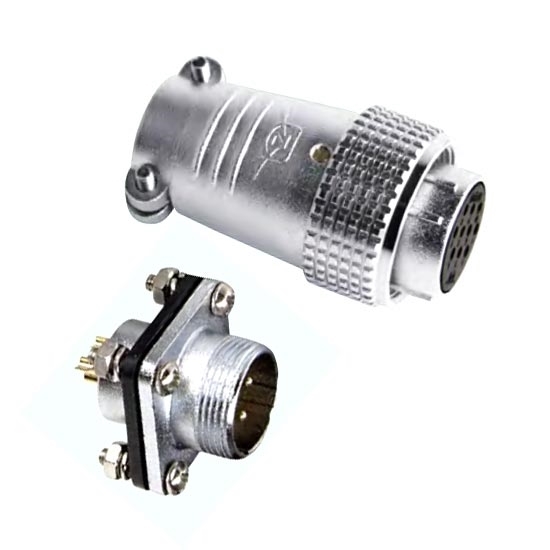

Circular Connector, 15/17/19 Pin, M26

0 reviews • Write a review

from

$56.67

Ex Tax: $56.67

Stock: In Stock
Model: RDDLZ-CIRCN-P24
Weight: 1.00
SKU: RDDLZ-CIRCN-P24

Available Options

Short Description

Item

Number of Pins

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Circular connector has 15/17/19 pin to select.

Specification:

Model	RDDLZ-CIRC-P24
Weight	0.5kg
Coupling mode	Threaded coupling
Shell material	Zinc base alloys with chromeplate
Insert material	Bakelite
Contact material	Copper (silver plating or gold plating)
Termination	Solder
Mating cycle	500 times
Temperature range	-20~+85℃
Cable diameter	≤Φ7~≤Φ13mm
Protection class	IP55

Technology parameter:

Number of pins	15	17	19
Rated current/voltage	5A-250V	5A-250V	5A-250V
Operating voltage	AC 300V	AC 300V	AC 300V
Withstanding voltage (in 1 minute)	AC 1500V	AC 1500V	AC 1500V
Insulation resistance at DC 500V (MΩ)	2000	2000	2000
Contact resistance at 1A (MΩ)	5	5	5
Solder cup diameter Ф (mm)	1.2	1.2	1.2
Pin diameter Ф (mm)	1	1	1

Pin assignments:

Dimensional drawing (unit: mm):

Note: Dust cap is not in the packing list.
Tips: Work environment of circular connector
Environmental temperature and work temperature: The metal materials and insulating materials of circular connector determine its environmental temperature or work temperature. High temperature can damage insulating materials and lead to decreased insulation resistance and withstand voltage resistance. High temperature can deprive elasticity of metal elastic contact pairs, and accelerate their oxidization and coating deterioration.
Corrosion environment: In the salt-spray environment, circular connector lack of corrosion resistant metal surface can lead to the rapid deterioration of performance. The connector with silver plating contact pairs is not suitable for the environment with a certain concentration of SO2. In the wet and hot environment, mildew is important problem. In such environments, the circular connector with salt fog and mould resistant performance must be chose. The circular connector with highest level of salt fog resistant performance should be chose in maritime environment.
