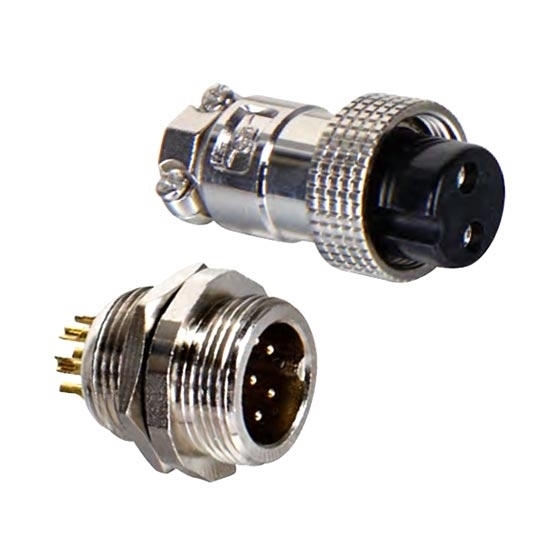

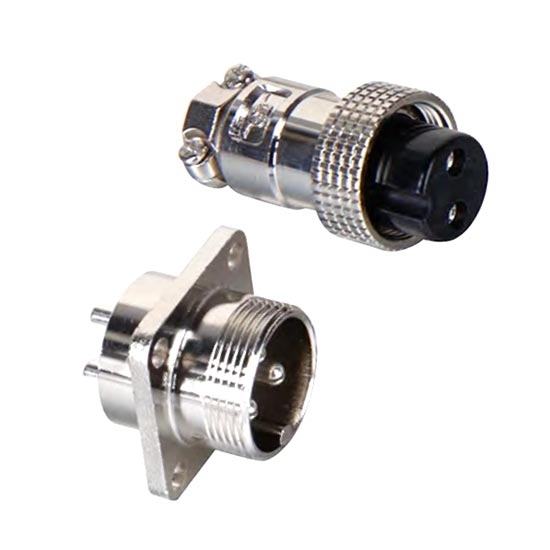

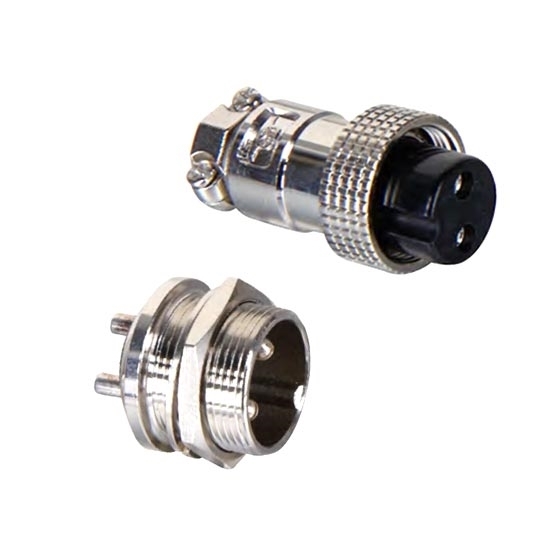

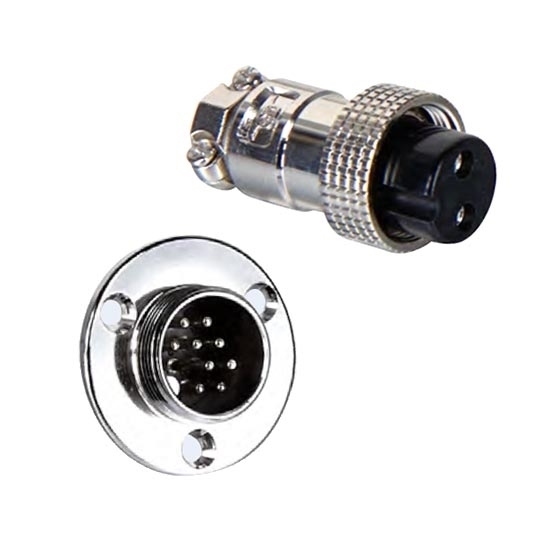

Circular Connector, 2/3/4/10/11/12/14 Pin, M19

0 reviews • Write a review

from

$49.52

Ex Tax: $49.52

Stock: In Stock
Model: RDDLZ-CIRCN-19M
Weight: 1.00
SKU: RDDLZ-CIRCN-19M

Available Options

Item

Number of Pins

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Circular connector has 2/3/4/5/6/7/8/9/10/11/12/14 pin to select.

Specification:

Model	RDDLZ-CIRC-19M
Weight	0.5kg
Coupling mode	Threaded coupling
Shell material	Zinc base alloys with nickel plate
Insert material	Bakelite
Contact material	Copper (silver plating or gold plating)
Termination	Solder
Mating cycle	500 times
Temperature range	-20~+85℃
Cable diameter	≤Φ9.5mm
Protection class	IP55

Technology parameter:

Number of pins	2	3	4	5	6	7	8	9	10	11	12	14
Rated current/voltage	35A-125V	35A-250V	35A-250V	35A-150V	16A-150V	16A-150V	10A-150V	10A-150V	10A-150V	10A-150V	10A-150V	10A-150V
Operating voltage	AC 250V	AC 250V	AC 250V	AC 200V	AC 200V	AC 200V	AC 200V	AC 200V	AC 200V	AC 200V	AC 200V	AC 200V
Withstanding voltage (in 1 minute)	AC 1500V	AC 1500V	AC 1500V	AC 1000V	AC 1000V	AC 1000V	AC 1000V	AC 1000V	AC 1000V	AC 1000V	AC 1000V	AC 1000V
Insulation resistance at DC 500V (MΩ)	1500	1500	1500	1500	1500	1000	1000	1000	1000	1000	1000	1000
Contact resistance at 1A (MΩ)	5	3	3	3	3	3	3	3	3	3	3	3
Solder cup diameter Ф (mm)	0.8	2	2	2	1.2	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Pin diameter Ф (mm)	1.2	2.95	2.95	2.95	2.95	2	2	1.5	1.5	1.5	1.5	1.5

Pin assignments:

Dimensional drawing (unit: mm):

Note: Dust cap is not in the packing list.
Tips: Termination way of circular connector
Termination way refers to the connection way between the contact pair of electrical connector and wire or cable.
Solder termination: Wire is welded in the solder cup of contact.
Crimp termination: Wire is crimped inside the crimping cylinder of contact, which can be separated from circular connector by contact withdrawal tool. The dismountable contact can both plug in the front end and back end of circular connector. Dismountable contact in the back end is suggested.
The use environment and requirements for field repair are considered in the choice of termination way.
