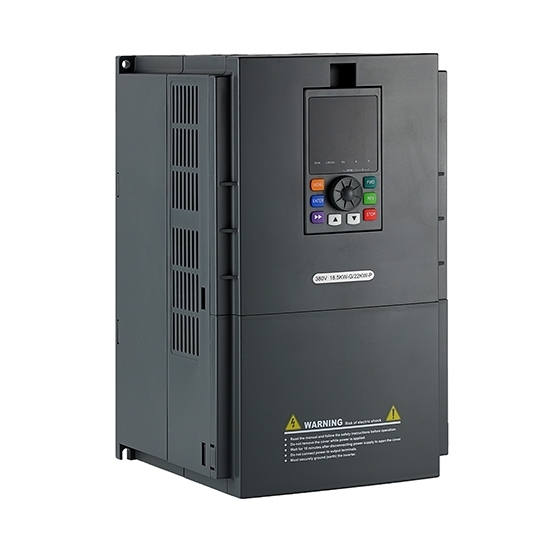

25 Hp VFD, 1-Phase 220V To 3-Phase 380V VFD

0 reviews • Write a review

from

$2,176.48

Ex Tax: $2,176.48

Stock: In Stock
Model: GK3000-CS0185G
Weight: 1.00
SKU: GK3000-CS0185G

Available Options

Short Description

Input Voltage (Single Phase)

Output Voltage (Three phase)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1-phase 220V to 3-phase 380V VFD for sales, 50Hz/ 60Hz input frequency, 0-400Hz output frequency, has RS485 communication port. 25 hp VFD can be used for constant torque loads and a phase converter.

Specification:

Basics	Model	GK3000-CS0185G
	Capacity	25 hp (18.5 kW)
	Shipping weight	22 kg
	Dimension	530320235 mm
	Installation size	511*200 mm
I/O Feature	Rated current	37 A
	Input voltage	1 phase 220~240V AC
	Input frequency	50Hz/ 60Hz
	Output voltage (Optional)	3 phase AC 380V/ 400V/ 415V/ 440V/ 460V (Note: 440V, 460V output voltage only for the 1-phase 240V input VFD)
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: RDDLZ VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: How to run 3-phase 380V motor on 220V power supply?

When the variable frequency drive turns the three-phase motor on the occasion with only 220V household power supply, it has the features of slow starting and small starting impact on the household circuit. Generally, there are two main types of VFDs that drive a three-phase motor with 220 volt household voltage.

The first type is a three-phase 220V input and 220V output VFD. When this type of VFD drives a three-phase 380V motor, it generally uses a 380V star connection for a relatively low-power motor. When using a three-phase 220V output VFD , change the connection of the motor to a delta connection. The motor can be driven normally.

The second type is the VFD whose input is 220V and output is three-phase 380V, which is suitable for slightly larger three-phase motors. The motor itself is a 380V delta connection, so the connection can no longer be modified. Therefore, the motor can no longer use the modified connection to reduce the voltage, and can only use the VFD with a three-phase 380V output. When using this kind of variable frequency drive, the problem of on-site power supply capacity is mainly considered, because the motor power is larger, the input current should also be larger. The connection method is very simple, and the motor does not require special connection changes.
