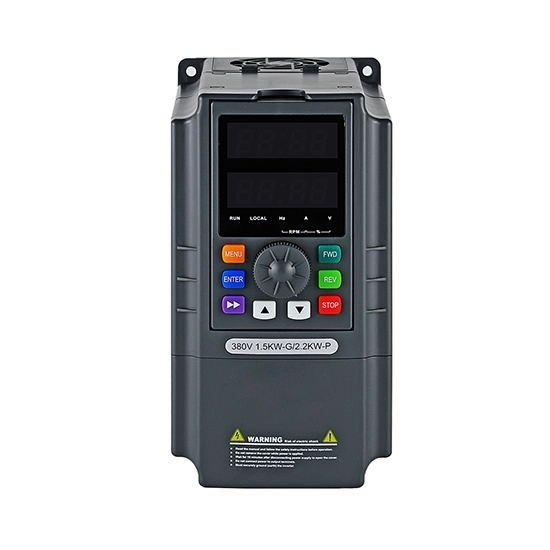

2 Hp VFD, 1-Phase 220V To 3-Phase 380V VFD

0 reviews • Write a review

from

$345.77

Ex Tax: $345.77

Stock: In Stock
Model: GK3000-CS0015
Weight: 1.00
SKU: GK3000-CS0015

Available Options

Short Description

Input Voltage (Single Phase)

Output Voltage (Three phase)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 hp (1.5 kW) VFD at low cost, with 220 volt single phase input, 380 volt, 415 volt three phase output. This variable frequency converter controlled by V/F, sensorless vector control mode.

Specification:

Basics	Model	GK3000-CS0015
	Capacity	2 hp (1.5 kW)
	Shipping weight	3 kg
	Dimension	236130176 mm
	Installation size	222*116 mm
I/O Feature	Rated current	3.8 A
	Input voltage	1 phase 220~240V AC
	Input frequency	50Hz/ 60Hz
	Output voltage (Optional)	3 phase AC 380V/ 400V/ 415V/ 440V/ 460V (Note: 440V, 460V output voltage only for the 1-phase 240V input VFD)
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F control; Sensorless vector control;
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: RDDLZ VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: 1-phase 220V input to 3-phase 380V VFD functions

The phase change function of single phase to three phase, the function of frequency conversion.
With most of the functions of a general-purpose VFD, such as soft start function (reduce the starting current, reduce the impact on the power grid, can replace the soft starter), speed control function (0 to motor rated speed infinitely adjustable), terminal start-stop forward-reverse switching function (through an external switch to control the motor start, stop, forward and reverse, can replace the AC contactor), etc..
With motor protection functions, over-current overload over-voltage over-heat short-circuit protection, etc., effectively extending the service life of the equipment.

1-phase 220 volt to 3-phase 380 volt VFD can solve the reality of the problem:

Power supply voltage mismatch problem, that is, power supply 220V, equipment power 380V.
The power supply phase mismatch problem, that is, the power supply 1-phase, equipment with electricity 3-phase.
Power supply frequency mismatch, that is, the power supply 50Hz/60Hz, equipment with electricity 0-400Hz (arbitrary setting).
