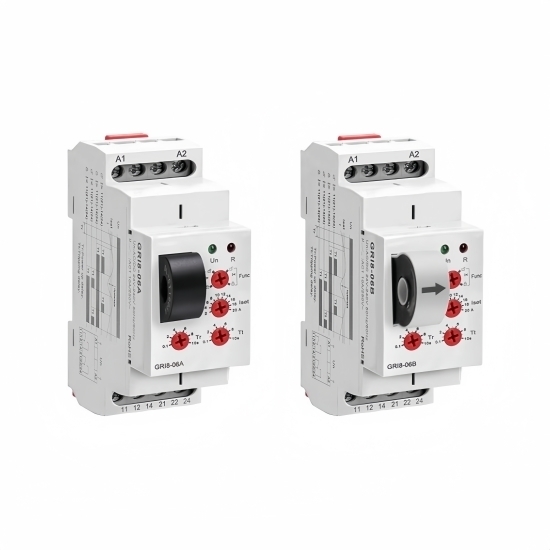

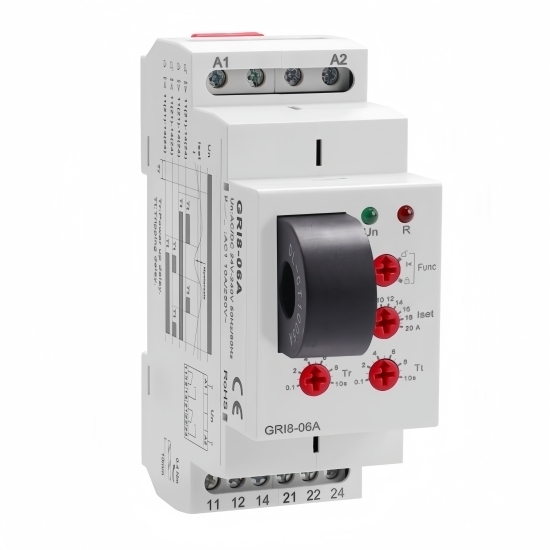

1-phase Current Monitoring Relay, 2-20A, 2×SPDT, AC/DC24V-240V

0 reviews • Write a review

from

$70.92

Ex Tax: $70.92

Stock: In Stock
Model: RDDLZ-MR-GRI806
Weight: 1.00
SKU: RDDLZ-MR-GRI806

Available Options

Short Description

Function

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The single-phase current monitoring relay equipped with LED lights, quickly understands the working status of the equipment. It can be used through overdrive/flow monitor mode, which is equipped to handle a wide input voltage range, accepting AC/DC 12-240V inputs. The current monitoring relay has fast operation speed, high accuracy, good maneuverability, and a current range of 2-20A, which have led to its widespread use in power systems, such as rail switches, heating cables, and consumption of one-phase motors, indicating current flow.

Feature

Through center design, no need to disconnect the current circuit, throughcenter installation is convenient to use.
Cover/Under current monitoring mode can be set by knob.
With AC and DC universal testing specifications optional.
An isolation current transformer is adopted, and external current transformers can be connected to expand the monitoring current range.
2 C/O output.
Universal supply AC/DC 24-240 V.
Relay status is indicated by LED.
1-MODULE, DIN rail mounting.

Model and Connotation

Technical Parameters

Model	RDDLZ-GRI8-06A	RDDLZ-GRI8-06B
Function	AC measurement	AC/DC measurement
Supply Terminals	A1-A2
Rated Supply Voltage	AC/DC 24-240V
Rated Supply Frequency	50/60Hz,0
Burden	Max 25VA
Supply Voltage Tolerance	-15%;+10%
Current Range	2A-20A
Current Frequency	AC 50Hz	AC 50Hz , DC
Setting Method	Potentiometer
Supply Indication	Green LED
Setting Accuracy	10%
Hysteresis	5%
Output	2×SPDT
Current Rating	8A/AC1
Switching Voltage	250VAC/24VDc
Min. breaking Capacity DC	500mW
Output Indication	Red LED
Mechanical Life	1×10⁷
Electrical Life (AC1)	1×10⁵
Operating Temperature	-20°℃ ~+55°℃
Storage Temperature	-35℃~+75°℃
Mounting/ DlN Rail	Din rail EN/ IEC 60715
Protection Degree	IP20
Operating Position	Any
Overvoltage Cathegory	III.
Pollution Degree	2
Max. cable Size (mm²)	1×2.5mm or 2×1.5mm 0.4·Nm
Dimensions	90mm×36mm×64mm
Weight	90g
Standards	EN 60255-1

Functions Diagram

Tr: Power-up delay.
Tt: Tripping delay.

Wiring Diagram

Monitored Current ≤ 20A

Monitored Current > 20A, Through CT Transformation

Panel Diagram

Dimensions (mm)

Tips: The working principle of a single-phase current monitoring relay

The working principle of a 1-phase current monitoring relay and the principles of electromagnetics and electromagnetic sensing. When an electric current occurs in this line, a constant electromagnetic wave is generated, producing an electric current. This sensitive electric current influences the magnetic field in the sphere and then influences the state of the contact point. Through the parameters of the rational design, precise control of the current control device can be realized. For example, by changing the number of circles, material, length, etc.
