Full Bridge Resistance Strain Gauge

0 reviews • Write a review

from

$12.89

Ex Tax: $12.89

Stock: In Stock
Model: RDDLZ-SG-EB
Weight: 1.00
SKU: RDDLZ-SG-EB

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price full bridge strain gauge for sale, resistance of 350Ω or 1000Ω can be selected, and the sensitive grid is thin, which can better reflect the deformation of the surface of the component, thus the measurement accuracy is high.

Specification

Model: RDDLZ-SG-EB
Deviation of Nominal value: ≤±0.5%
Tolerance of the Mean Value: ≤±0.1 %
Sensitivity Factor: 2.0~2.2
Dispersion of the Mean: ± 1 %
Average Heat Output Coefficient: 1 μm/m/C
Dispersion of Average Heat Output: ≤30μm/m/C
Insulation Resistance: 10^4 MΩ
Fatigue Life: ≥10^7
Operating Temperature: -30℃~150℃

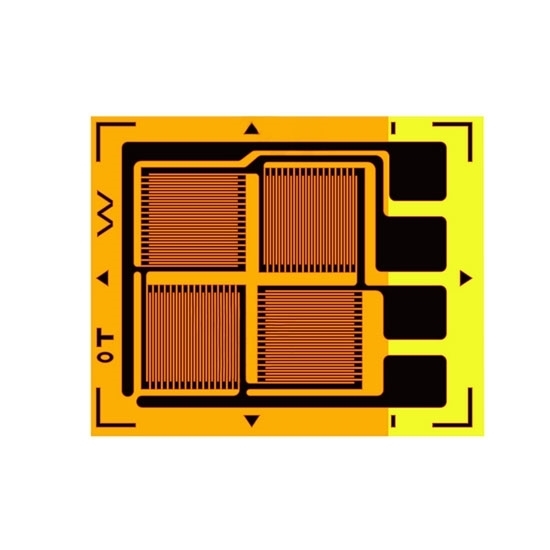

Full Bridge Resistance Strain Gauge Structure Diagram

Resistive Strain Gauge Strain Gauge Model (Unit: mm)

Model	Sensitive Grid Size	Base Size
RDDLZ-SG350-3EB	2.25×2.65	9.2×7.7
RDDLZ-SG1000-3EB	2.25×2.65	9.2×7.7

Tips: How to choose the temperature self-compensation and elastic film self-compensation of the strain gauge?

According to the working temperature of the strain gauge and the material of the specimen, as well as the measurement accuracy requirements, the temperature self-compensating or elastic film self-compensating strain gauge working at this temperature is selected. For example, for ordinary steel or spring steel, a temperature self-compensating strain gauge with a linear expansion coefficient of 11X10^-6°C should be used; for aluminum alloy materials, a temperature self-compensating strain gauge with a linear expansion coefficient of 23X10^-6°C should be used. strain gauge.
