Diaphragm Strain Gauge For Pressure Transducer

0 reviews • Write a review

from

$12.89

Ex Tax: $12.89

Stock: In Stock
Model: RDDLZ-SG-KA
Weight: 1.00
SKU: RDDLZ-SG-KA

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

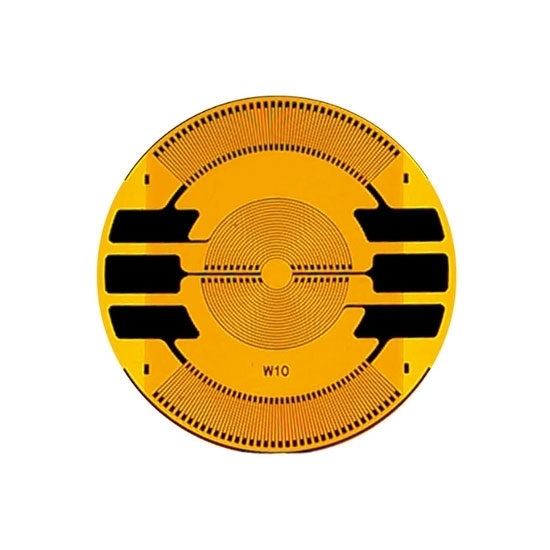

Diaphragm rosette strain gauge for pressure transducer, consisting of four parts: substrate, sensitive grid, adhesive, protective layer, widely used in various types of scales, industrial force measurement, stress analysis testing and high temperature melt pressure sensors.

Specification

Model: RDDLZ-BF-KA
Deviation of Nominal value: ≤±0.5%
Tolerance of the Mean Value: ≤±0.1 %
Sensitivity Factor: 2.0~2.2
Dispersion of the Mean: ± 1 %
Average Heat Output Coefficient: 1 μm/m/C
Dispersion of Average Heat Output: ≤30μm/m/C
Insulation Resistance: 10^4 MΩ
Fatigue Life: ≥10^7
Operating Temperature: -30℃~150℃

Diaphragm Strain Gauge Structure Diagram

Rosette Strain Gauge Model (Unit: mm)

Model	Sensitive Grid Size	Base Size
RDDLZ-BF350-6KA	Φ6.3	Φ10.2
RDDLZ-BF350-8KA	Φ7.8	Φ8.6
RDDLZ-BF350-10KA	Φ9.2	Φ10.2
RDDLZ-BF350-12KA	Φ11	Φ12
RDDLZ-BF350-15KA	Φ13.8	Φ15
RDDLZ-BF350-18KA	Φ16.6	Φ18
RDDLZ-BF1000-6KA	Φ6.1	Φ10.2

Tips: How to choose the resistance value of the strain gauge?

The resistance value of the strain gauge is selected according to the requirements of the test instrument for the resistance value of the strain gauge and the sensitivity of the measurement strain, as well as the test conditions. For example, when doing stress testing, in order to match the resistance strain gauge, the 1200 strain gauge is generally used: for the sensor, in order to improve its stability or output sensitivity, high resistance (such as 3502, 502, 10002 or even higher) is often used. , sometimes considering the signal-to-noise ratio, the power consumption is also selected with a high resistance value strain gauge.
