90 Degree Resistance Strain Gauge

0 reviews • Write a review

from

$12.89

Ex Tax: $12.89

Stock: In Stock
Model: RDDLZ-SG-FB
Weight: 1.00
SKU: RDDLZ-SG-FB

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Dual parallel strain gauges for load cells with temperature and creep compensation, precision sealed structure for long-term stability of load cells, various types of strain gages available, support for product customization.

Specification

Model: RDDLZ-SG-FB
Deviation of Nominal value: ≤±0.5%
Tolerance of the Mean Value: ≤±0.1 %
Sensitivity Factor: 2.0~2.2
Dispersion of the Mean: ± 1 %
Average Heat Output Coefficient: 1 μm/m/C
Dispersion of Average Heat Output: ≤30μm/m/C
Insulation Resistance: 10^4 MΩ
Fatigue Life: ≥10^7
Operating Temperature: -30℃~150℃

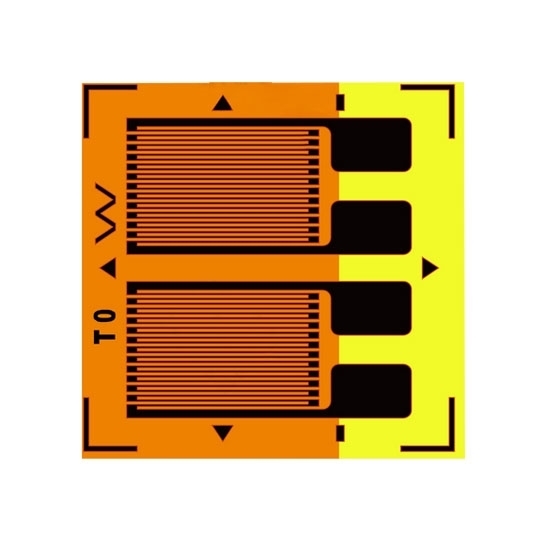

90 Degree Resistance Strain Gauge Structure Diagram

Half Bridge Strain Gauge Model (Unit: mm)

Model	Sensitive Grid Size	Base Size
RDDLZ-SG350-2FB	2.0×3.2	5.7×7.7
RDDLZ-SG350-3FB	3.1×3.1	7.2×7.6
RDDLZ-SG350-4FB	4.0×2.7	8.1×6.9
RDDLZ-SG350-6FB	6.0×2.7	10.3×6.9
RDDLZ-SG1000-2FB	2.0×3.2	5.7×7.7
RDDLZ-SG1000-3FB	3.0×3.3	7.1×7.8

Tips: How to choose the type of strain gauge?

The type of strain gauge is selected according to the purpose of strain measurement, the material of the test piece and its stress state as well as the requirements of measurement accuracy. For example, if the strain gauge is used as a sensitive element of a force measurement sensor at room temperature, the foil strain gauge with zero drift and minimal creep is used; if the output sensitivity of the sensor is required to be large, the semiconductor strain gauge is used; if it is used for dynamic strain measurement, the foil strain gauge is usually chosen.
