1 Hp NEMA AC Induction Motor, Three Phase 230/460V, ODP/TEFC

0 reviews • Write a review

from

$676.43

Ex Tax: $676.43

Stock: In Stock
Model: RDDLZ-IM-RT12
Weight: 1.00
SKU: RDDLZ-IM-RT12

Available Options

Short Description

Enclosure Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

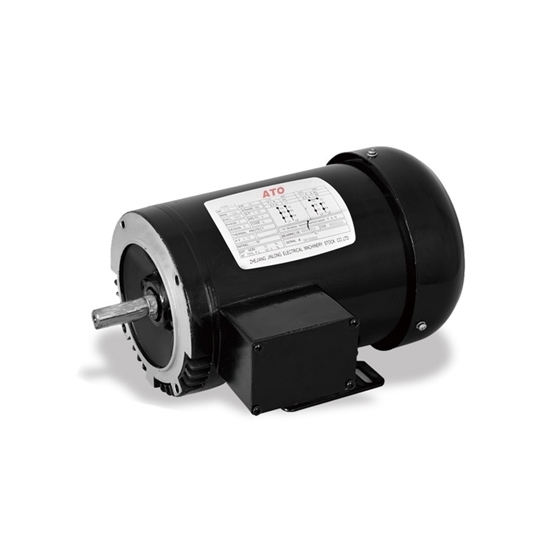

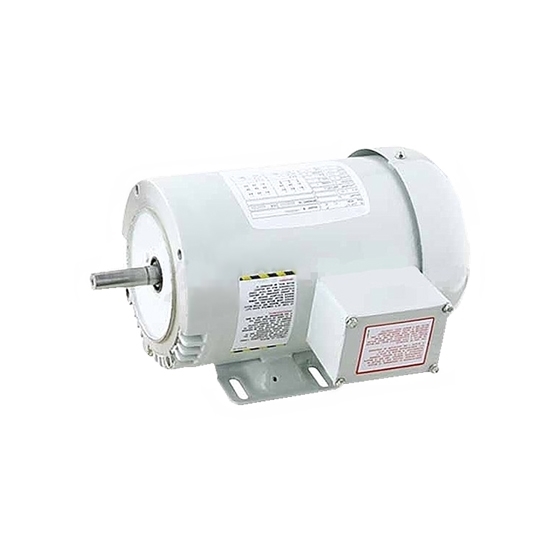

1 hp 3 phase AC Induction Motor Features

1 horsepower 2 pole 1.25 service factor 143TC frame size AC electric motor
3 phase small AC general purpose asynchronous motor running at 60Hz 230/460V AC
Has aluminum windings for conductivity and energy efficiency and has a operating speed of 3450 rpm
Available with open drip proof (ODP) enclosure motor and totally enclosed fan cooled (TEFC) enclosure motor
Double shielded bearings and Class F insulation

1 hp 3 phase AC Induction Motor Specification

Basics	Model	RDDLZRT12D11	RDDLZRT12T11
	Enclosure	ODP	TEFC
	Type	General Purpose Asynchronous Motor
	Item Weight	39 Ibs
	Motor Length	14.6 inch
	Frame	143TC Frame
	Design	NEMA Design B
	Certification	CE, UL
	Motor Material	Roll Steel
Technical Parameters	Service Factor	1.15	1.25
	Horsepower	1 hp
	Rated Frequency	60 Hz
	Phase	Three Phase
	Pole	2 pole
	Voltage	230/460V AC
	Full Load Amps	3.13/1.57A
	Speed	3450 RPM
	Efficiency	77%
	Duty	Continuous
	Isulation Class	Class F
	Protection Class	IP54/ IP55
	Mounting Method	C Face, Footed
Environment	Ambient temperature	-15℃≤θ≤40℃
	Altitude	Altitude should be lower than 1000 meters above sea level

1 hp 3 phase AC Induction Motor Dimension

Unit: inch

Frame Size	AB	BA	Max A	Max B	Max BB	Max BD	C	D	E	2F	H	N-W	O	P	R	S	U	Min ES	Min AA	AH	BF	BC	AJ	AK	Min V
143TC	5.6	2.75	7	6.18	0.16	6.5	14.6	3.5	2.75	4	0.34	2.25	6.7	7.08	0.771	0.188	0.875	1.41	3/4	2.12	1/2-13	+0.12	5.875	4.5	2

NEMA AC Induction Motor Connection Diagram

Details

Tips: Induction motor doesn’t revolve, why and how to do?

The power source is not connected.
If the power source is not connected or bad contact, the motor will not revolve. At this moment, the electrician must inspect the switch, fuse, various contacts and connection wires. Thus, the fault will be gradually troubleshooting for maintenance.
The fuse is blown out when starting.
Find the reason for the fuse blown, troubleshoot the fault and then fit the proper fuse for the motor.
The setting current of the over-current relay is too low.
For this problem, just regulate higher properly.
The load is too large or the transmission mechanism blocks.
In this case, choose an induction motor with bigger capacity or relieve the load, and also check the condition of the transmission mechanism.
The stator or rotor winding is in open circuit.
Open the terminal box and check if the motor winding is broken (leads breakage) with the Ohm gear of the multi-meter. If any open circuit occurs, the resistance value might be abnormal. It is required to open the motor to make further inspection and connect the breakage point.
